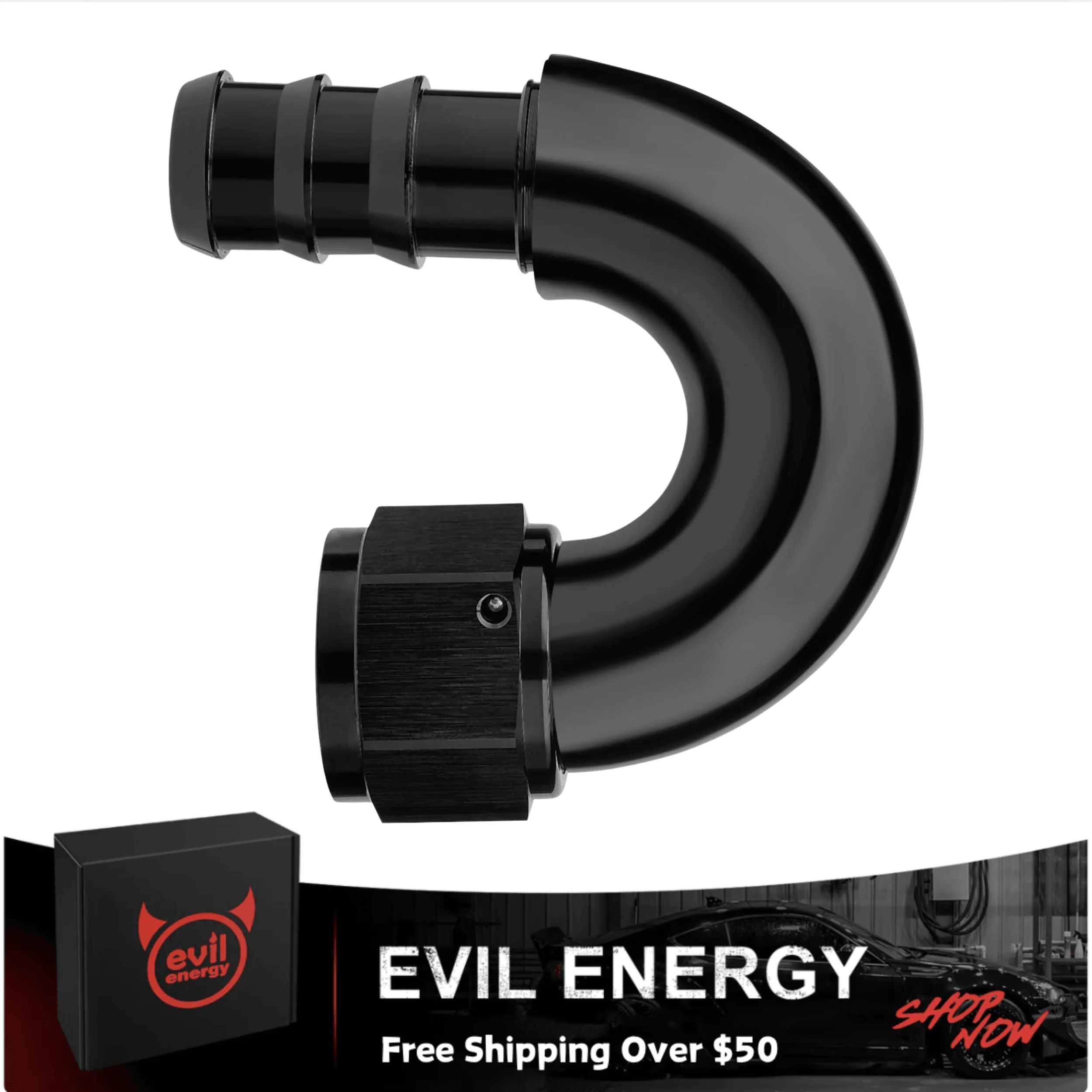

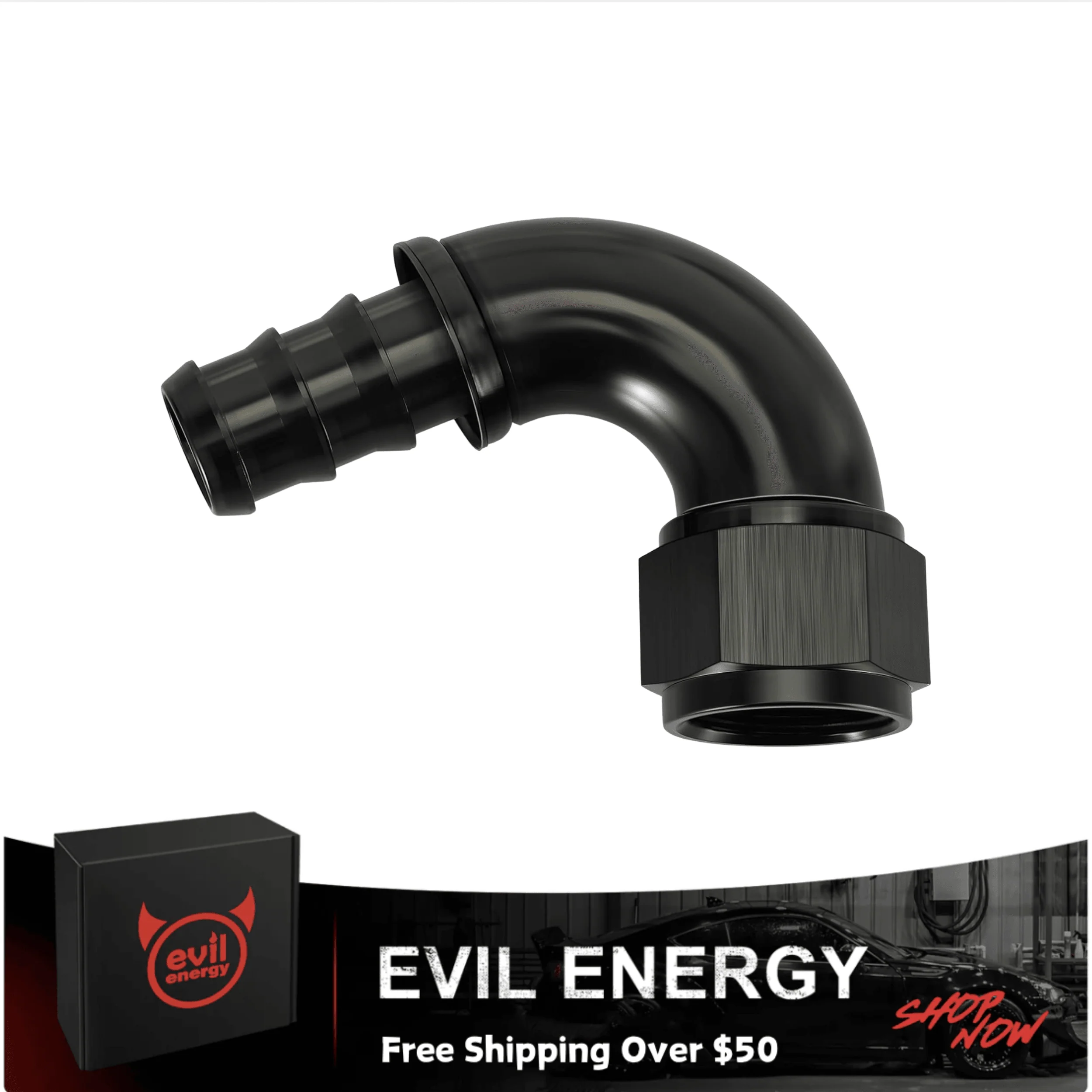

EVIL ENERGY Push Lock Fitting One Piece Full Flow Hose End (4/6/8/10/12AN)

Product Specifications

Brand	EVIL ENERGY

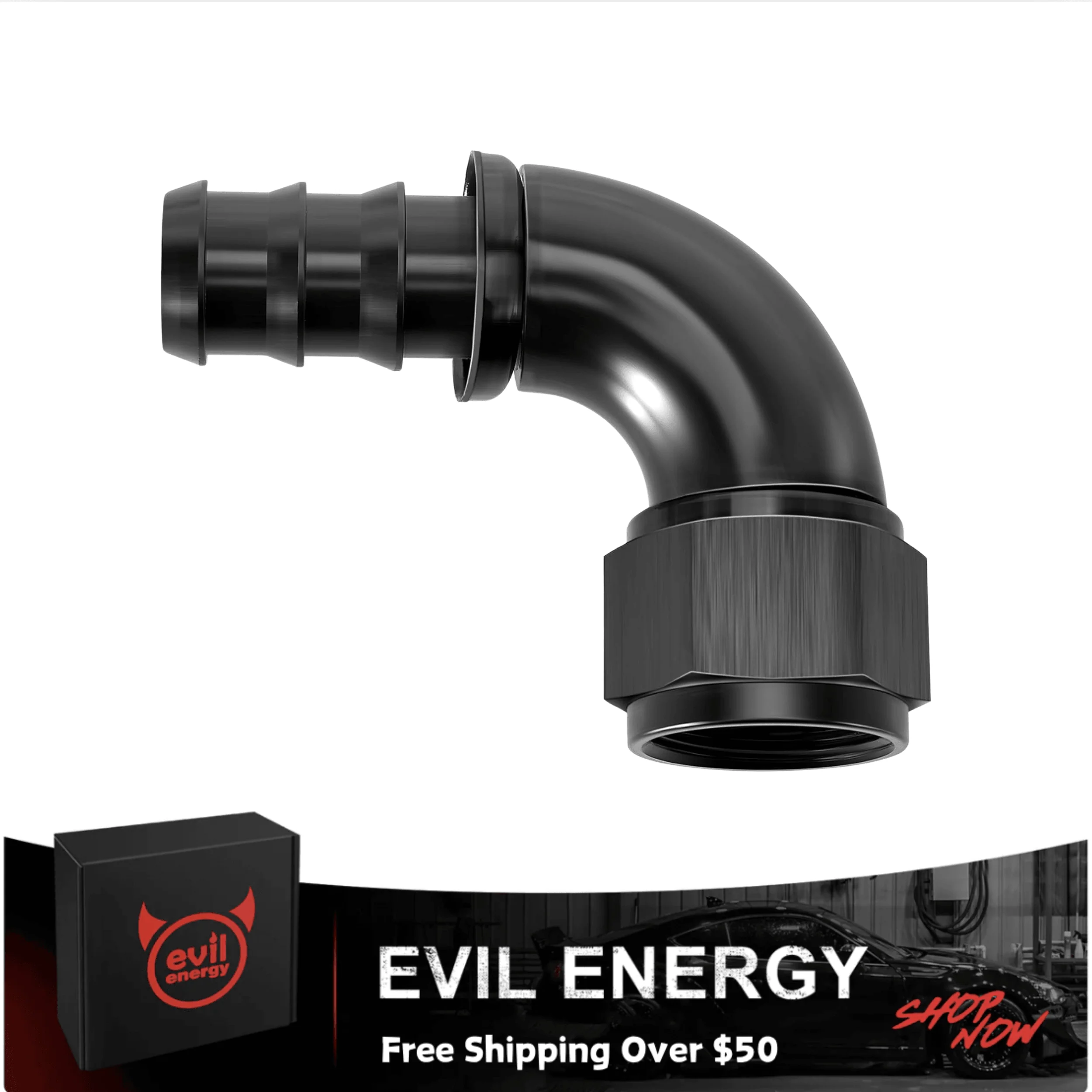

Product Type	90° Push Lock Hose Fitting, One-Piece Full Flow

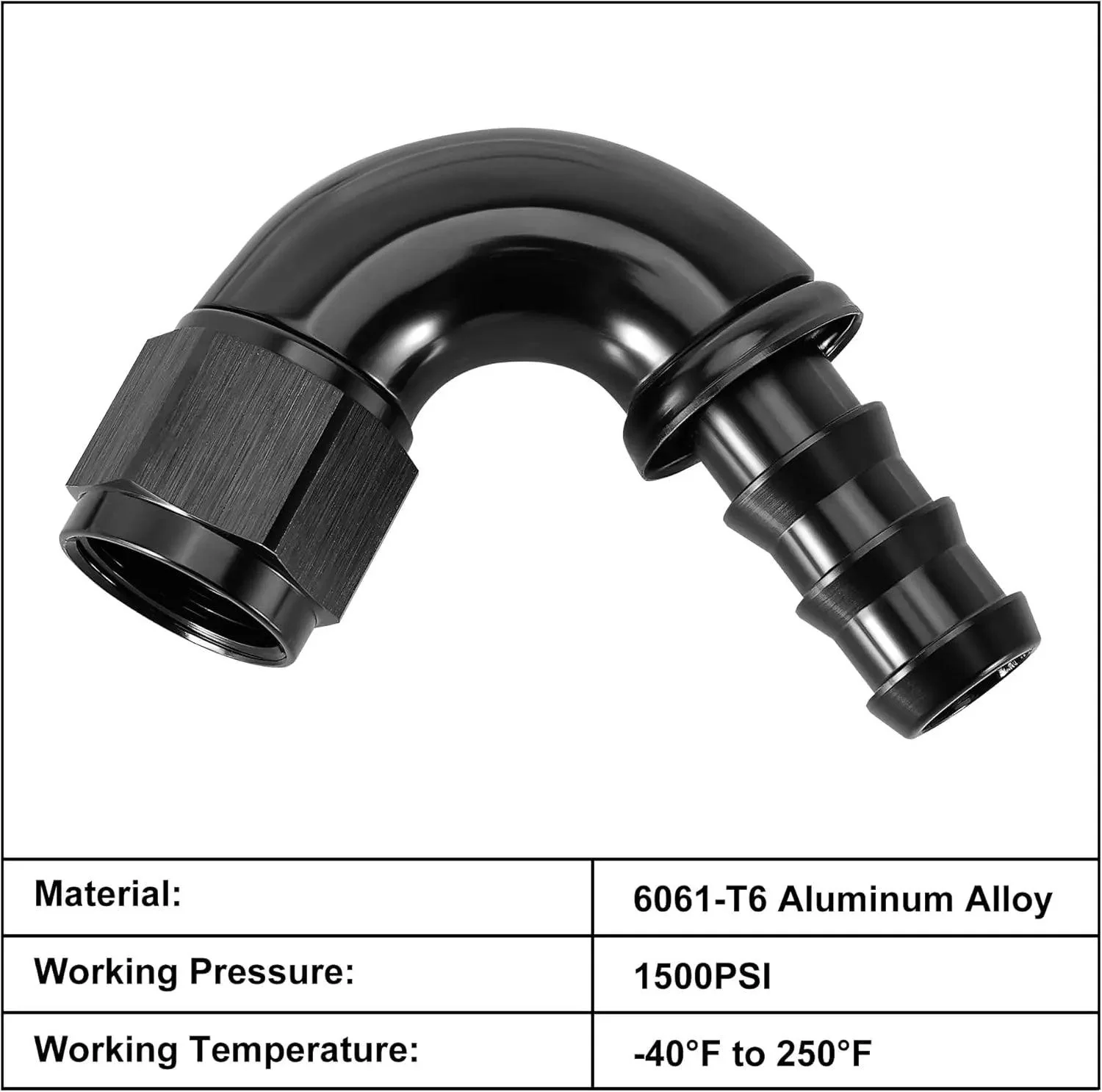

Material	6061-T6 Aluminum Alloy
Finish	Black Anodized

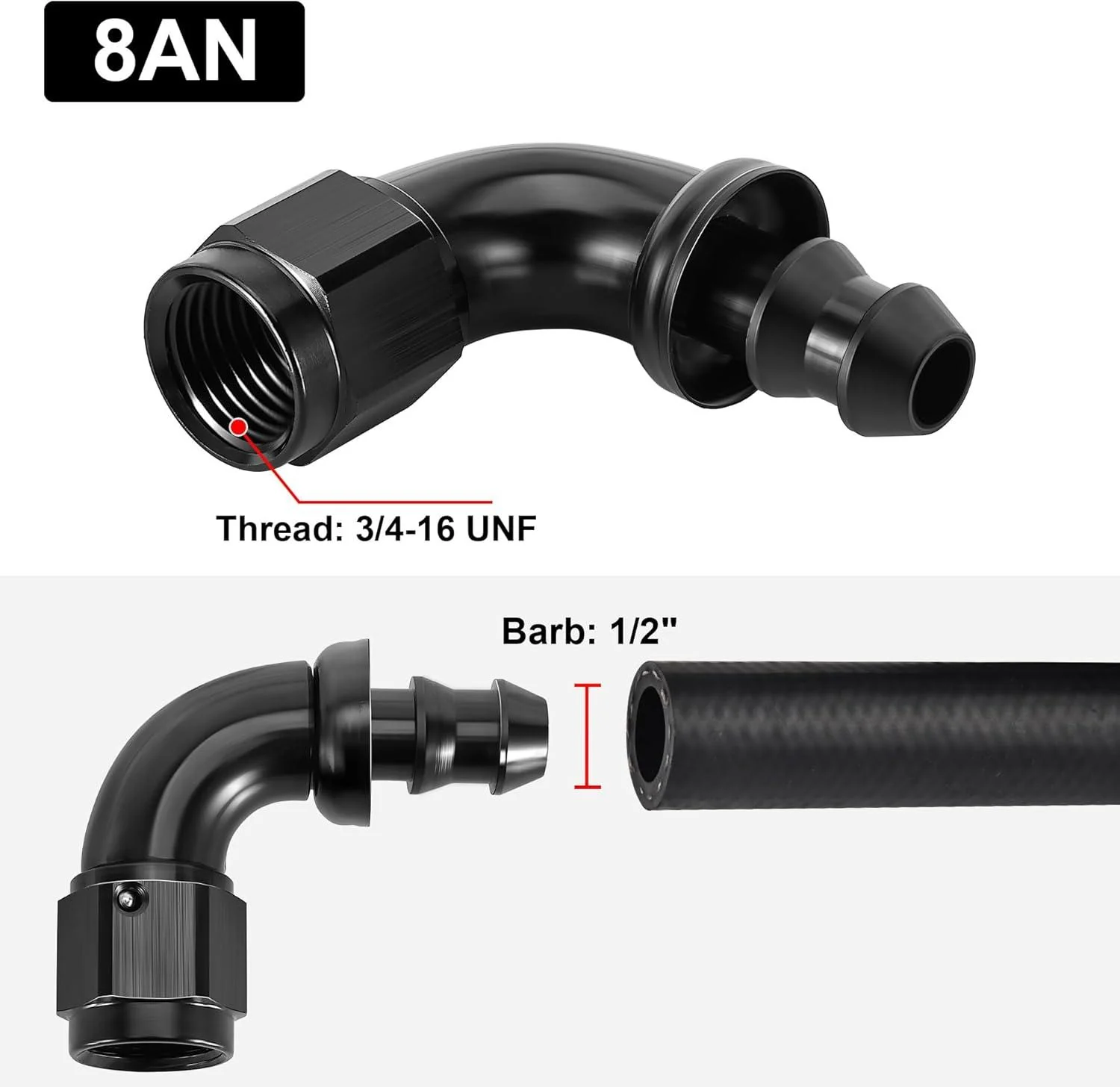

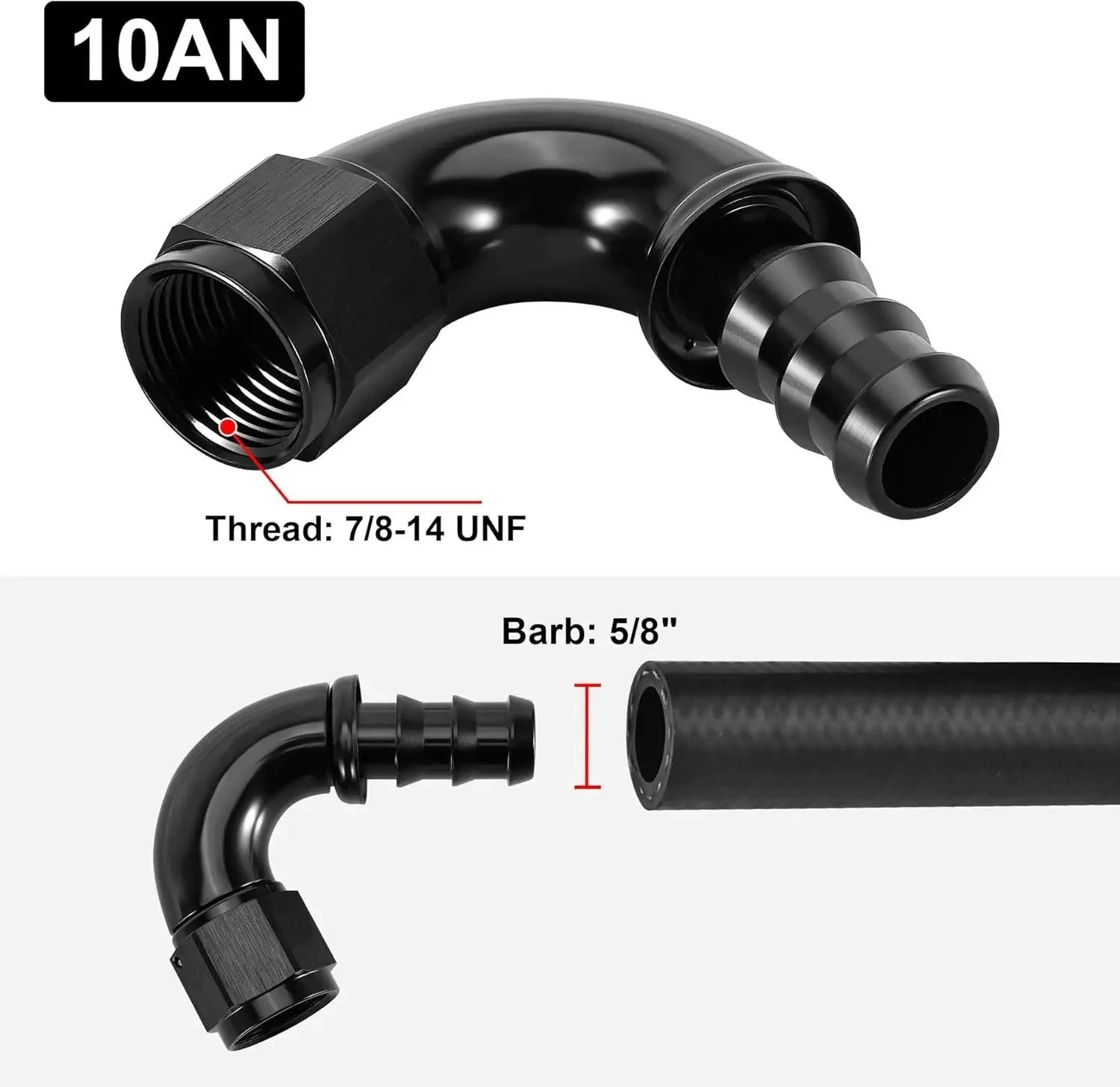

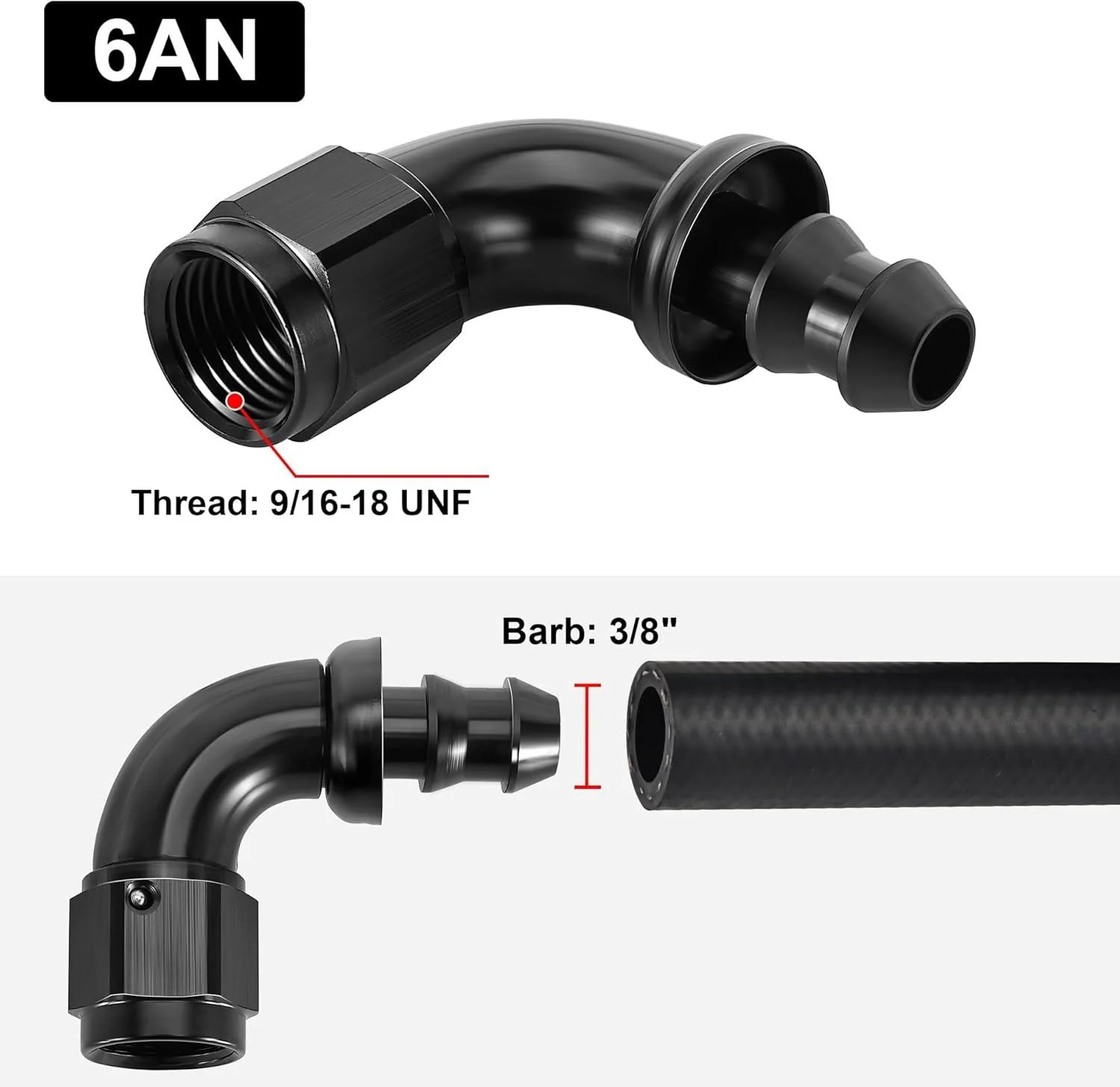

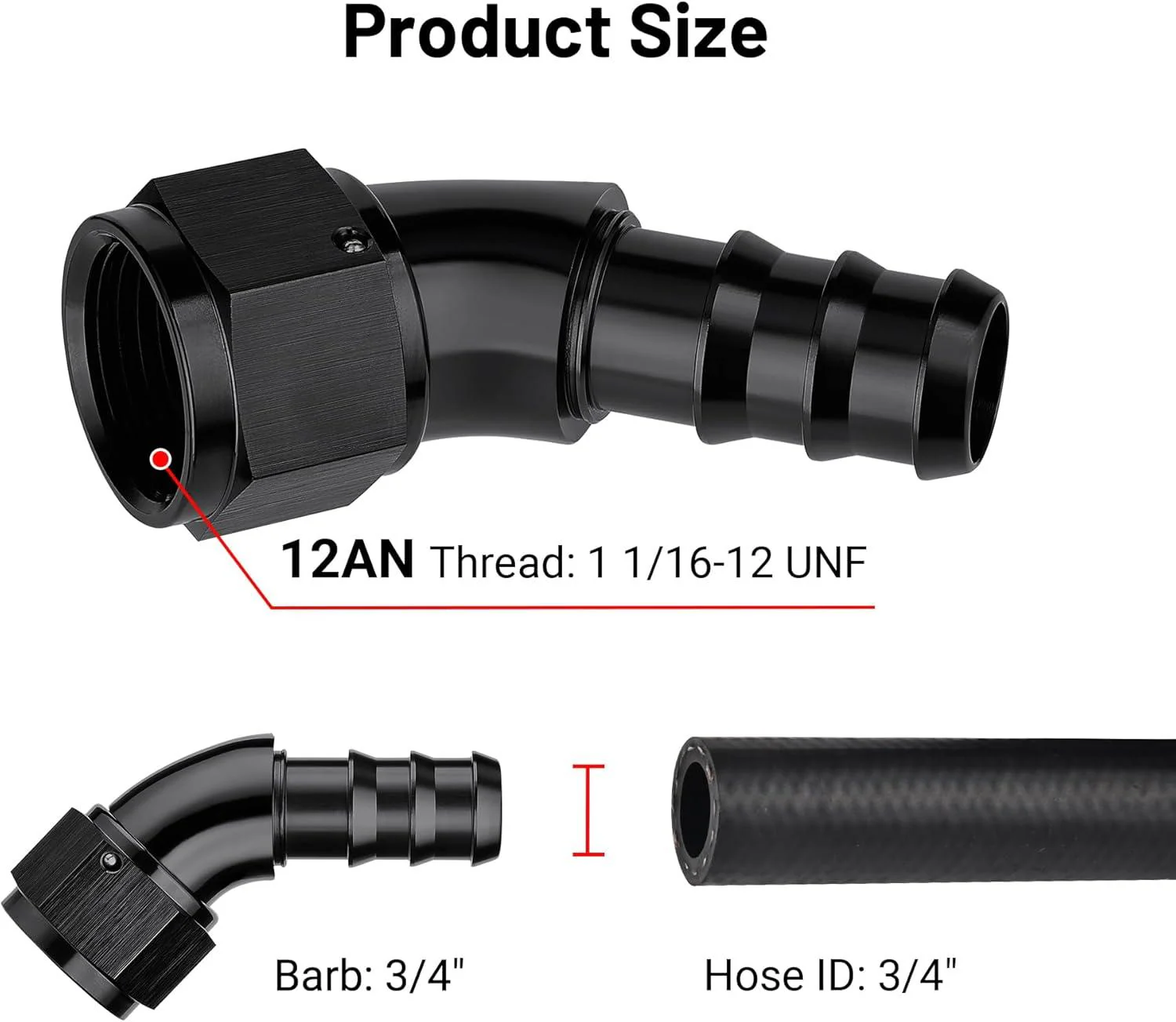

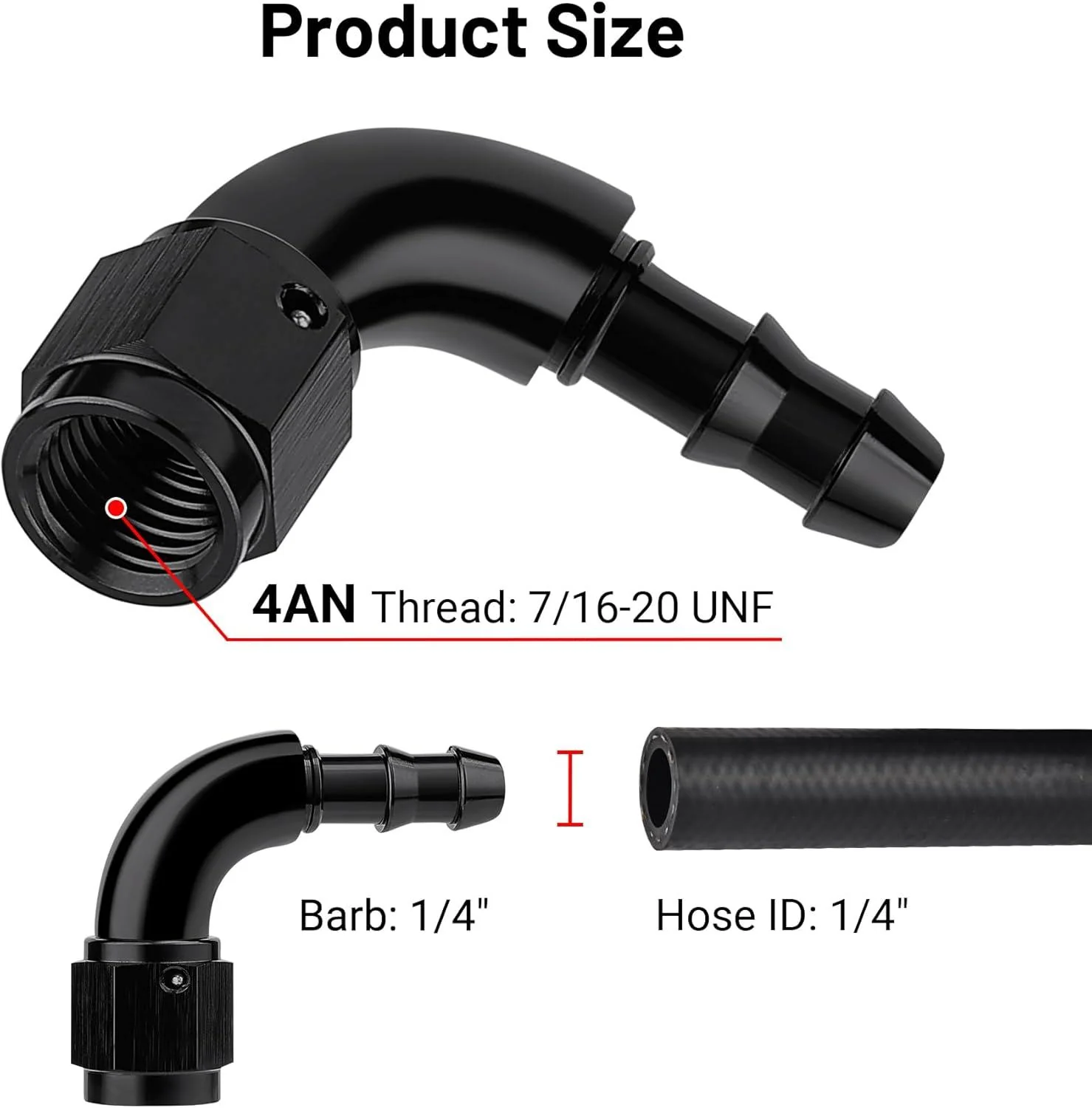

Sizes & Threads	4AN: 1/4" Barb, 7/16-20 UNF 6AN: 3/8" Barb, 9/16-18 UNF 8AN: 1/2" Barb, 3/4-16 UNF 10AN: 5/8" Barb, 7/8-14 UNF 12AN: 3/4" Barb, 1-1/16-12 UNF
Max Working Pressure	1500 PSI
Temperature Range	-40℉ ~ 250℉
Design Upgrade	One-piece full flow with thickened curvature for smoother flow

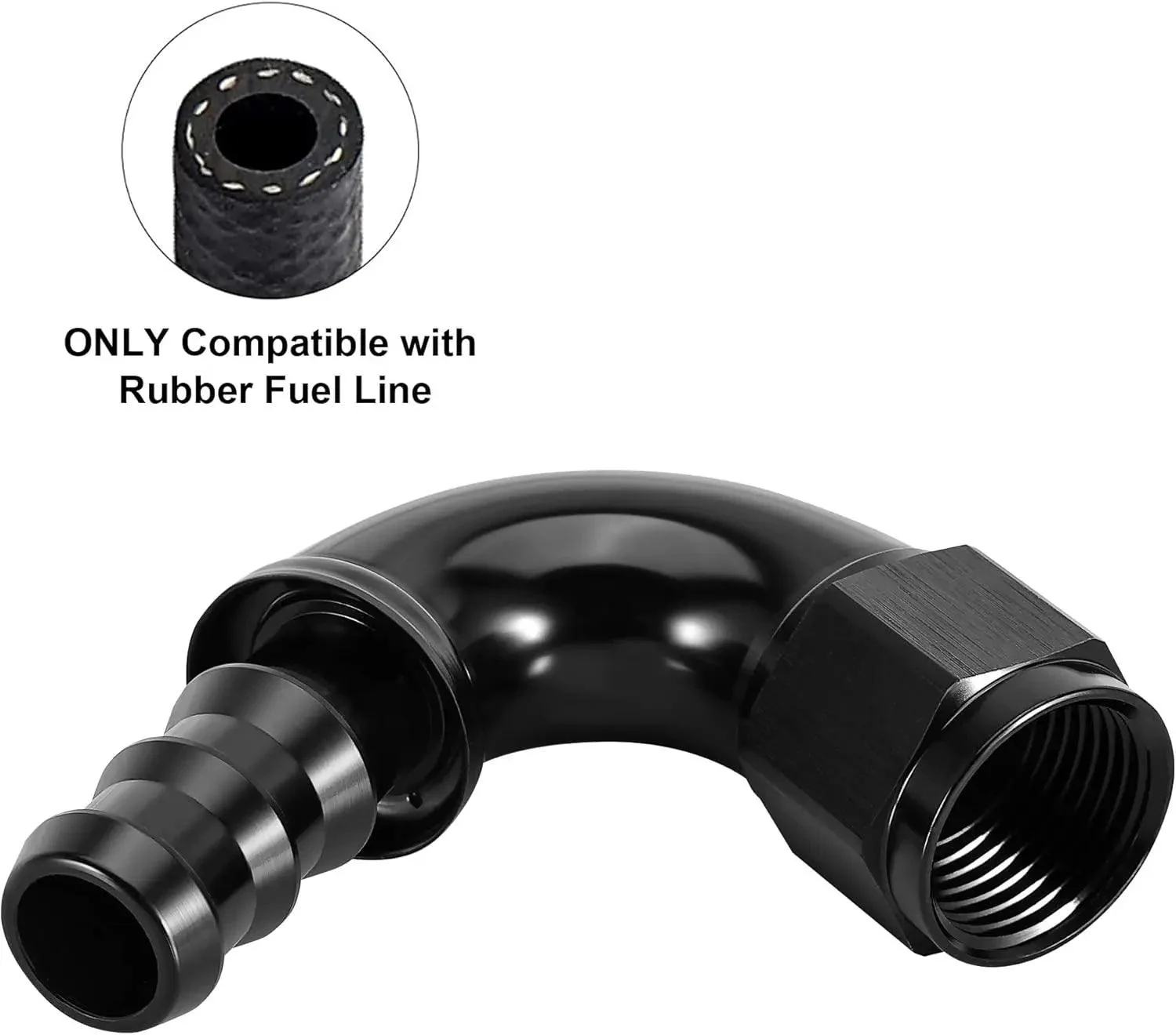

Application	For rubber fuel lines only

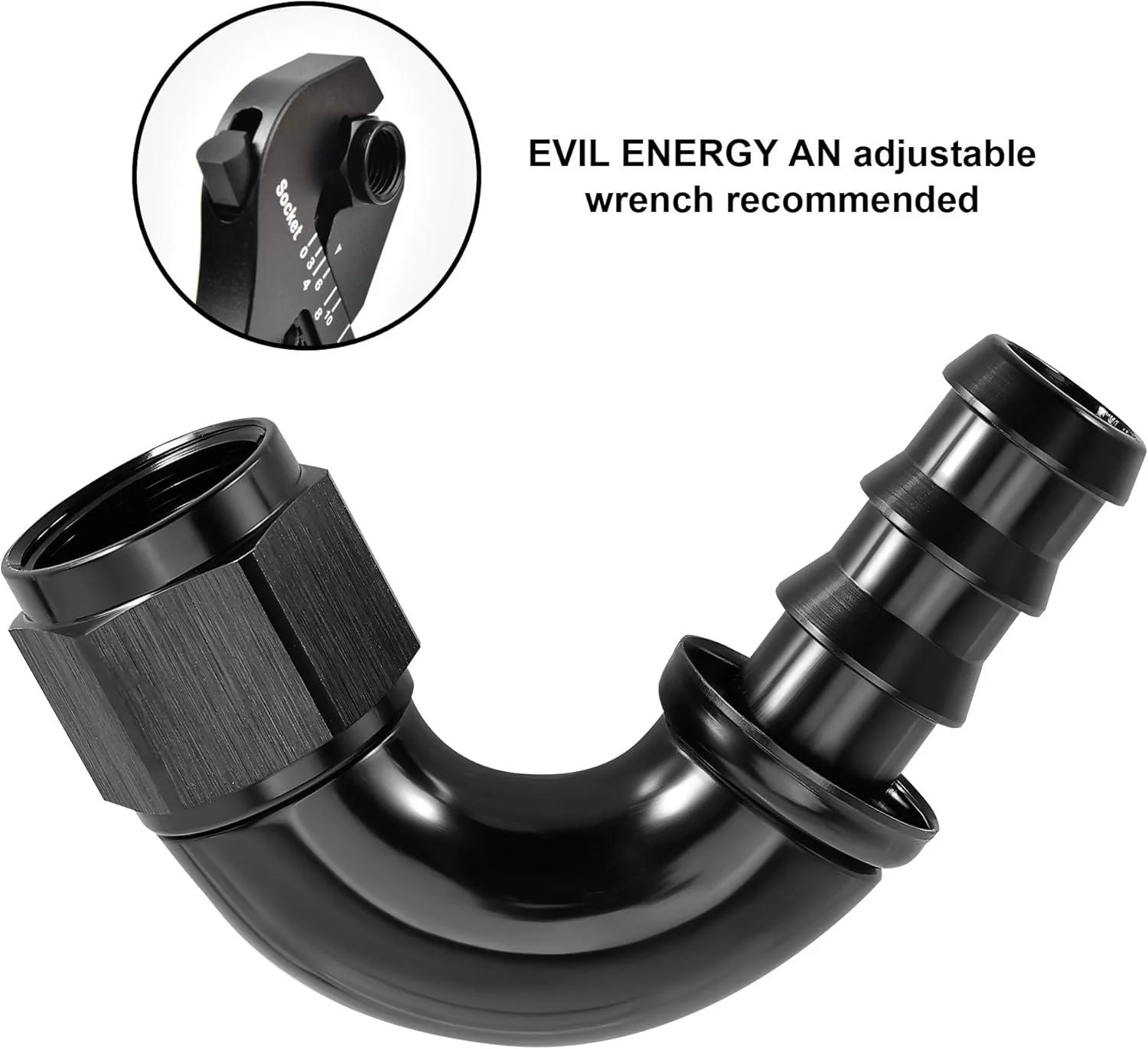

Installation	Push-lock barb; use clamps for added sealing

Product Description

The EVIL ENERGY 90° Push Lock Hose Fitting is designed for high-performance fuel systems where smooth flow and durability matter most. Its one-piece full flow construction with thickened curvature minimizes restrictions, ensuring reliable fuel delivery even under high pressure.

Built from lightweight 6061-T6 aluminum alloy with a corrosion-resistant black anodized finish, this fitting withstands up to 1500 PSI and operates in extreme temperatures from -40℉ to 250℉.

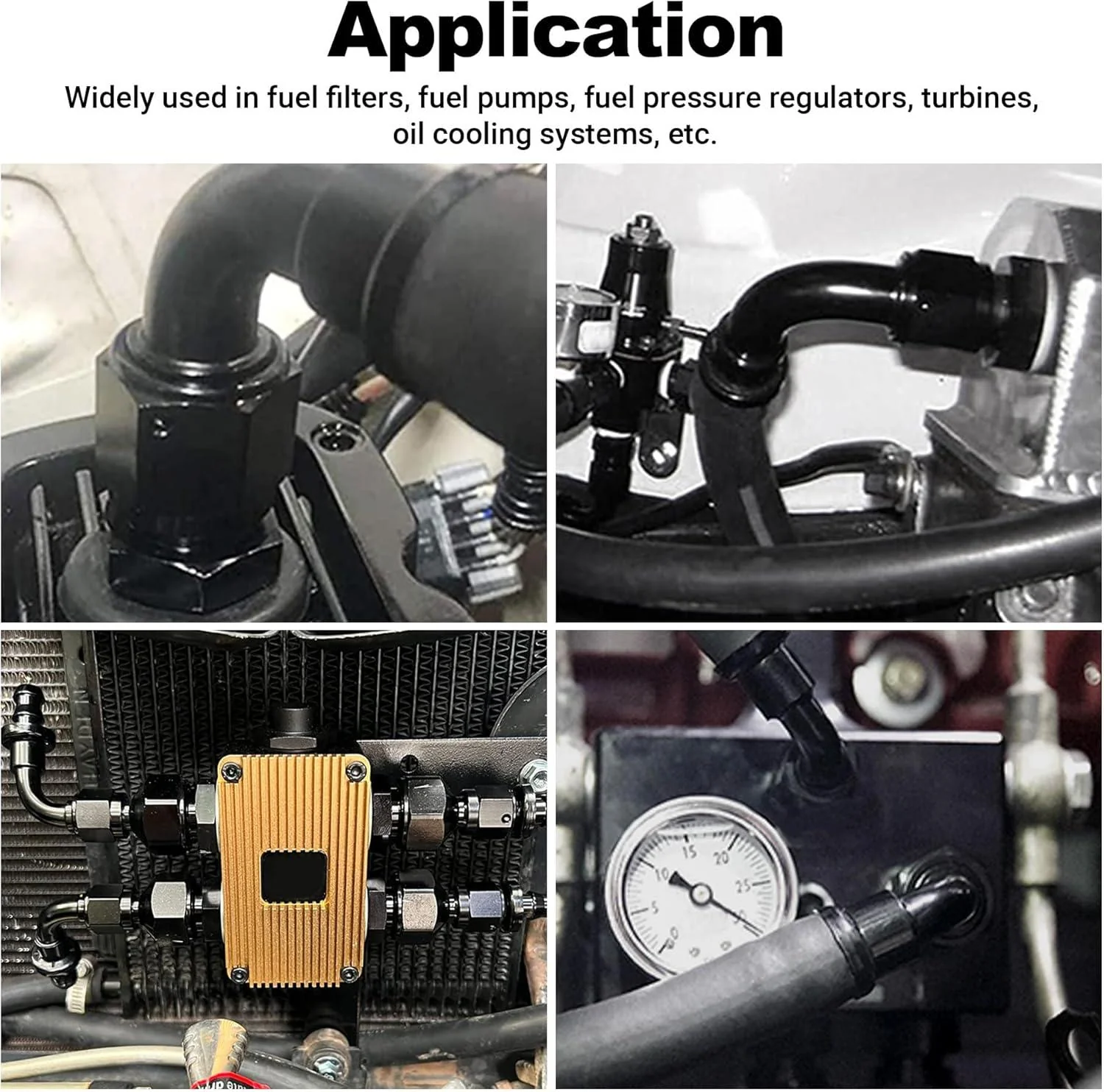

The push lock barb design allows quick installation on rubber fuel lines—just push and secure, with clamps recommended for maximum sealing. Perfect for street cars, racing builds, and custom fuel system upgrades, this fitting delivers professional-grade reliability and performance.
