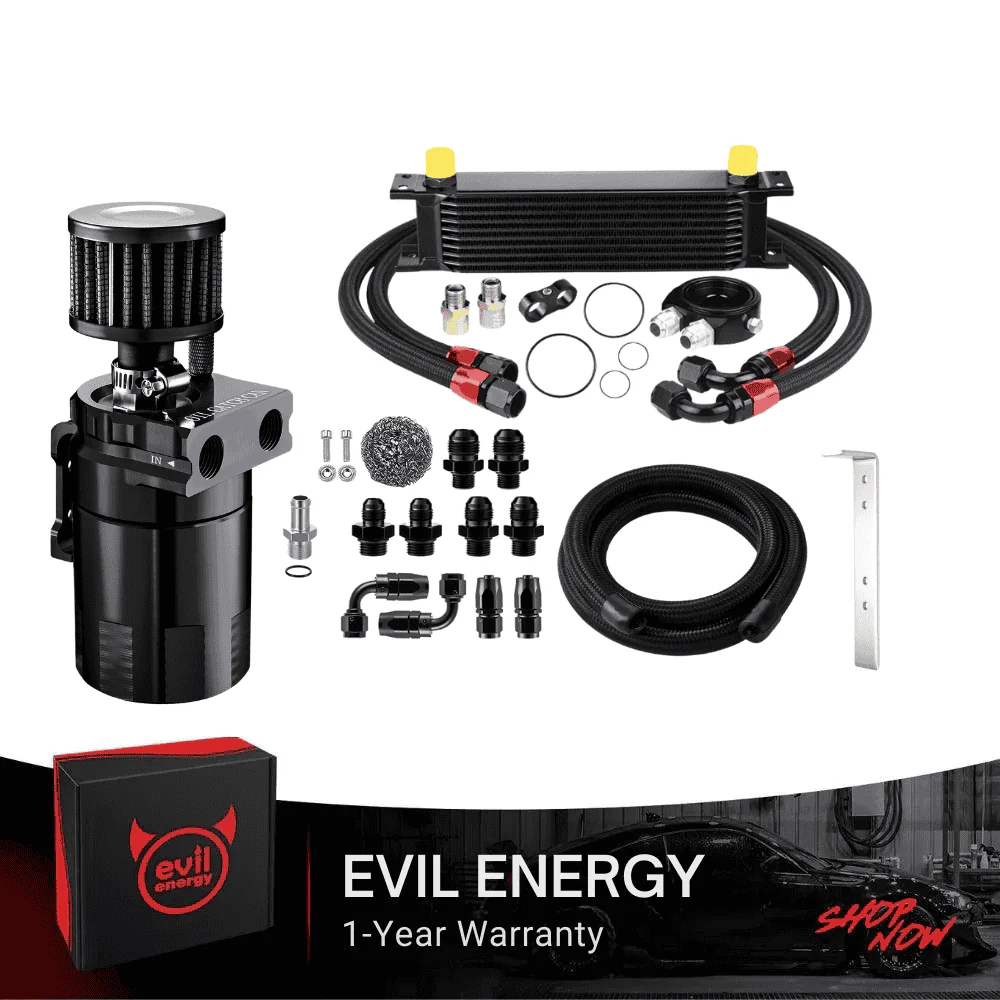

10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits

---!@!start!@!---Specifications---!@!end!@!---

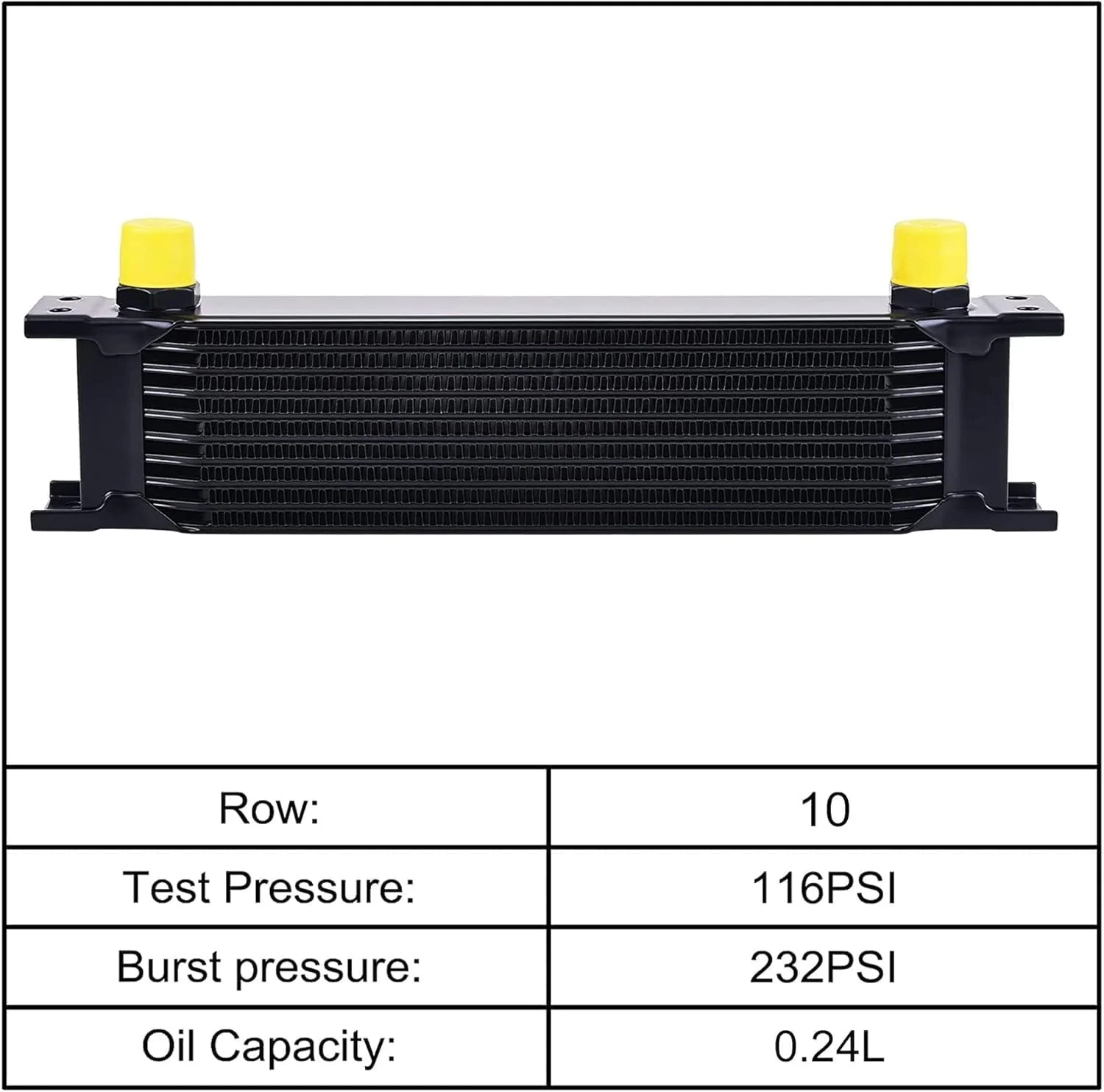

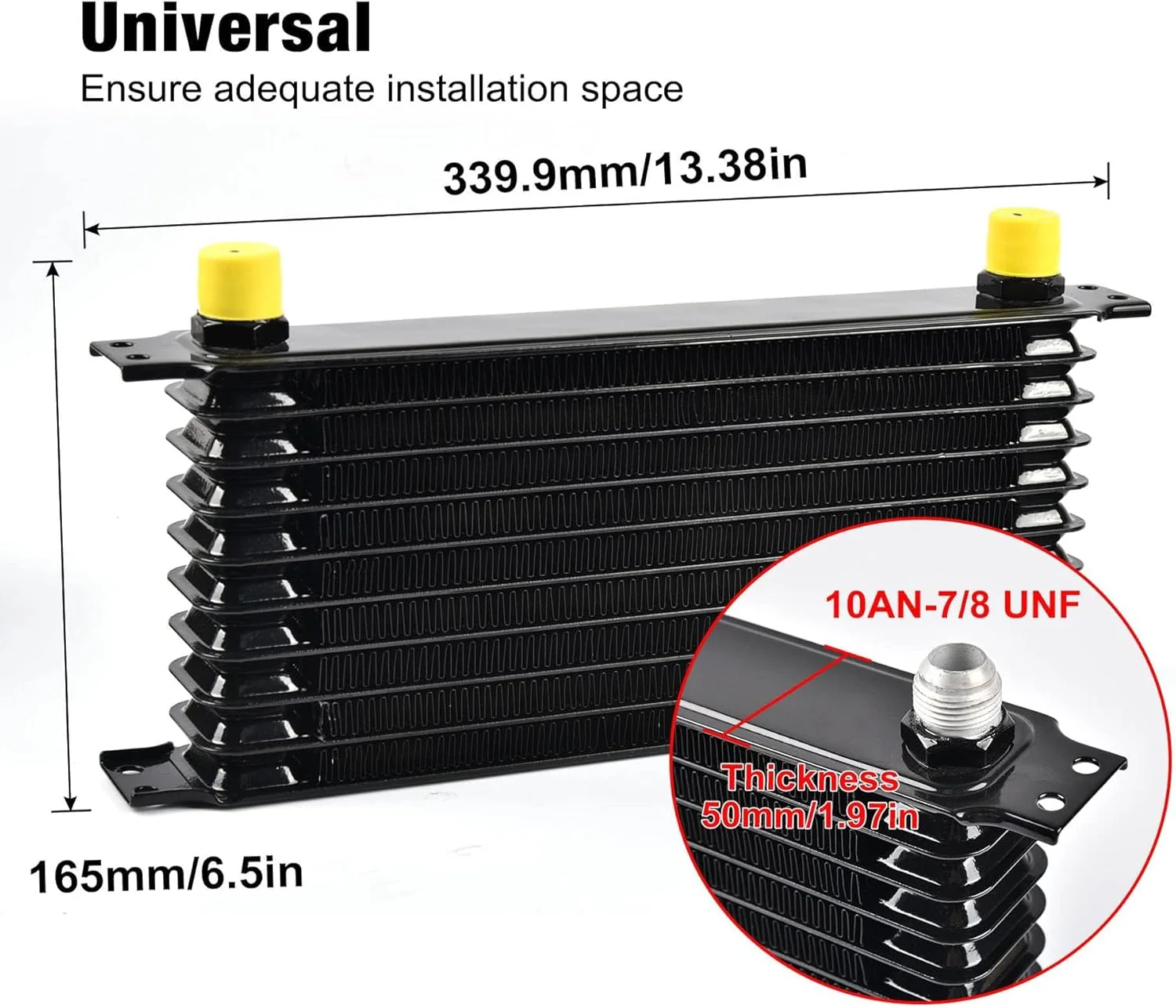

10ROW  Oil Cooler

Brand	EVIL ENERGY
Material	Aluminum alloy (lightweight, corrosion-resistant, high heat dissipation)
Oil Capacity	330mm:0.24 L 340mm:0.55L

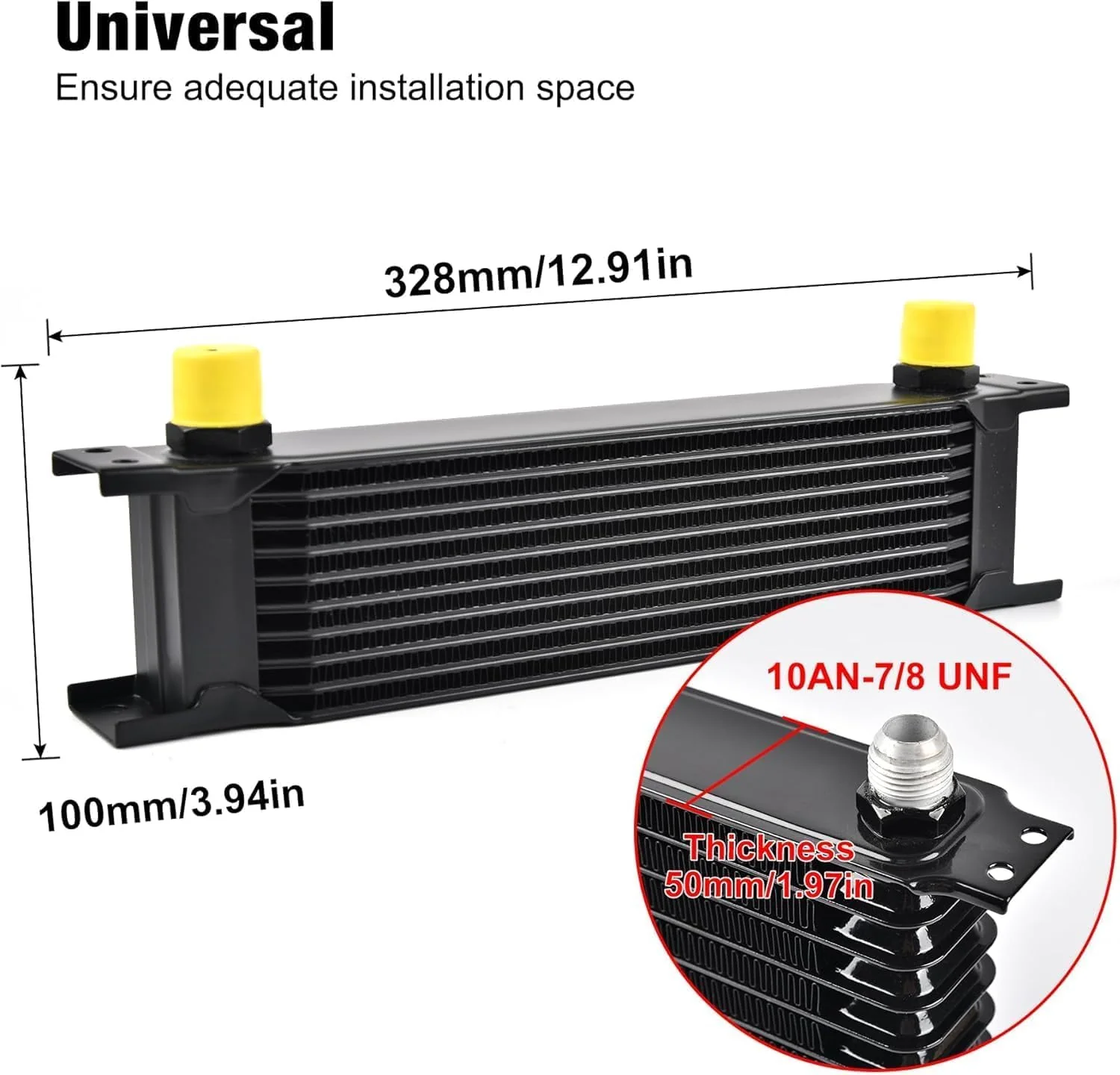

Size (L×W×H)	330mm：12.91" × 3.94" × 1.97" 340mm：13.3"× 6.5"×1.97"
Test Pressure	116 PSI (stable under normal working conditions)
Burst Pressure	232 PSI (high safety margin, anti-leakage)

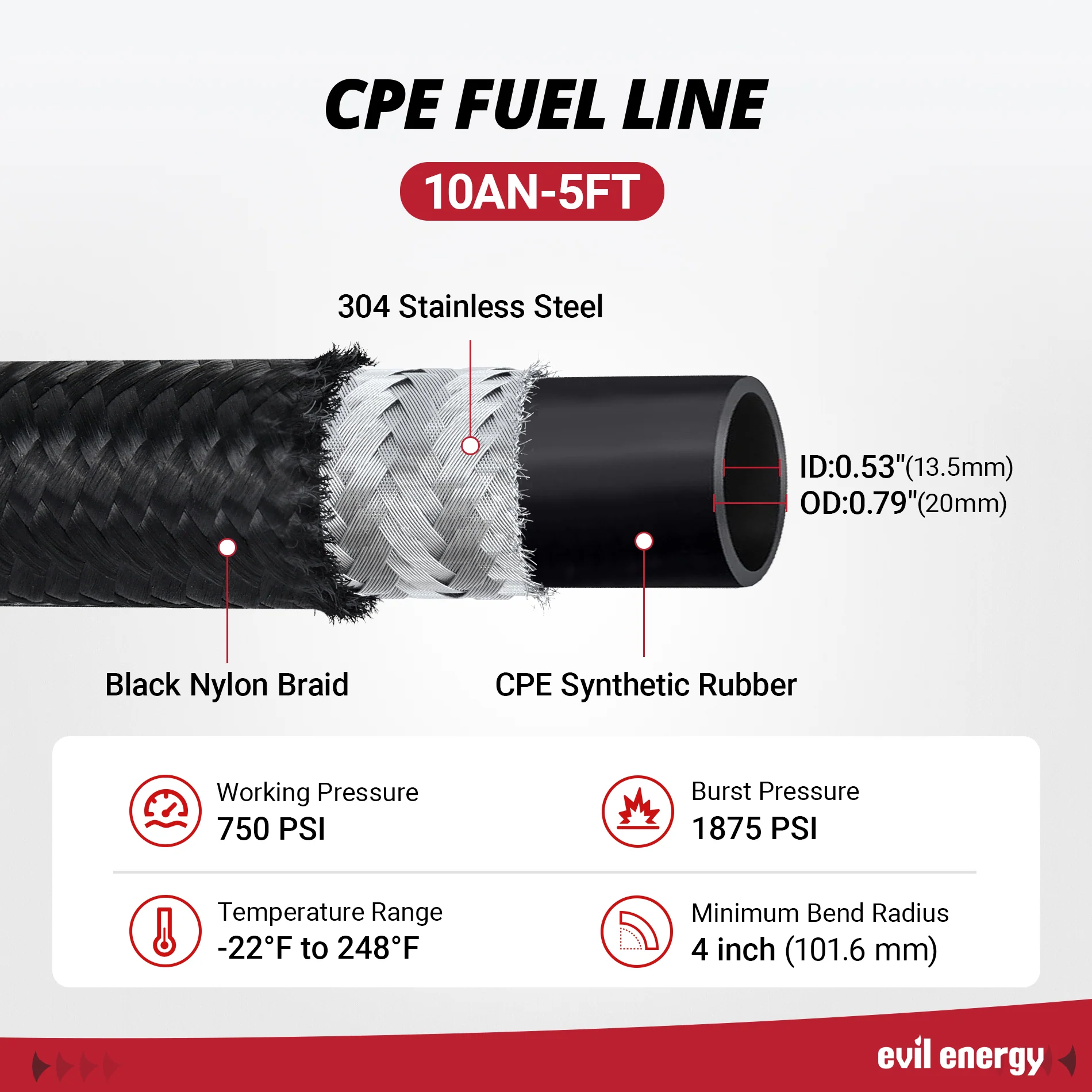

Hose Material	Nylon braid with CPE inner layer (wear-resistant, high-pressure tolerant)
Hose Length	1 × 3.3 FT + 1 × 3.9 FT (flexible for different installations)
Hose Working Pressure	500 PSI (supports high-intensity oil circulation)
Hose Temperature Range	-40℉ to 257℉ (adapts to extreme weather/conditions)
Installation	Easy to install; mount in well-ventilated location; instructions included
Condition	New (100% brand-new components)

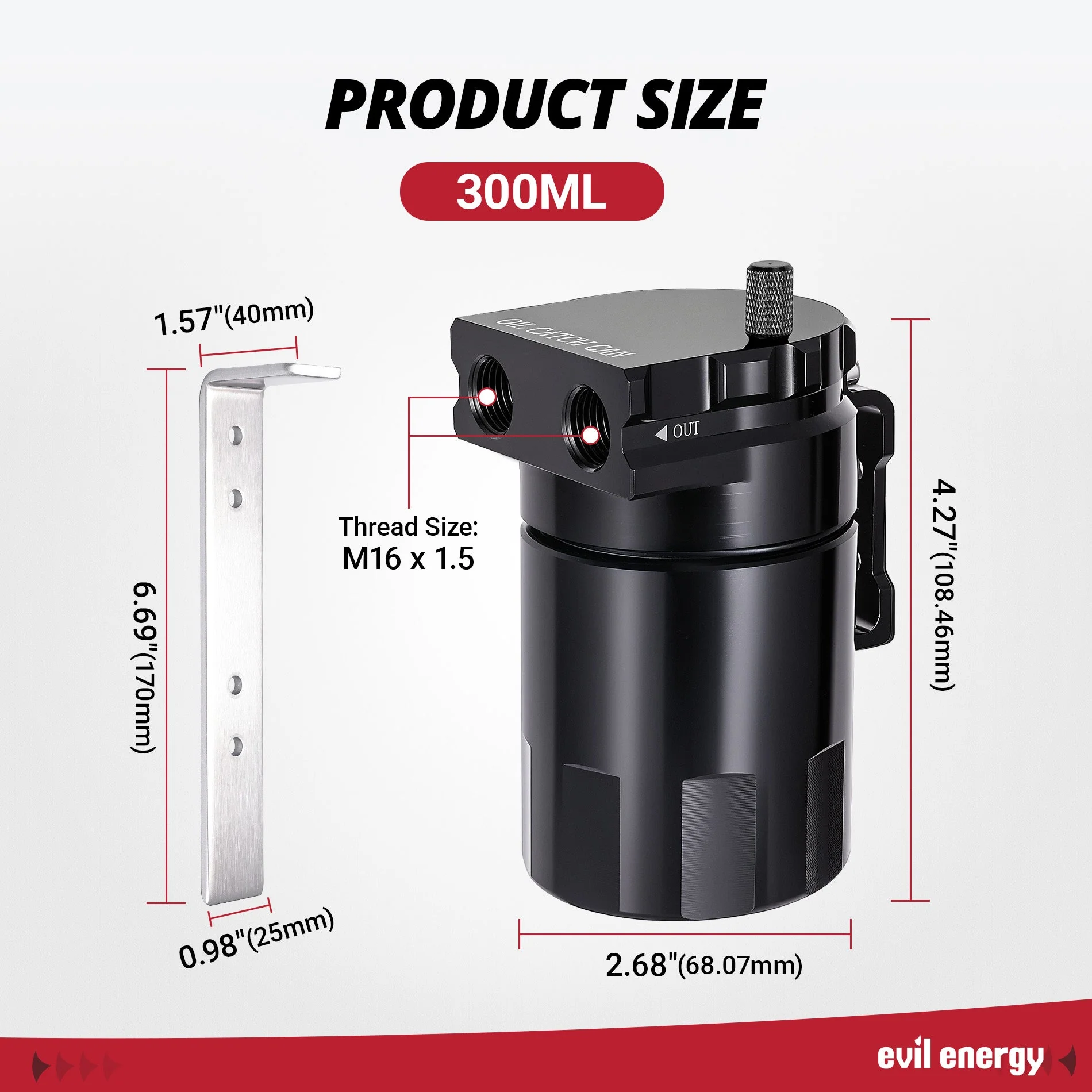

300ML Baffled Oil Catch Can

Parameter	Common Details (Both Variants)
Brand	EVIL ENERGY
Material	Aluminum (black anodized, corrosion-resistant)
Capacity	300ml
Filtration System	Removable baffle + steel ball filter media + steel wool (traps oil vapor/moisture)
Port Design	2 ports (dual-inlet/outlet for flexible routing)

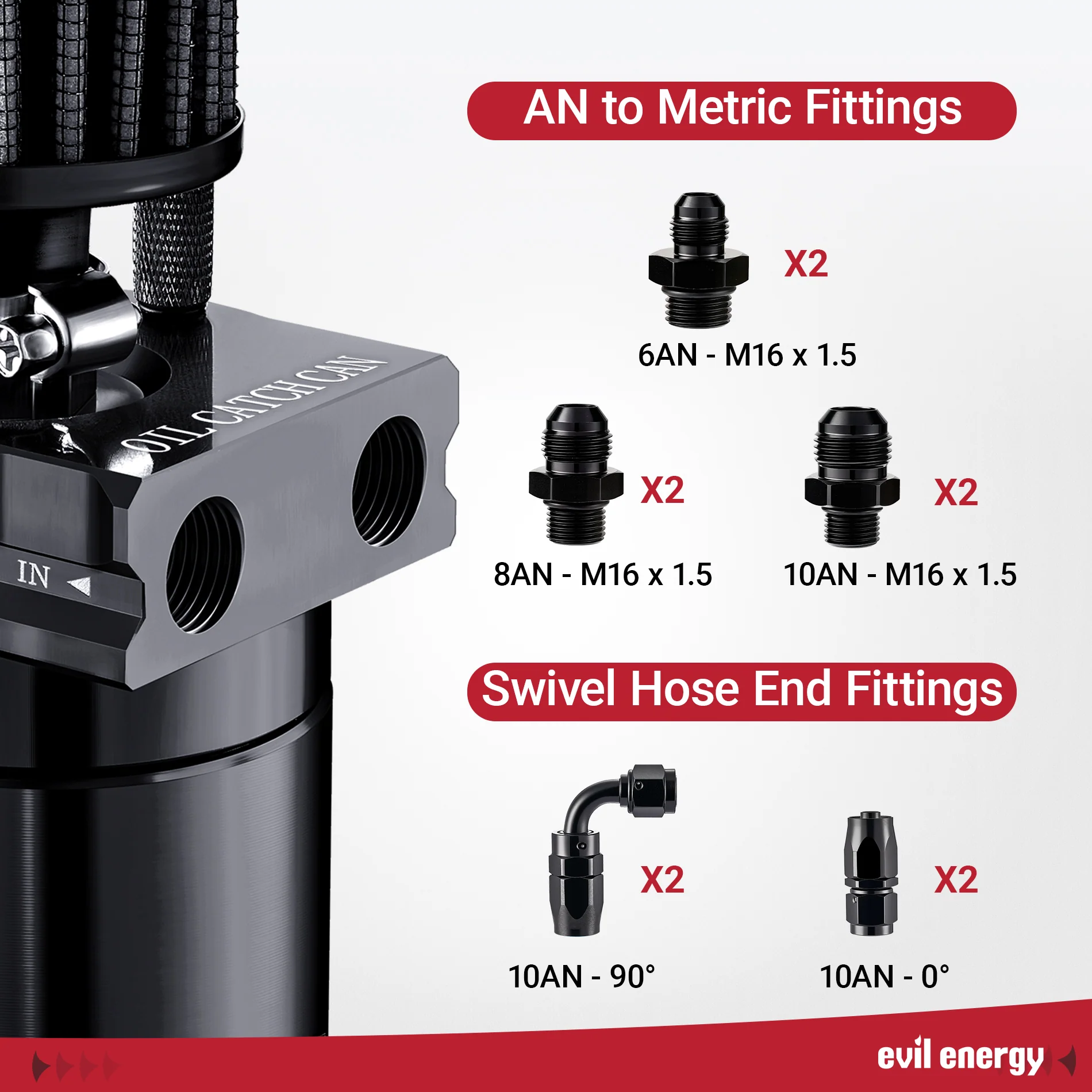

Adapters Included	M16×1.5 to AN6/8/10 adapters (universal fit for most PCV systems)
Installation Position	Inline between PCV hoses (sealed system); vent system (with filter, if included)

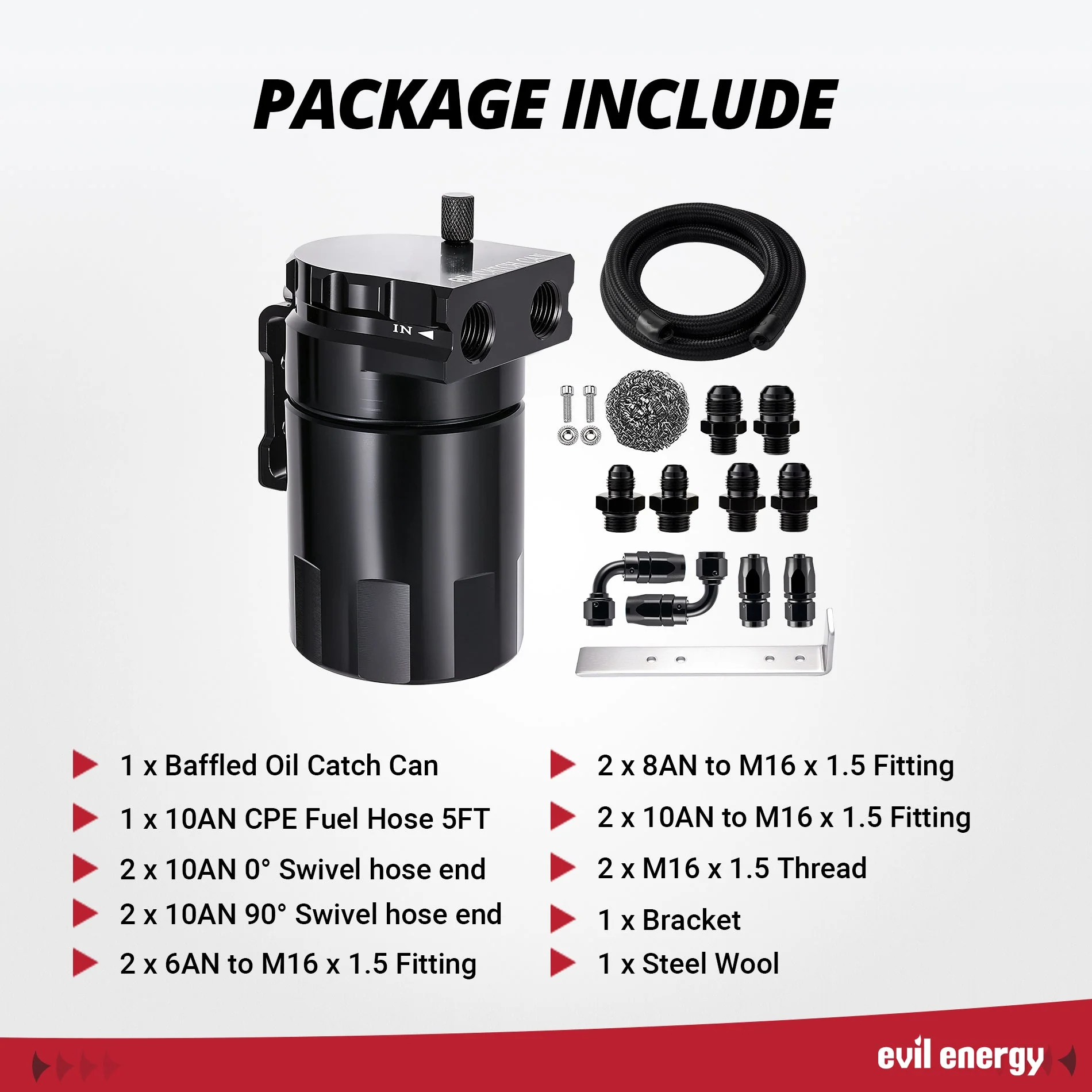

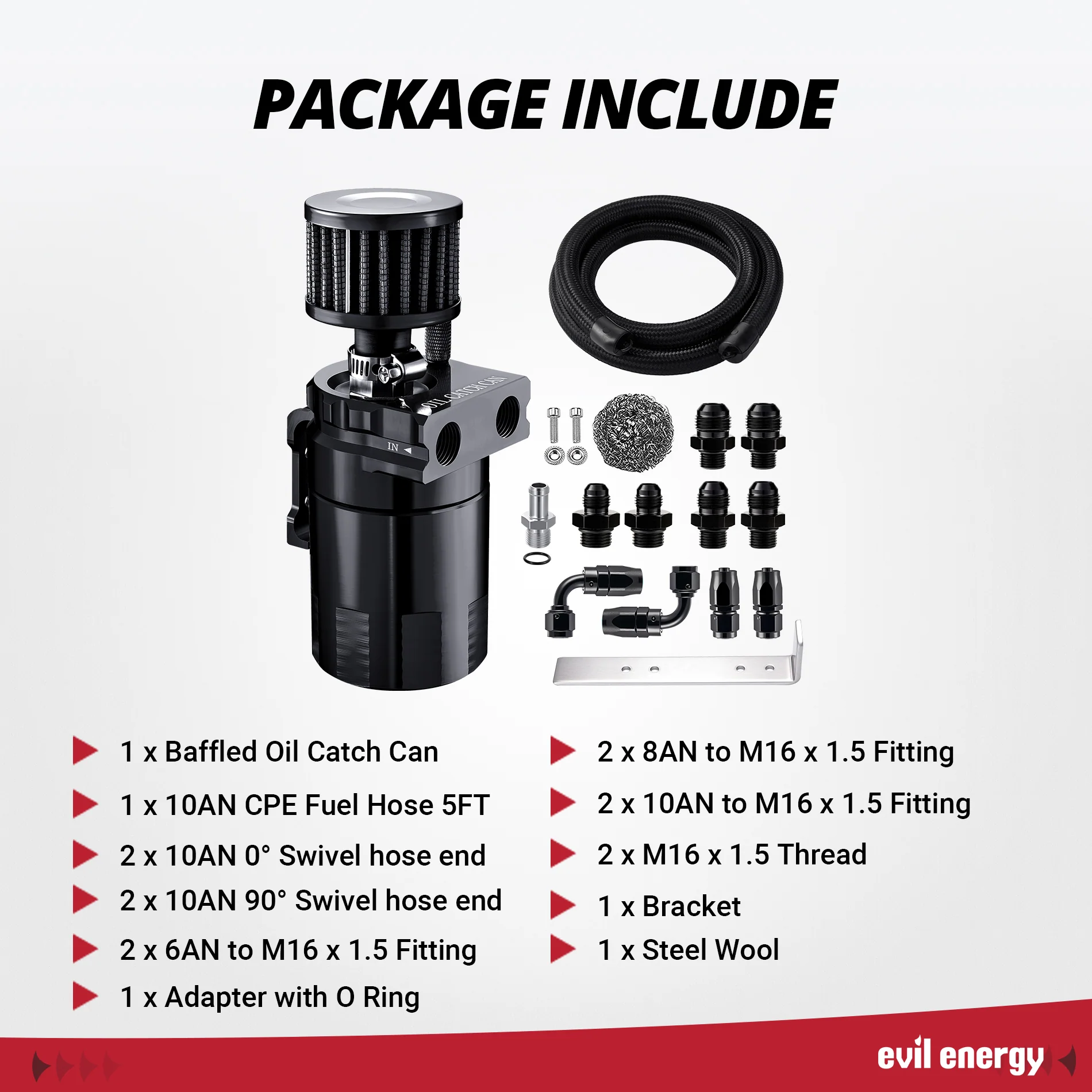

Package Includes	1*300ml Baffled Oil Catch Can 1*5FT AN6/8/10 CPE Fuel Hose 2*AN6/8/10 Swivel Fittings (0°) 2*AN6/8/10 Swivel Fittings (90°) 6*Metric M16x1.5mm to AN6/8/10 Male Flare Adapters 2*M16x1.5Thread 1*Bracket 1*SteelWool 1× Breather Filter(Optional)
Universal Fitment	Fits most cars/trucks/performance vehicles (confirm installation space first,Universal for most vehicles. Tiny 300ml size needs only basic installation space.)
Working Pressure (Hose)	750 PSI
Condition	New (100% brand-new components)

If you need an additional mounting bracket for the oil cooler:
330mm Bracket
340mm Bracket
Recommend Non Marring Wrench :
Adjustable AN Fitting Wrench

---!@!start!@!---Product Description---!@!end!@!---

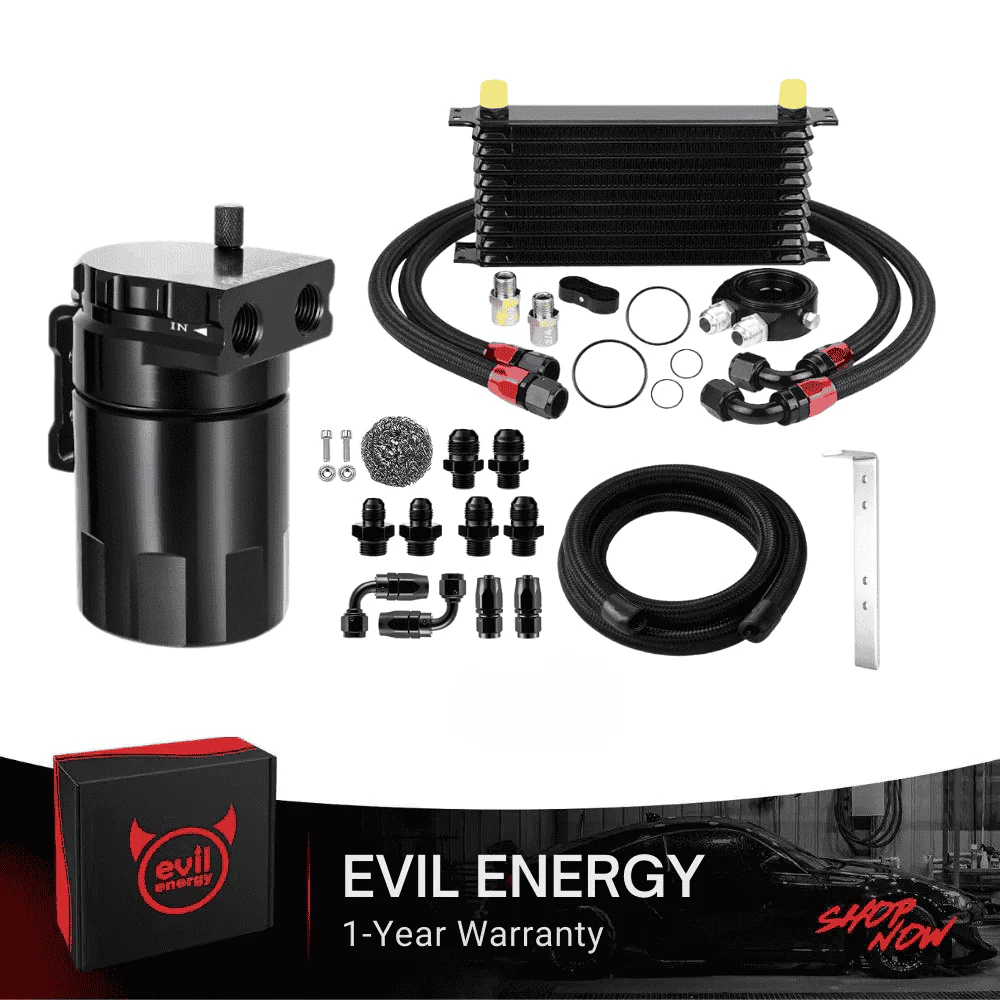

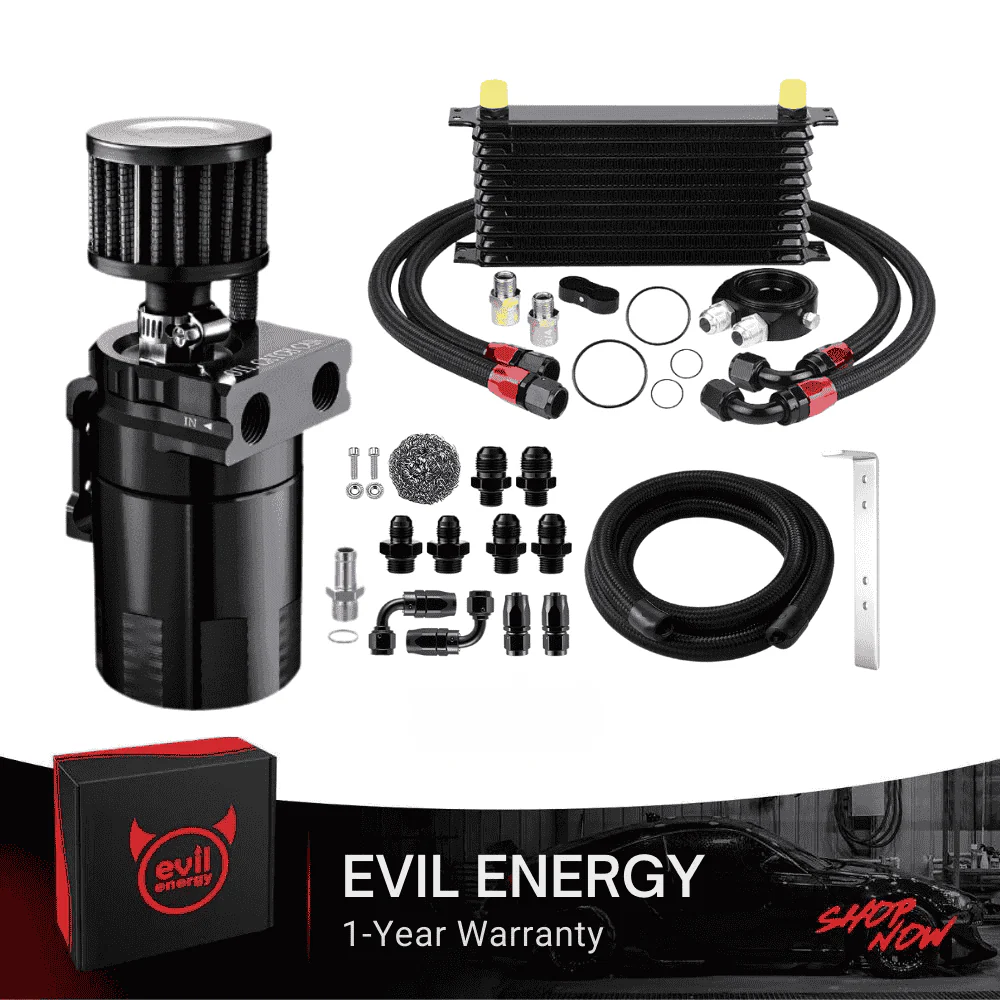

The EVIL ENERGY Oil Catch Can kit delivers complete engine protection, now bundled with a 10ROW Engine Oil Cooler. This all-in-one solution features a 300ML Baffled Oil Catch Can to stop carbon buildup, plus a high-performance oil cooler to maintain optimal oil temperatures. It's the ideal dual-protection package for daily drivers, performance builds, and vehicles used in extreme conditions (high-RPM racing, heavy towing, hot climates).

Complete 300ML Baffled Oil Catch Can Kit

This universal oil catch can kit is engineered to trap oil vapor and moisture from crankcase gases—eliminating carbon buildup on intake tracts, valves, and pistons. Its black anodized aluminum body resists corrosion and engine bay heat, while the removable baffle + steel ball filter media delivers superior filtration compared to basic catch cans. This oil catch can kit includes two variants: one for sealed PCV systems (modern vehicles) and one with an air filter for vent systems (pre-PCV vehicles)—adapting to your specific setup.

Includes High-Performance 10ROW Engine Oil Cooler

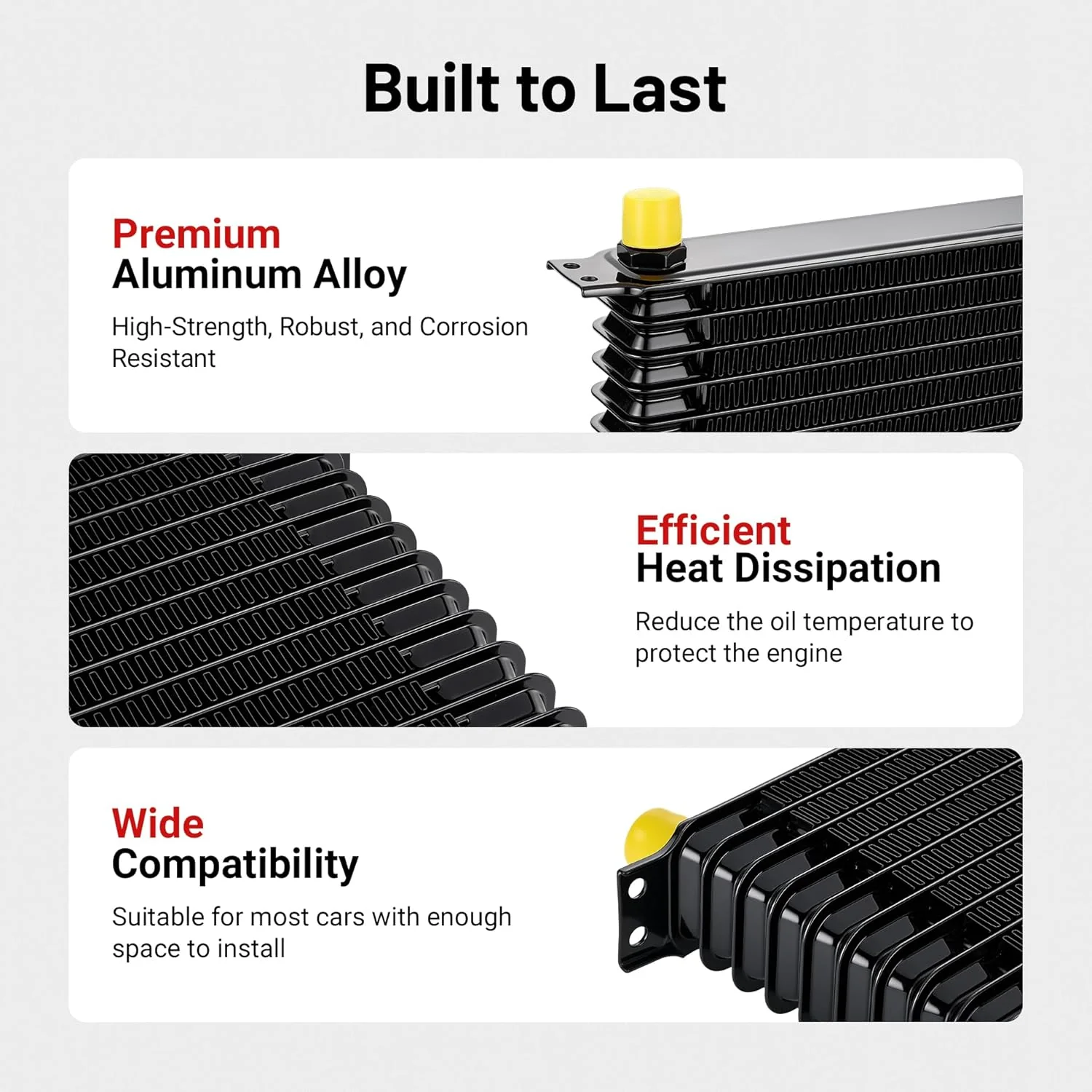

Complementing the oil catch can, this kit includes a 10-row engine oil cooler. This transmission oil cooler features a precision-machined aluminum core with a stacked-plate design, maximizing heat transfer to rapidly lower engine/transmission/rear differential oil temperatures. This prevents oil degradation, reduces internal component wear, and enhances lubrication efficiency—even under intense load. Equipped with heavy-duty CPE hoses (500 PSI working pressure, -40℉ to 257℉ temperature range), it ensures leak-free reliability and resistance to abrasion.

Universal Fitment & Easy Installation

Both components feature universal compatibility and hassle-free installation. The complete oil catch can kit includes all necessary adapters, hoses, and mounting hardware—no extra purchases needed for most vehicles. Whether you're upgrading a daily commuter or a modified performance car, this oil catch can kit package offers unbeatable value, combining two essential engine protections.

• More Than Just an Oil Catch Can Kit: Get dual protection in one package. This kit not only stops carbon buildup (like a standard oil catch can kit) but also prevents oil thermal breakdown with the included 10ROW engine oil cooler.
• Premium Durability: Aluminum alloy cooler + black anodized oil catch can (corrosion-resistant); CPE hoses (high-pressure/extreme-temperature tolerance) for long-term reliability.
• Universal Oil Catch Can Kit & Cooler: Fits most cars/trucks/performance vehicles; includes multi-size adapters for PCV systems and flexible cooler hose routing.
• Two Variant Options: Choose with/without an air filter to match your vehicle's PCV system (modern sealed vs. pre-PCV vent setups).
• Cost-Effective Value: Saves money vs. buying an oil cooler and oil catch can separately; professional-grade performance at an affordable price.
