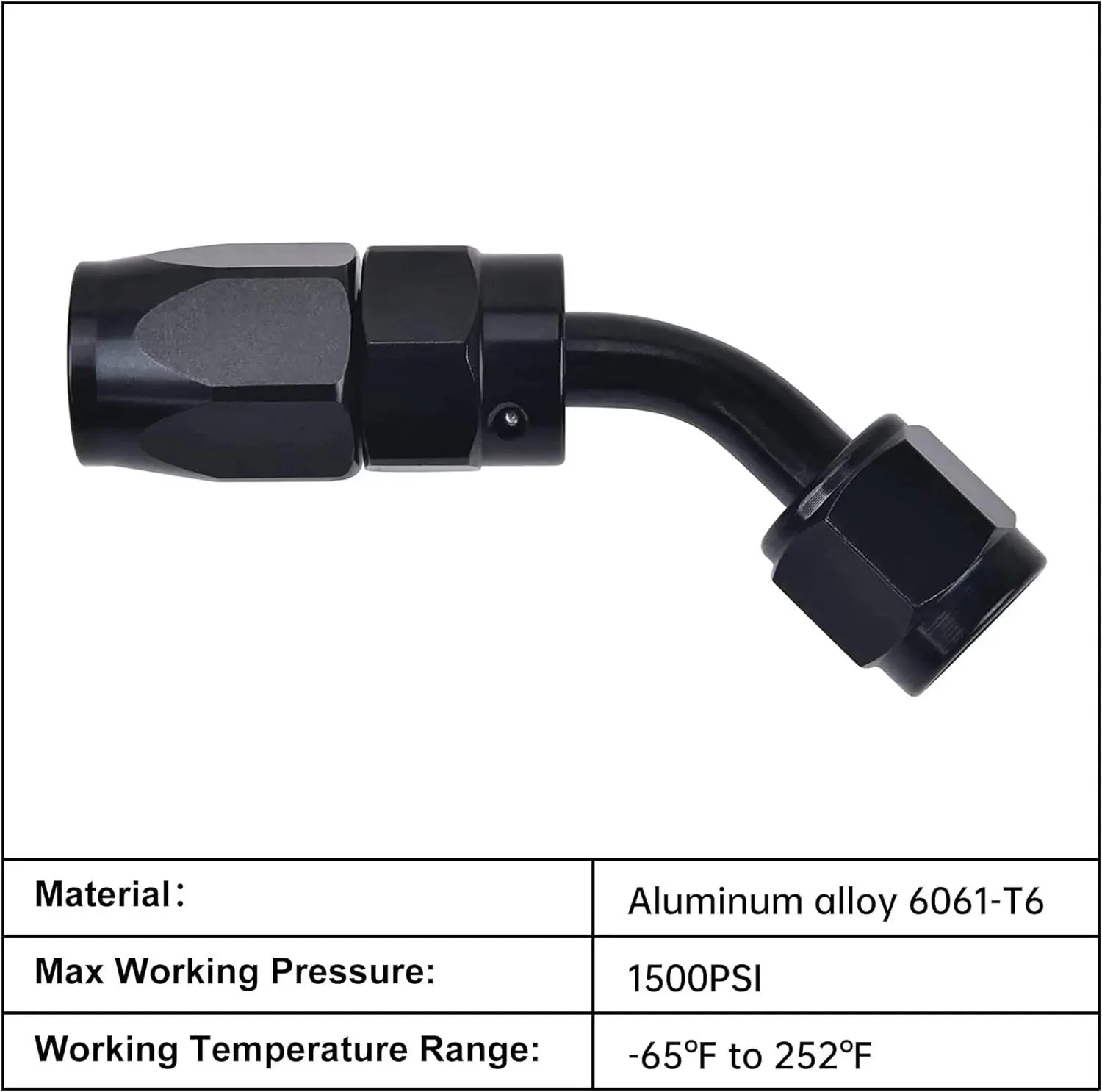

EVIL ENERGY AN Hose End Fitting 45 Degree Swivel Aluminum Black (4/6/8/10/12/16/20AN)

---!@!start!@!---Specifications---!@!end!@!---

Material	6061-T6 Aluminum
Finish	Black Anodized
Fitting Angle	45°
Swivel	360° Full Rotation
Seal Type	37° Flare (AN Standard)
Thread Type	UNF
Available Sizes	4AN – 7/16-20 UNF 6AN – 9/16-18 UNF 8AN – 3/4-16 UNF 10AN – 7/8-14 UNF 12AN – 1 1/16-12 UNF 16AN – 1 5/16-12 UNF 20AN – 1 5/8-12 UNF
Max Working Pressure	1500 PSI
Temperature Range	-65℉ to 252℉ (-53℃ to 122℃)
Compatibility	Stainless & Nylon Braided Hoses

---!@!start!@!---Description---!@!end!@!---

The EVIL ENERGY 45° AN Hose End Fitting is built for tight bends and high-performance applications. Constructed from 6061-T6 aluminum with a corrosion-resistant black finish, it handles up to 1500 PSI and is perfect for fuel, oil, and transmission setups. Its 360° swivel design enables quick alignment and secure installation, especially in tight or angled spaces. Reusable, leak-free, and compatible with both nylon and stainless braided hoses—this fitting is a must-have for LS swaps, turbo builds, and custom fuel systems.
