Original: $569.99
-65%$569.99
$199.50The Story
---!@!start!@!---Specifications---!@!end!@!---
Radiator Parameters
| Brand | EVIL ENERGY |
| ROW | 3 |
| Overall Size | 23'(H) x 25-7/8 '(W) x 5-4/5‘(T) |
| Core Size | 20’(H) x 18-1/9 '(W) x 1-5/7'(T) |
| Inlet/Outlet | 1.26 inch/1.50 inch |
| Fluid Capacity (L) |
3.4 |
| Drain Plug Thread Size |
NPT1/4 |
| Material | Aluminum |
Fan/Thermostatic Relay Parameters
| Blade Material |
reinforced nylon |
| Fan Diameter |
15.02 |
| Maximum Fan CFM |
2140 |
| Wattage |
120 |
| Thickness (in) |
2-8/9'(T) |
| Number of Blades |
10 S-Type blades |
| Maximum Fan RPM |
1900 |
| Amp Draw |
11 amps |
| turn-on temperature |
180'F |
| turn-off temperature |
165'F |
| Pressure sensor mounting interface |
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. |
30-Row Oil Cooler
| Brand | EVIL ENERGY |
| Product Type | Stacked Plate Oil Cooler |
| Application | Most vehicles (engines, transmissions, rear differentials); may require additional accessories for specific setups |
| Cooler Styles (Row Options) |
30 Row |
| Fittings Included | 2×10AN to 8AN fittings, 2×10AN to 6AN fittings (for connecting 8AN/6AN braided fuel line hose ends) |
| Dimensions (L×W×H) | 30 Row: 12.91-inch × 10.04-inch × 1.97-inch |
| Oil Capacity |
30 Row : 0.74L |
| Pressure Ratings | Test pressure: 116psi; Burst pressure: 232psi |
| Material | Aluminum alloy (lightweight, corrosion-resistant) |
| Installation Note | Install in a location with good airflow; installation instruction included; ensure sufficient space for your chosen row size |
| Package Include | 1×30Row Transmission/Engine Oil Cooler 2×10AN to 8AN fittings 2×10AN to 6AN fittings 1×Installation Instruction 1×Mounting Bracket Kit |
CPE Fuel Line Kits
| SIZE | 6AN |
| Length | 25FT |
| Hose ID | 0.343"(8.71mm) |
| Hose OD | 0.543"(13.79mm) |
| Min Bending Radius | 2.5"(63.5mm) |
| Package Include | 1×25FT CPE fuel line 4×swivel hose end straight 2×swivel hose end 45 degree 2×swivel hose end 90 degree 2×swivel hose end 180 degree 2×hose separator clamp |
---!@!start!@!---Description---!@!end!@!---

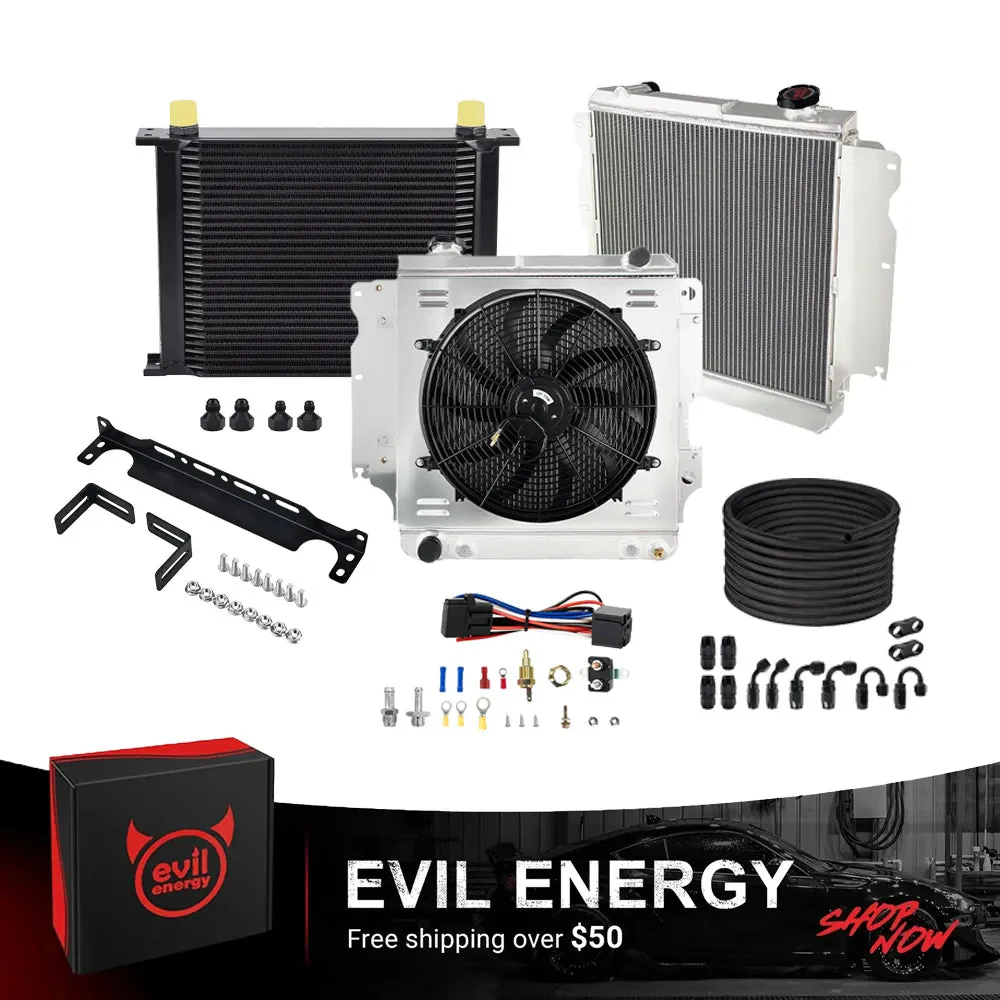

3-Row Aluminum Radiator + 30-Row Oil Cooler + CPE Braided Line System
Built for Jeep Wrangler YJ/TJ builds, LS swaps, off-road abuse, towing, and high-heat performance applications, the EVIL ENERGY Complete Cooling System Kit combines upgraded engine cooling, oil temperature control, and high-pressure fluid routing into one complete thermal management solution.
Featuring a 3-row 44mm aluminum radiator, a high-efficiency stacked plate oil cooler, and a durable CPE braided AN fuel/oil line kit, this package is designed to help reduce heat soak, stabilize temperatures, and improve long-term drivetrain reliability under demanding conditions. Based on the real specifications and features from the original EVIL ENERGY products.
Performance Features & System Advantages
High-Efficiency 3-Row Aluminum Radiator
The included EVIL ENERGY 44mm aluminum radiator features a high-capacity 3-row core designed for increased heat dissipation and improved coolant flow efficiency.
Compared to aging OE radiators, the all-aluminum construction helps:
- Reduce engine operating temperatures
- Improve cooling consistency under load
- Resist corrosion and long-term fatigue
- Support performance engines and LS swap applications
Direct-fit compatibility for:
- 1987-1995 Jeep Wrangler YJ
- 1997-2006 Jeep Wrangler TJ
- 2004-2006 Wrangler Unlimited
- 2004-2006 Rubicon models
30-Row Stacked Plate Oil Cooler
Oil temperature plays a major role in engine protection and lubrication efficiency. The included 30-row stacked plate oil cooler is engineered to increase cooling surface area and maintain stable oil temperatures during:
- Off-road driving
- Towing
- High-RPM performance driving
- Hot climate operation
The stacked plate design provides higher cooling efficiency than traditional tube-and-fin coolers, while the aluminum alloy construction offers lightweight durability and corrosion resistance.
High-Pressure CPE Braided AN Hose System
A cooling system is only as reliable as the plumbing behind it.
This kit includes a 20FT EVIL ENERGY CPE nylon braided fuel/oil line system built with:
- CPE inner core
- 304 stainless steel reinforcement
- Nylon braided outer layer
Designed to withstand high temperatures, pressure, vibration, and abrasion commonly found in off-road and performance engine bays.
Why Choose This Radiator?
-
Upgraded Cooling: Replaces the factory radiator with a more efficient aluminum unit, significantly reducing operating temperatures.
-
Performance Upgrade: Perfect for those looking to upgrade their cooling system for better performance and reliability.
-
Cost-Effective: While offering superior performance, this radiator is also a cost-effective solution compared to other option.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
