EVIL ENERGY Fuel System Filtration & Delivery Bundle - 300LPH Inline Fuel Pump + Inline Fuel Filter 10/30/40/100 Micron)

---!@!start!@!---Specifications---!@!end!@!---

10/30/40/100Micron Fuel Filter

Brand	EVIL ENERGY
Product Grade	Replacement Part
Material	Filter Element: Stainless Steel, Fuel Filter Can: Aluminum
Style	Modern
Fuel Filter	10 Micron 30 Micron 40 Micron 100 Micron
Material	Aluminum alloy fuel filter can and stainless steel filter element

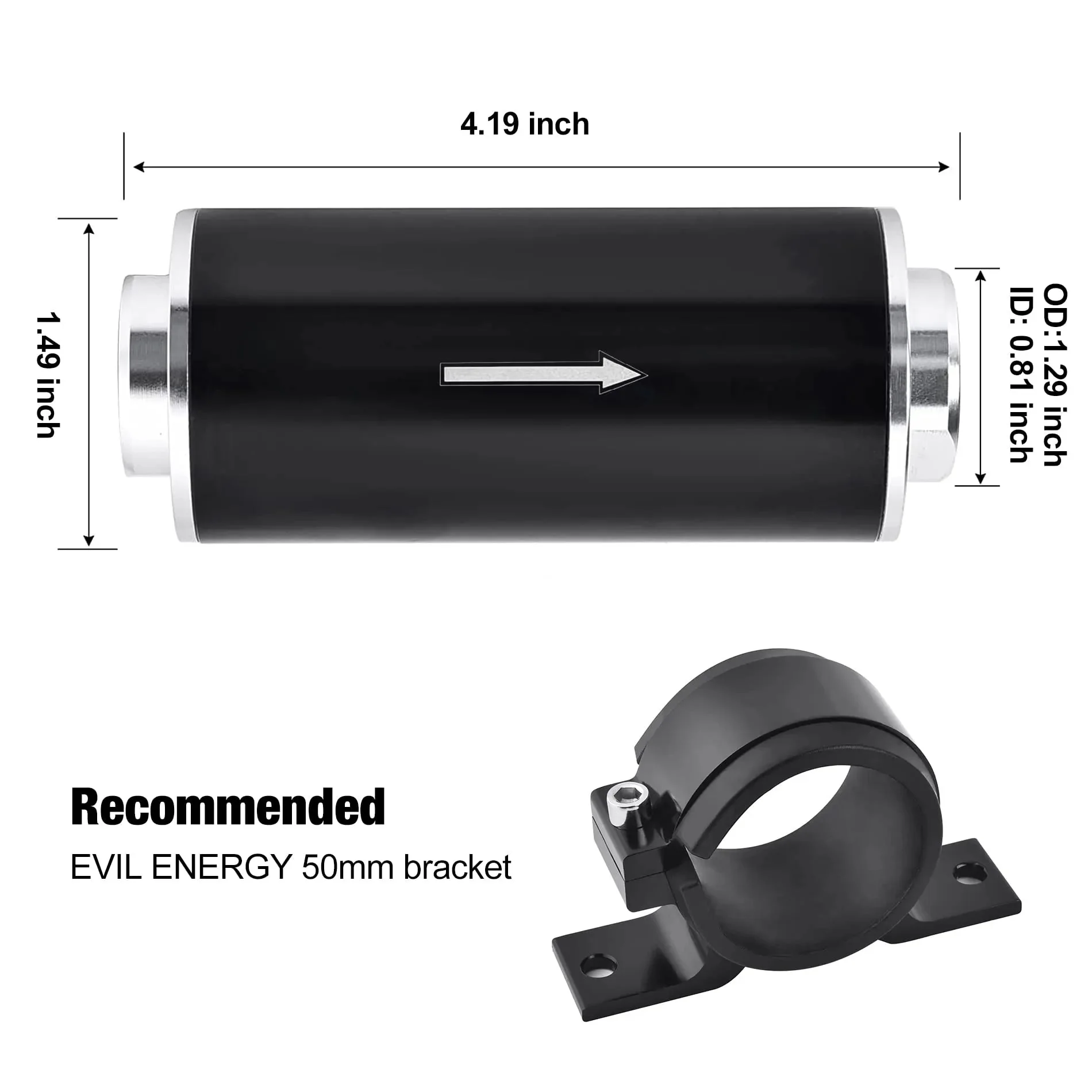

OD	10 Micron: 1.25 inch 30 Micron: 1.42 inch 40 Micron: 1.42 inch 100 Micron: 1.29 inch
ID	10 Micron: 0.81 inch 30 Micron: 0.8 inch 40 Micron: 0.8 inch 100 Micron: 0.81 inch
Width	10 Micron: 4.87 inch 30 Micron: 5.58 inch 40 Micron: 5.48 inch 100 Micron: 4.19 inch
Height	10 Micron: 1.96 inch 30 Micron: 2.27 inch 40 Micron: 2.27 inch 100 Micron: 1.49 inch

300LPH Fuel Pump

Product Grade	Replacement Part
Operating Pressure	85PSI
Style	Modern
Application	for 12V DC EFI system only
Material	Aluminum alloy fuel filter can and stainless steel filter element
Test flow	200 LPH (75PSI & 12V) 255 LPH (43 PSI &12V) 300 LPH (43 PSI&13.5V)
Applicable fuel	gasoline, pump gas, race gas, diesel and alcohol/ethanol.
Package Include	Fuel Pump*1 M12×1.5 to AN6 Fitting*1 AN6 to M18×1.5 Fitting/AN10 to M18×1.5 Fitting*1

---!@!start!@!---Description---!@!end!@!---

EVIL ENERGY Fuel Pump & Filter Bundle Overview

This bundle combines a 300LPH high-flow inline fuel pump and multi-micron (10/30/40/100μm) universal filter — optimizing fuel delivery and contaminant protection for daily, modified, or high-performance vehicles.

1. 300LPH Inline Fuel Pump

• Flow & Compatibility: Delivers 300LPH (at 43 PSI/13.5V) for universal 12V EFI systems; works with gasoline, diesel, race gas, and alcohol/ethanol.
• Durability & Installation: Built from alloy steel to withstand -68°F to 194°F; includes 10AN/6AN fittings (M18×1.5 / M12×1.5 threads) and clear instructions (recommended to mount below the fuel tank for gravity feed).

2. 10/30/40/100Micron Fuel Filter

• Compatibility & Adapters: Universal fit for gasoline, diesel fuel systems; includes AN6/AN8/AN10 adapters for different size applications.
• Filtration & Protection: 4 micron options (10/30/40/100μm) — stainless steel elements capture particles ≥ corresponding size, safeguarding vehicle fuel systems.
• Durability & Design: Aluminum alloy can + leak-proof O-rings; removable structure for easy element cleaning/replacement.
• Installation Tips: Pre-debugged direction — dock filter element closed end with spring; fuel flows per arrow (spring end to opposite end) for longer service.
