The Story

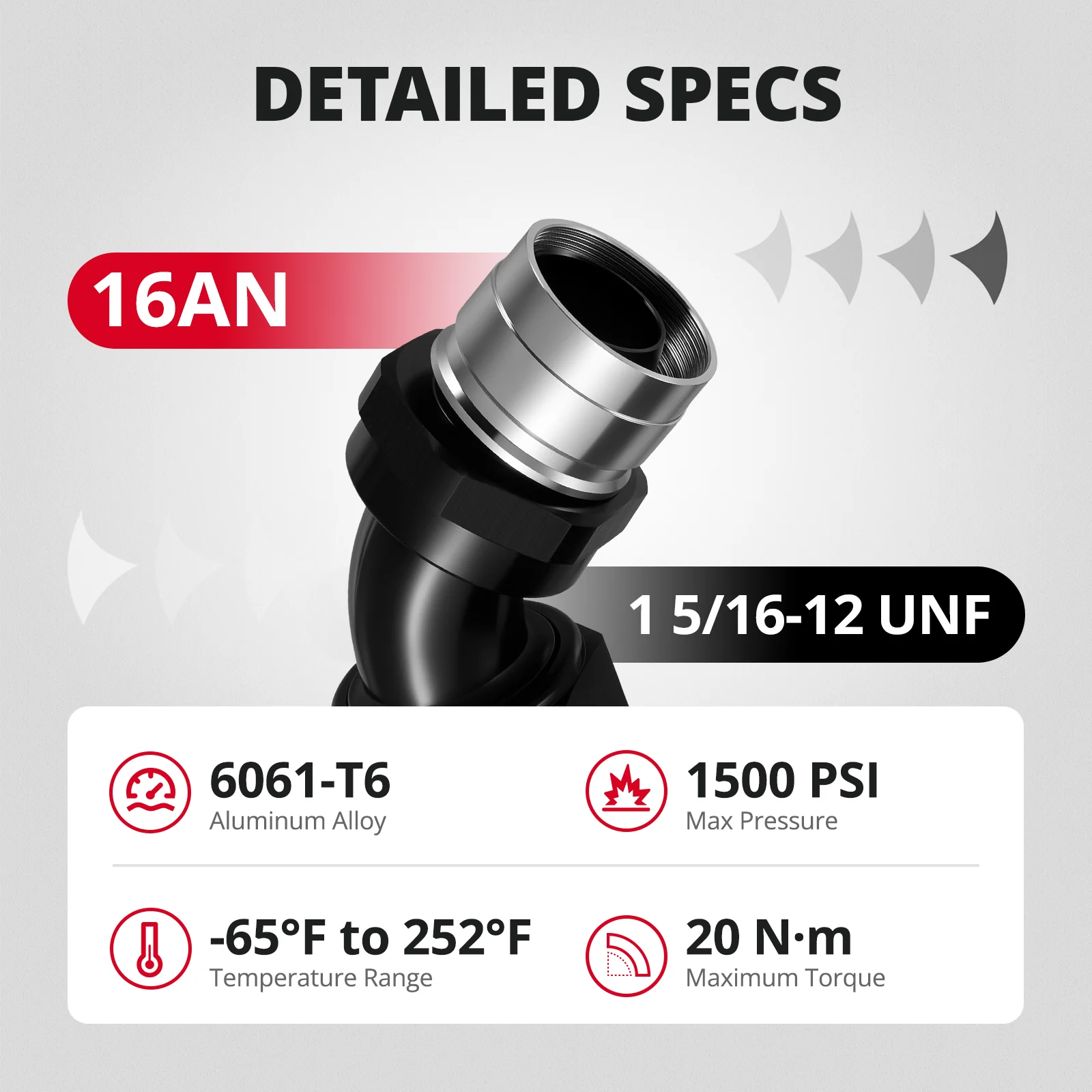

---!@!start!@!---Specifications---!@!end!@!---

Brand	EVIL ENERGY
Material	6061-T6 Aluminum Alloy
Available Sizes	4AN 6AN 8AN 10AN 12AN 16AN
Thread Size	4AN 7/16-20 UNF, 6AN 9/16-18 UNF, 8AN 3/4-16 UNF, 10AN 7/8-14 UNF, 12AN 1-1/16-12 UNF, 16AN 1-5/16-12 UNF
Angle Options	Straight (0°), 45°, 90°, 180°
Max Working Pressure	1500 PSI
Working Temperature	-65°F to 252°F
Seal Type	37 Degree AN Flare
Compatibility	PTFE Stainless Braided Hoses and PTFE Nylon Braided Hoses
Not Compatible	CPE Hose and Rubber Hose
Installation	Permanent Crimp-On (crimping machine and dies required, sold separately)

---!@!start!@!---Description---!@!end!@!---

Built for High-Pressure PTFE Plumbing

The EVIL ENERGY AN Crimp PTFE Hose End Fitting is engineered for builders who need a permanent, vibration-proof connection on E85 fuel systems, dry-sump oil lines, power steering, transmission cooling, and turbo oil feed/return runs. Once crimped, the fitting becomes part of the hose assembly, eliminating the loosening risk that reusable-style fittings can develop on high-vibration platforms.

Choose the Right Angle for a Clean Routing

Straight (0°) — long runs, bulkhead pass-throughs, radiator to reservoir
45° — moderate bends around headers or intake plenums
90° — tight turns off fuel rails, oil coolers, and catch cans
180° — U-turn returns from fuel pressure regulators and surge tanks

All angles share a 360° swivel female nut, so the hose can be positioned without pre-loading a twist in the PTFE liner — a common cause of premature hose failure.

Crimp-On Installation

Installation is permanent and requires a hydraulic or bench-style AN crimping machine with the correct die for the AN size. See our AN Hose Crimper Tool & Die Set for compatible tooling. Crimp diameter specs are printed on each die — do not exceed manufacturer values.

Hose compatibility chart showing PTFE stainless braided and PTFE nylon braided hose as compatible, and CPE braided hose as not compatible with AN crimp fittings

PTFE Hose Only — Why It Matters

Crimp fittings are dimensionally matched to the wall thickness of PTFE stainless braided and PTFE nylon braided hose. Using them on CPE, standard rubber, or push-lock rubber hose creates an incomplete seal and voids the 1500 PSI rating. If you're running rubber, use our Push-On Hose End Fittings instead. For a complete PTFE build, pair with our PTFE Braided Hose and AN Adapter Fittings.

360 degree swivel female nut on EVIL ENERGY AN crimp hose end fitting, allowing rotation for hose alignment

Rotate the female nut freely to align the hose without pre-loading a twist in the PTFE liner.

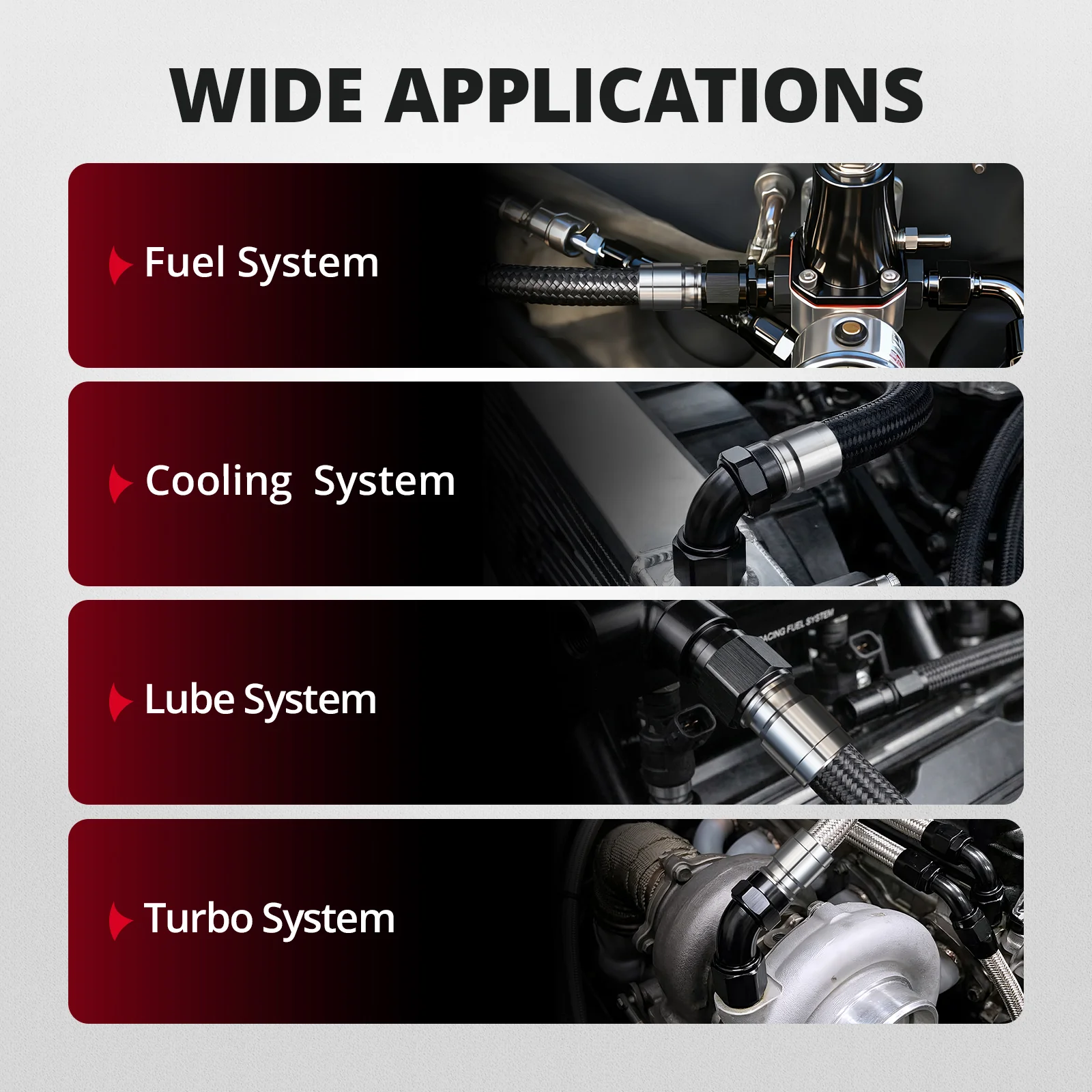

Multi-System Fitment.

This fitting is used across the full range of high-pressure fluid systems in modern performance builds:

Fuel systems: E85, methanol, and pump gas feed/return lines on fuel rails and regulators
Engine oil: dry-sump lines, oil cooler feeds, and turbocharger oil feed/return
Cooling systems — coolant reservoir, heater core, and radiator remote plumbing
Transmission & power steering: cooler lines and pressure return circuits

Straight, 45°, 90°, and 180° angles are available so each line can be routed cleanly without kinking the PTFE hose.
