EVIL ENERGY 3/4/6/8/10/12AN PTFE Hose End Fitting 45/90/180/Straight Degree Black for PTFE Hose Only 4PCS

---!@!start!@!---Specifications---!@!end!@!---

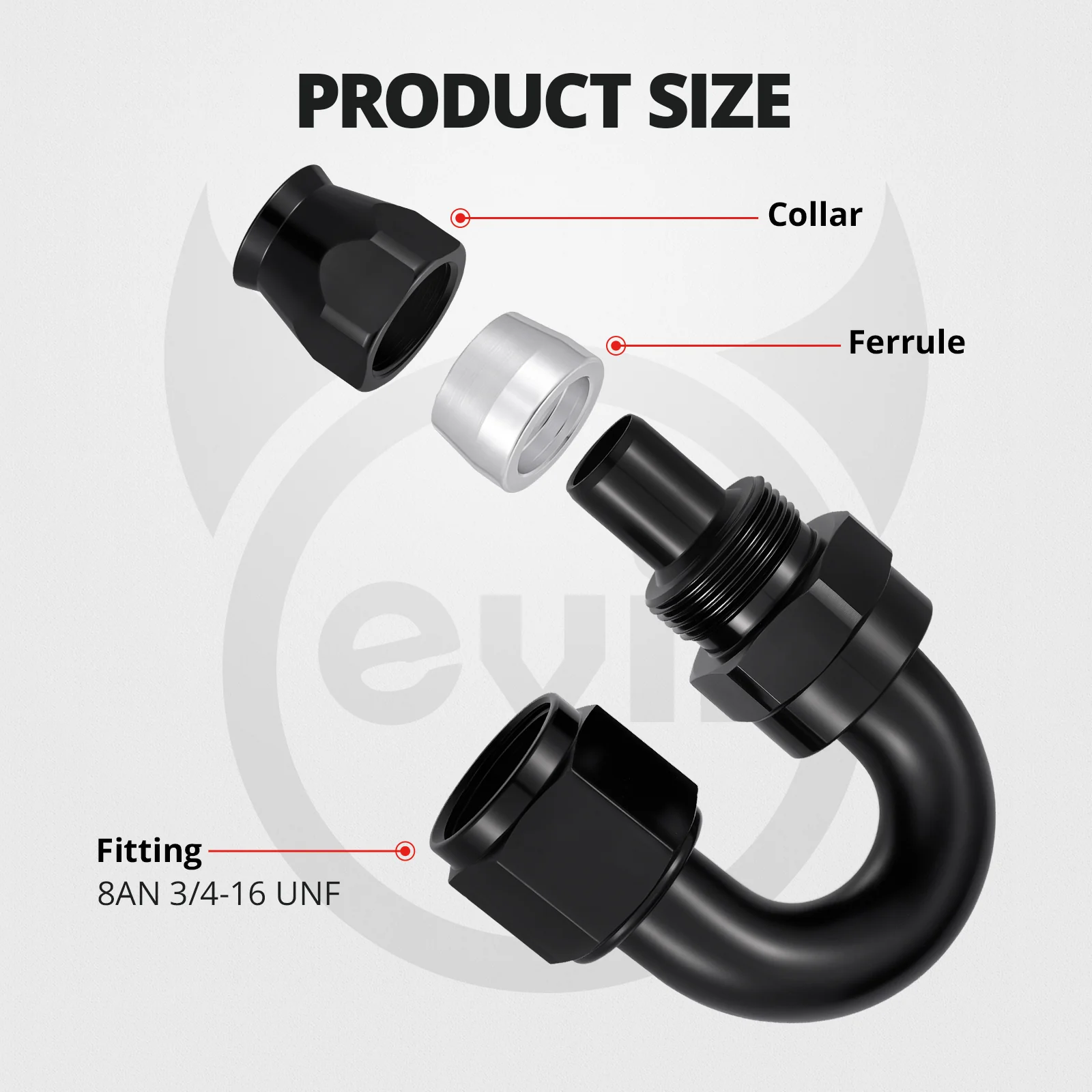

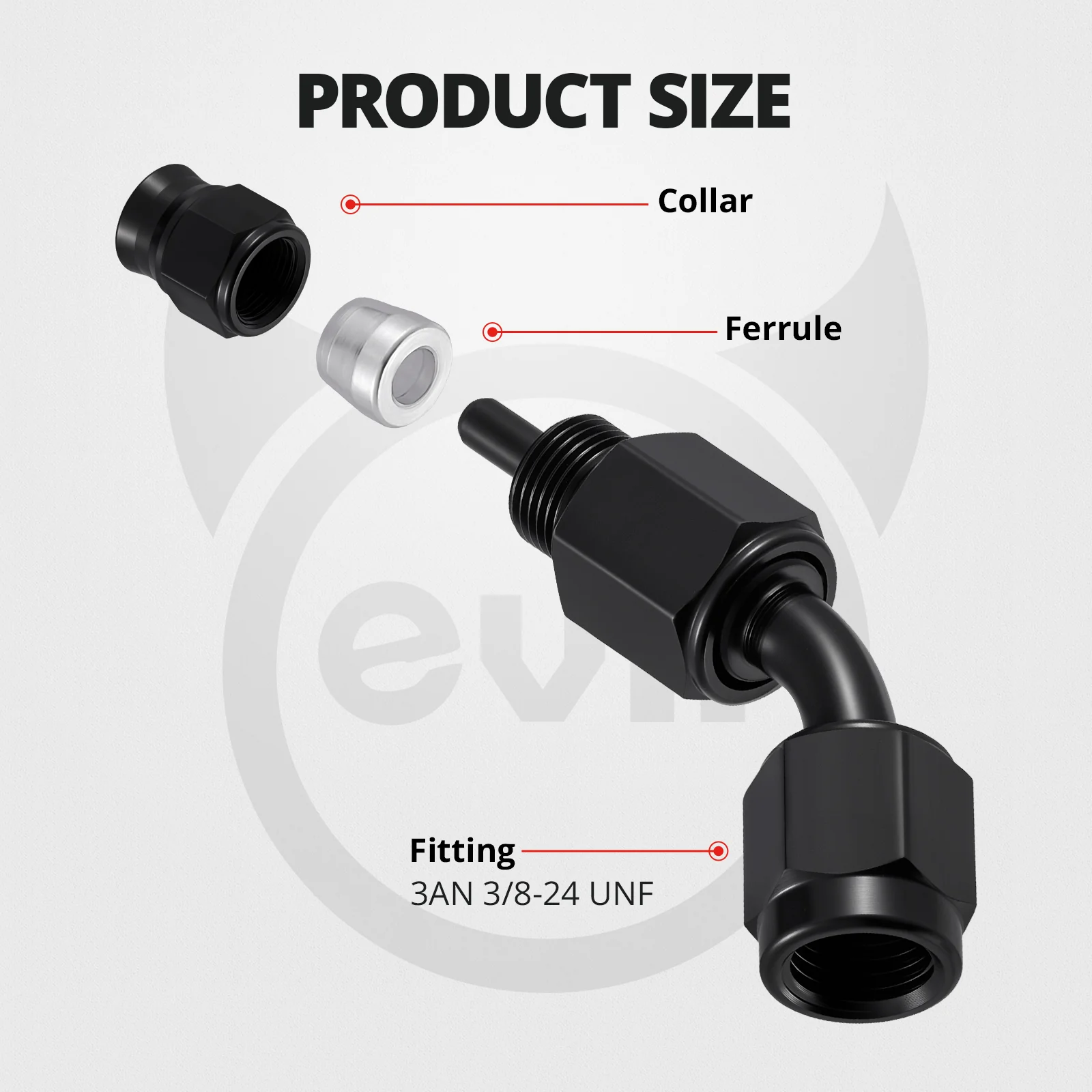

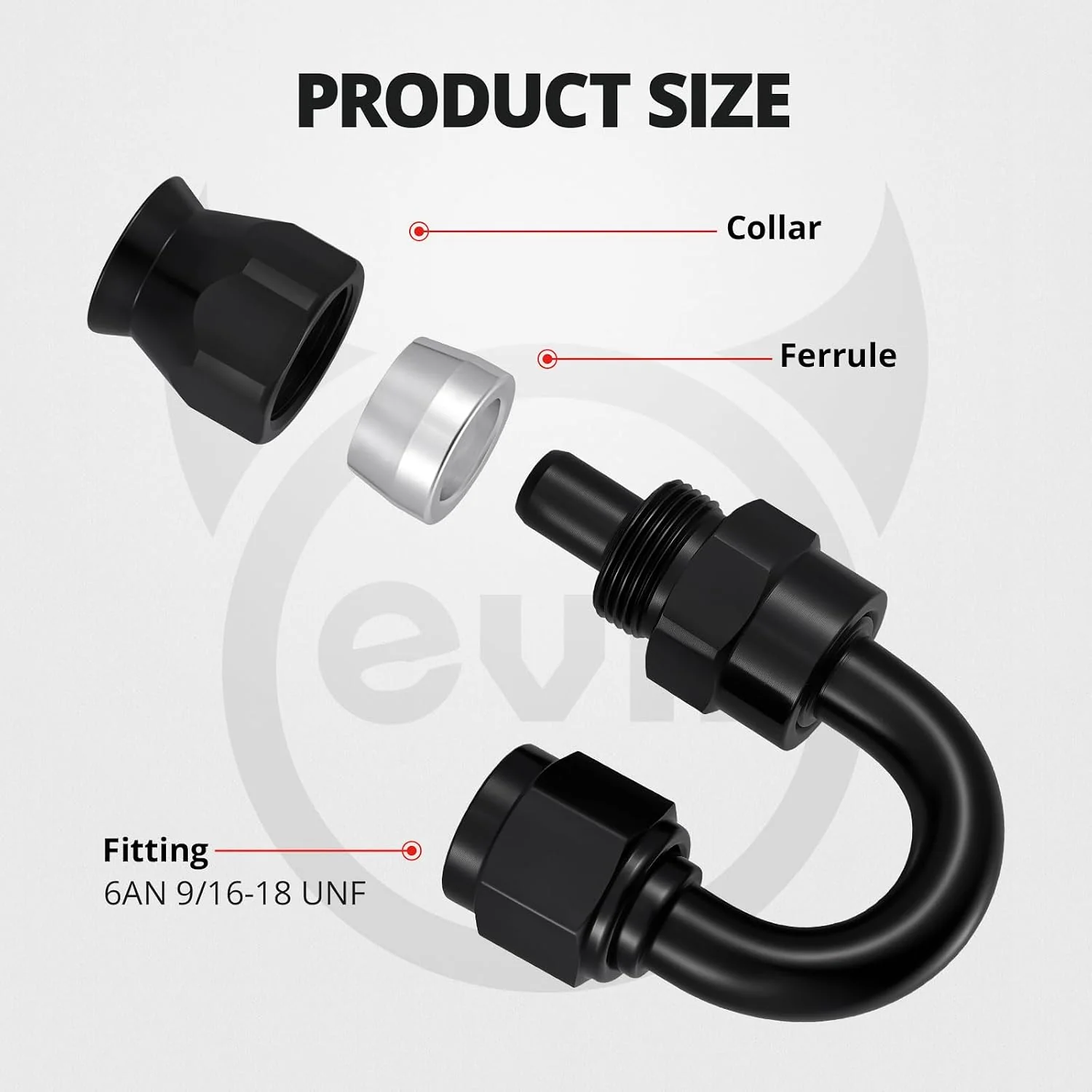

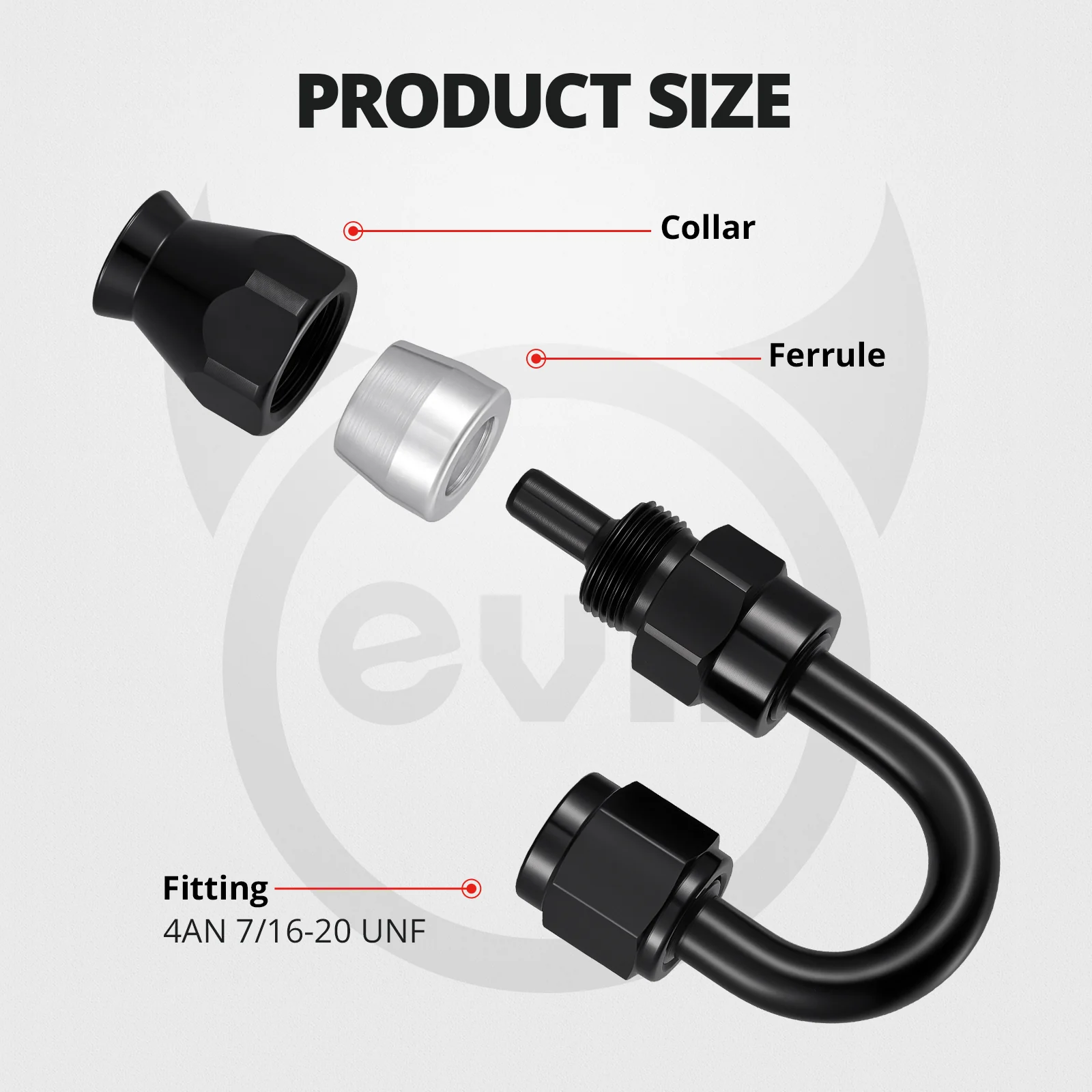

Available Sizes	3AN, 4AN, 6AN, 8AN, 10AN, 12AN
Thread Size (UNF)	3AN: 3/8-24 UNF 4AN: 7/16-20 UNF 6AN: 9/16-18 UNF 8AN: 3/4-16 UNF 10AN: 7/8-14 UNF 12AN: 1-1/16-12 UNF
Available Angles	Straight, 45°, 90°, 180°
Material	6061-T6 Aluminum Alloy
Finish	Black Anodized
Working Pressure	1500 PSI
Temperature Range	-65°F to 252°F (-54°C to 122°C)
Seal Type	37° Flare Seal (AN Side)
Connector Type	Nipple Style PTFE Hose End
Compatibility	PTFE fuel line only (not for rubber hose)
Feature	360° Swivel for easier assembly and orientation

---!@!start!@!---Description---!@!end!@!---

EVIL ENERGY PTFE Hose End Fittings provide a secure, leak-free solution for high-pressure fuel systems, boosted engines, and ethanol-compatible builds. Designed exclusively for PTFE fuel lines, these fittings utilize a 37° flare seal and a 360° swivel body to simplify installation and ensure precise alignment. Built from 6061-T6 anodized aluminum, they withstand up to 1500 PSI and extreme temperatures, making them ideal for performance fuel systems, oil lines, transmission applications, and custom engine plumbing. Available in multiple angles to deliver flexible routing solutions for tight engine bays and custom layouts.

Confirm PTFE Hose Compatibility Before Purchase

This fitting is designed for the PTFE fuel line only. It is not for rubber hose, CPE braided hose, push-on hose, or standard braided rubber fuel hose. Before ordering, confirm that your hose type, AN size, thread size, and fitting angle match your fuel, oil, nitrous, or hydraulic line setup.

Which Angle Should You Choose

Fitting Angle	Best For	Purchase Note
Straight	Direct line runs with enough clearance	Best when the hose can route cleanly without turning near the connection.
45 Degree	Slight direction changes in limited space	Useful when a straight fitting creates a mild bend or clearance issue.
90 Degree	Tight turns around fuel rails, filters, regulators, or brackets	Choose when the hose needs to leave the port at a sharp angle.
180 Degree	Returning the line in the opposite direction	Useful for compact layouts where the line needs to loop back cleanly.
