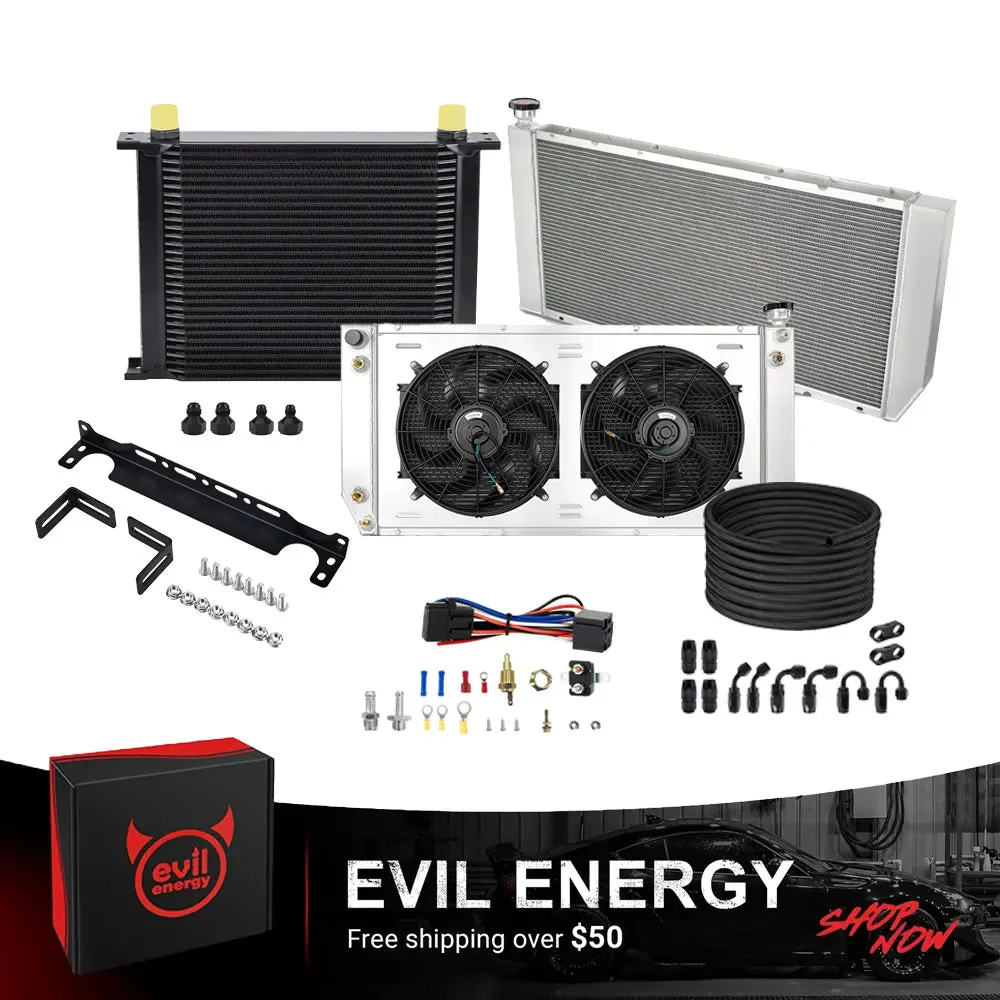

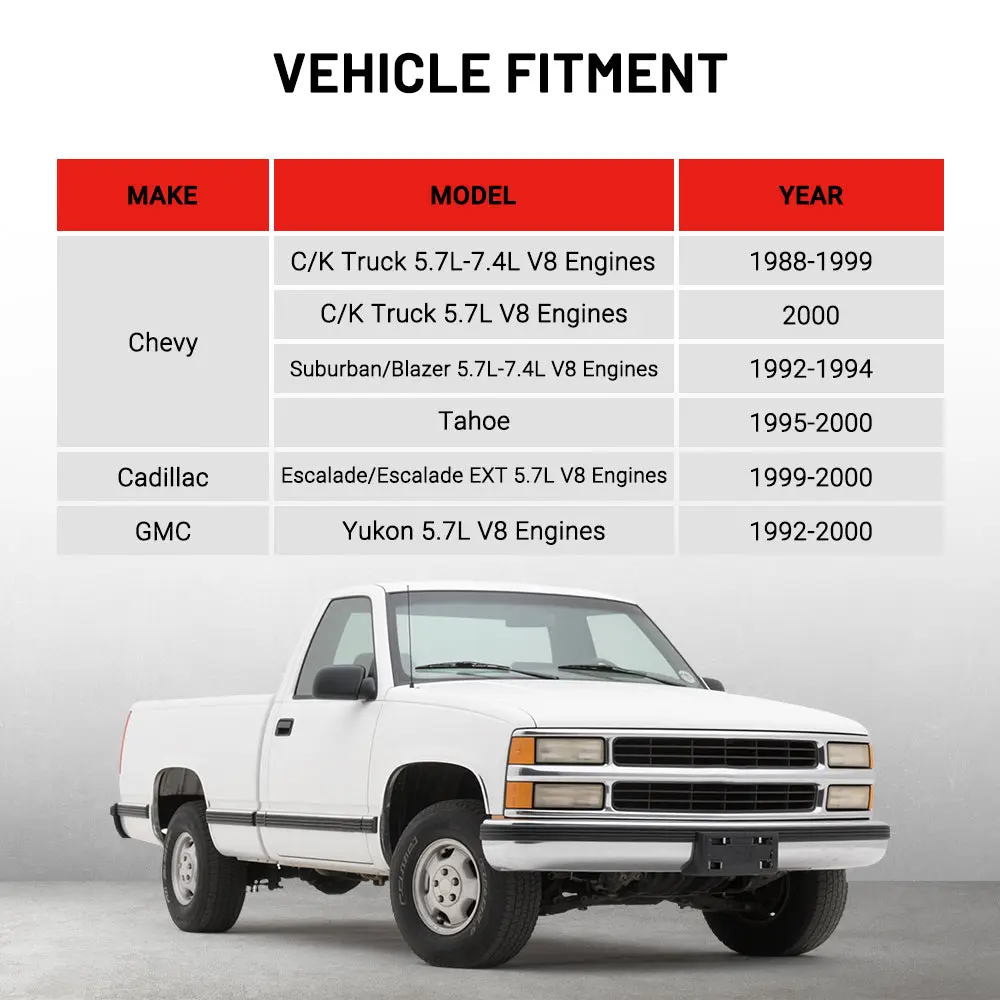

EVIL ENERGY Ultimate Cooling System Kit for Chevy C/K Truck, Chevy Suburban/Tahoe 1988 - 2000 5.7L - 7.4L V8

---!@!start!@!---Specifications---!@!end!@!---

Radiator Parameters

Brand	EVIL ENERGY
ROW	4

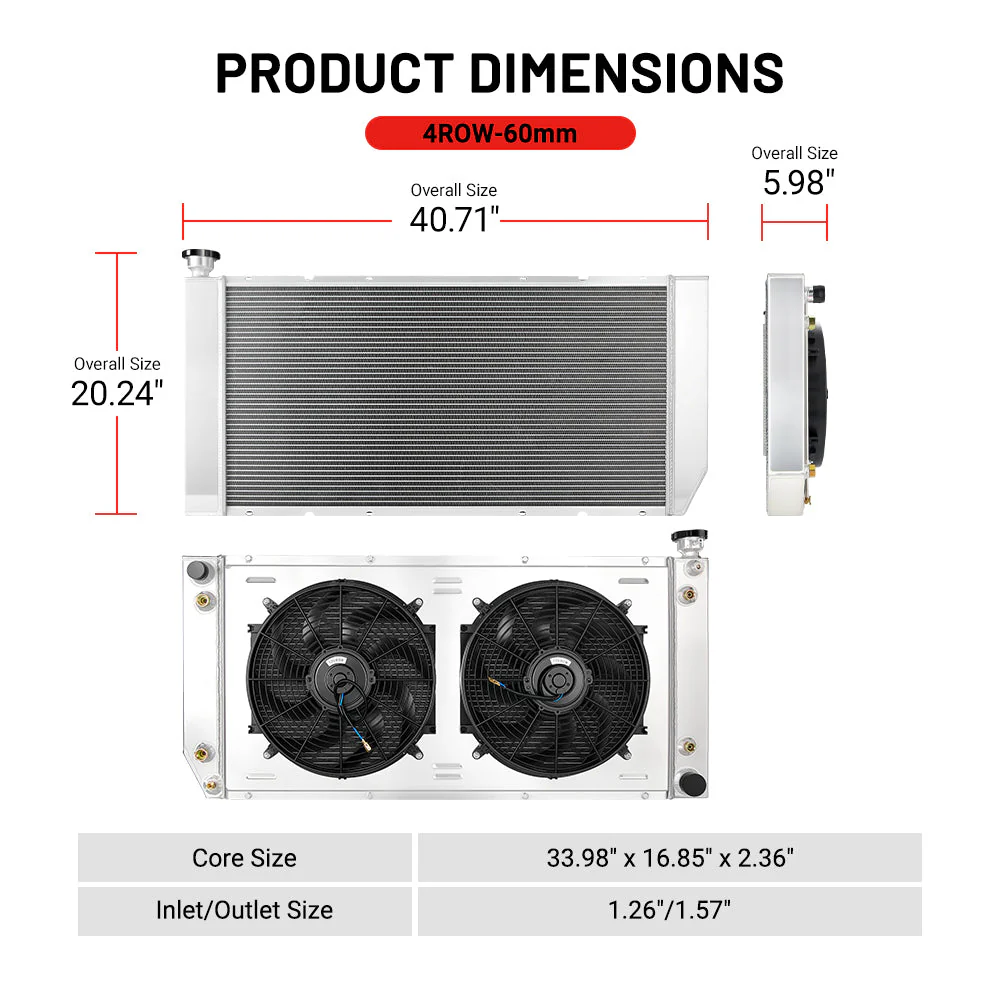

Overall Size	20-1/4-inch(H) x 40-5/7-inch(W) x 6-inch(T)
Core Size	16-6/7-inch(H) x 34-inch(W) x 2-3/8-inch(T)
Inlet/Outlet	1.26 inch/1.57 inch
Fluid Capacity (L)	7.13
Drain Plug Thread Size	NPT1/4
Material	Aluminum

Fan/Thermostatic Relay Parameters

Blade Material	reinforced nylon
Fan Diameter	14.05
Maximum Fan CFM	1300
Wattage	80
Thickness (in)	2-3/4-inch(T)
Number of Blades	8 S-Type blades
Maximum Fan RPM	1800
Amp Draw	7.2 amps
turn-on temperature	180'F
turn-off temperature	165'F
Pressure sensor mounting interface	3/8" NPT thread-in brass probe w/ 1/2-inch NPT adapter included.

30-Row Oil Cooler

Brand	EVIL ENERGY
Product Type	Stacked Plate Oil Cooler
Application	Most vehicles (engines, transmissions, rear differentials); may require additional accessories for specific setups
Cooler Styles (Row Options)	30 Row
Fittings Included	2×10AN to 8AN fittings, 2×10AN to 6AN fittings (for connecting 8AN/6AN braided fuel line hose ends)

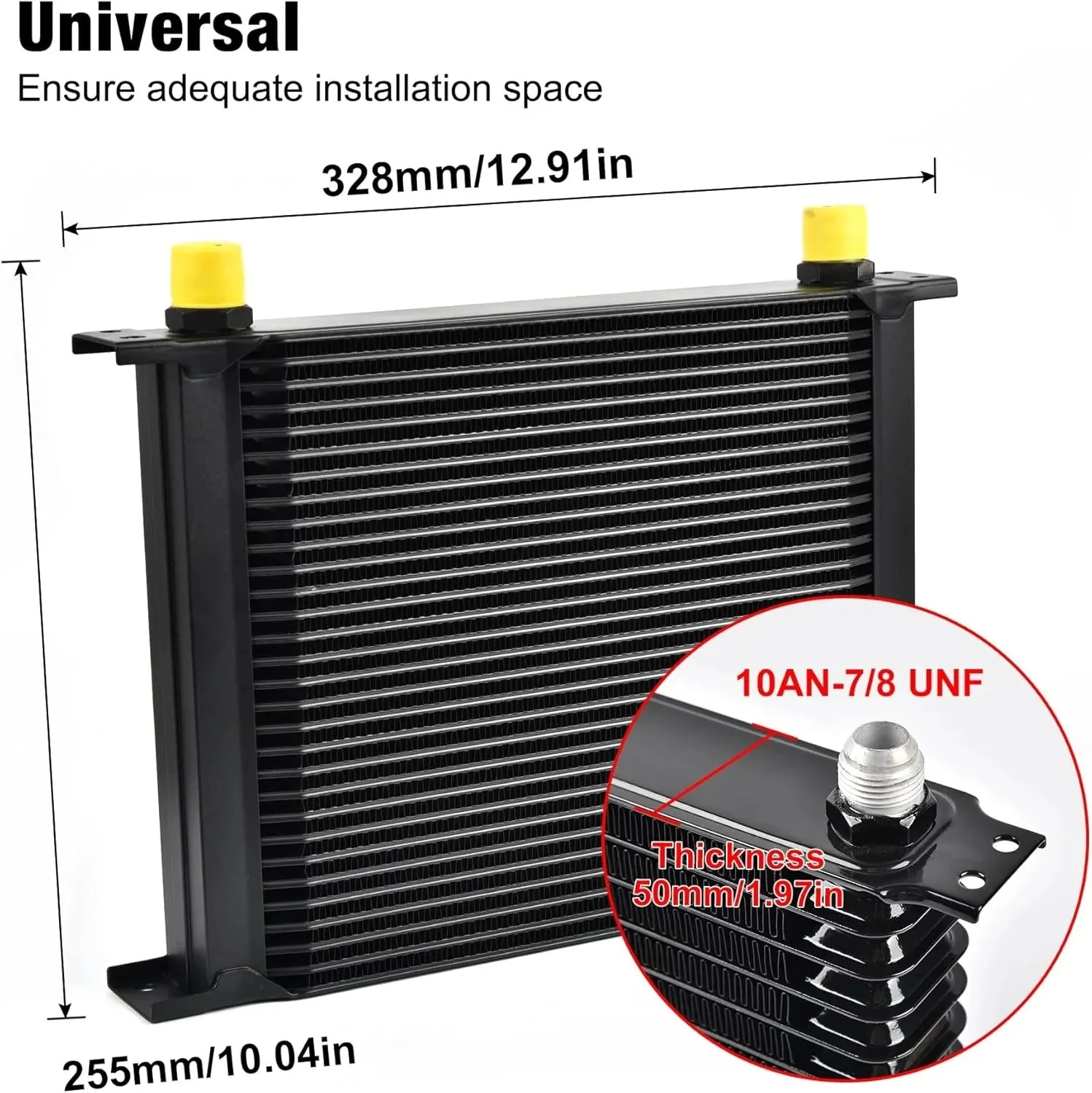

Dimensions (L×W×H)	30 Row: 12.91-inch × 10.04-inch × 1.97-inch
Oil Capacity	30 Row : 0.74L

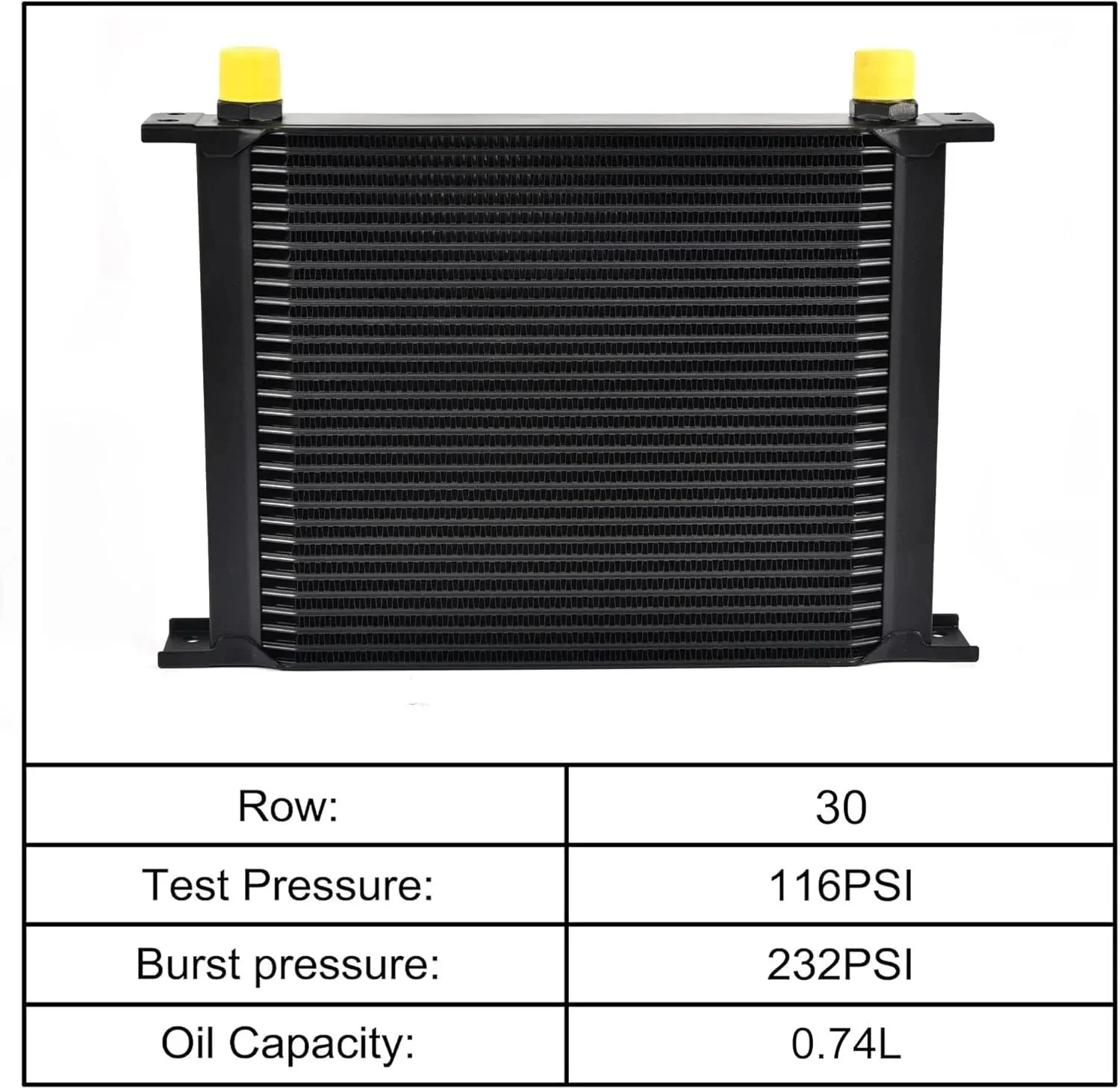

Pressure Ratings	Test pressure: 116psi; Burst pressure: 232psi
Material	Aluminum alloy (lightweight, corrosion-resistant)

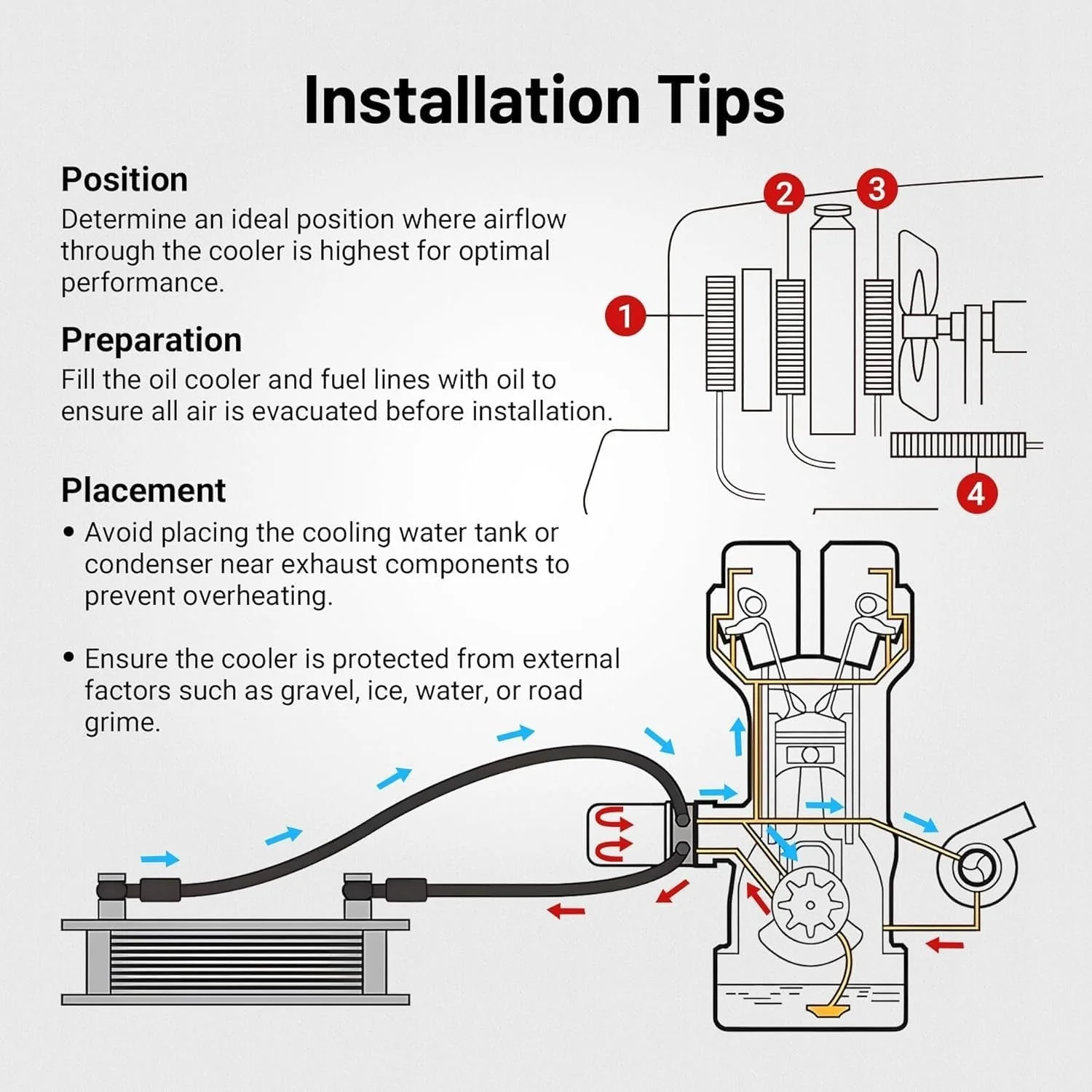

Installation Note	Install in a location with good airflow; installation instruction included; ensure sufficient space for your chosen row size

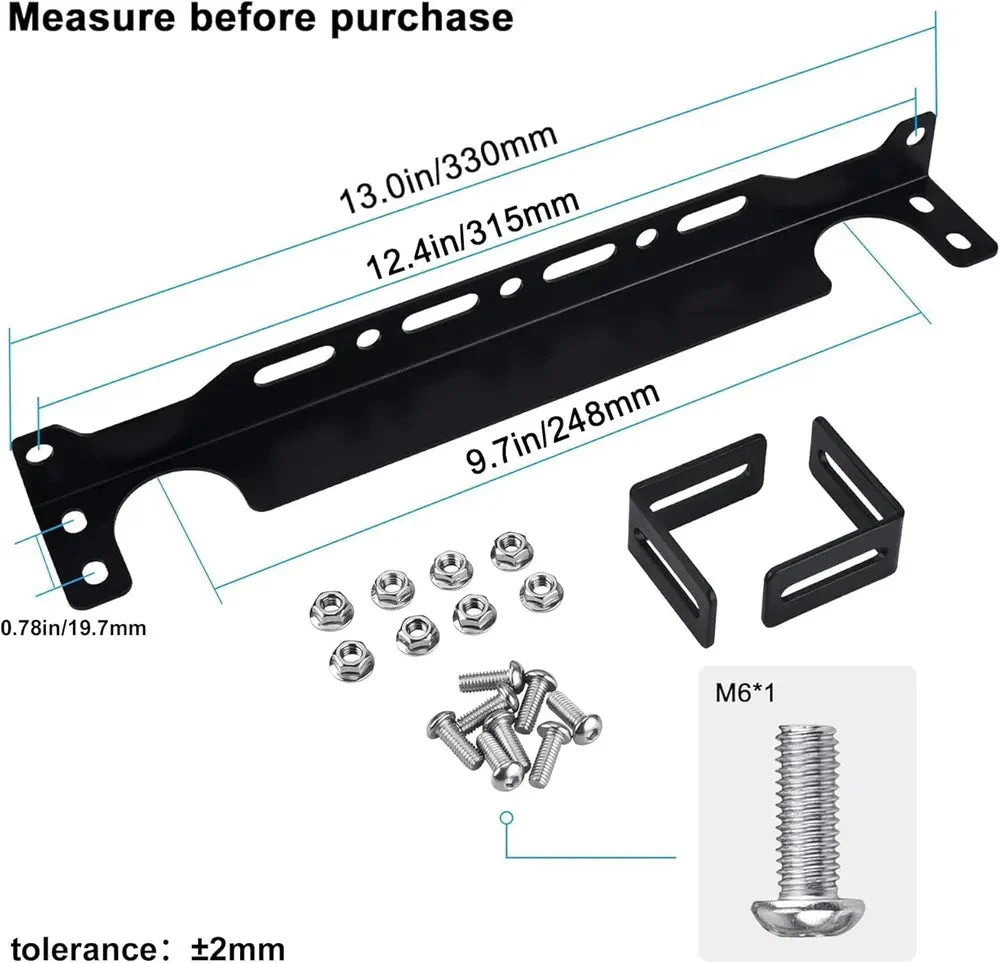

Package Include	1×30Row Transmission/Engine Oil Cooler 2×10AN to 8AN fittings 2×10AN to 6AN fittings 1×Installation Instruction 1×Mounting Bracket Kit

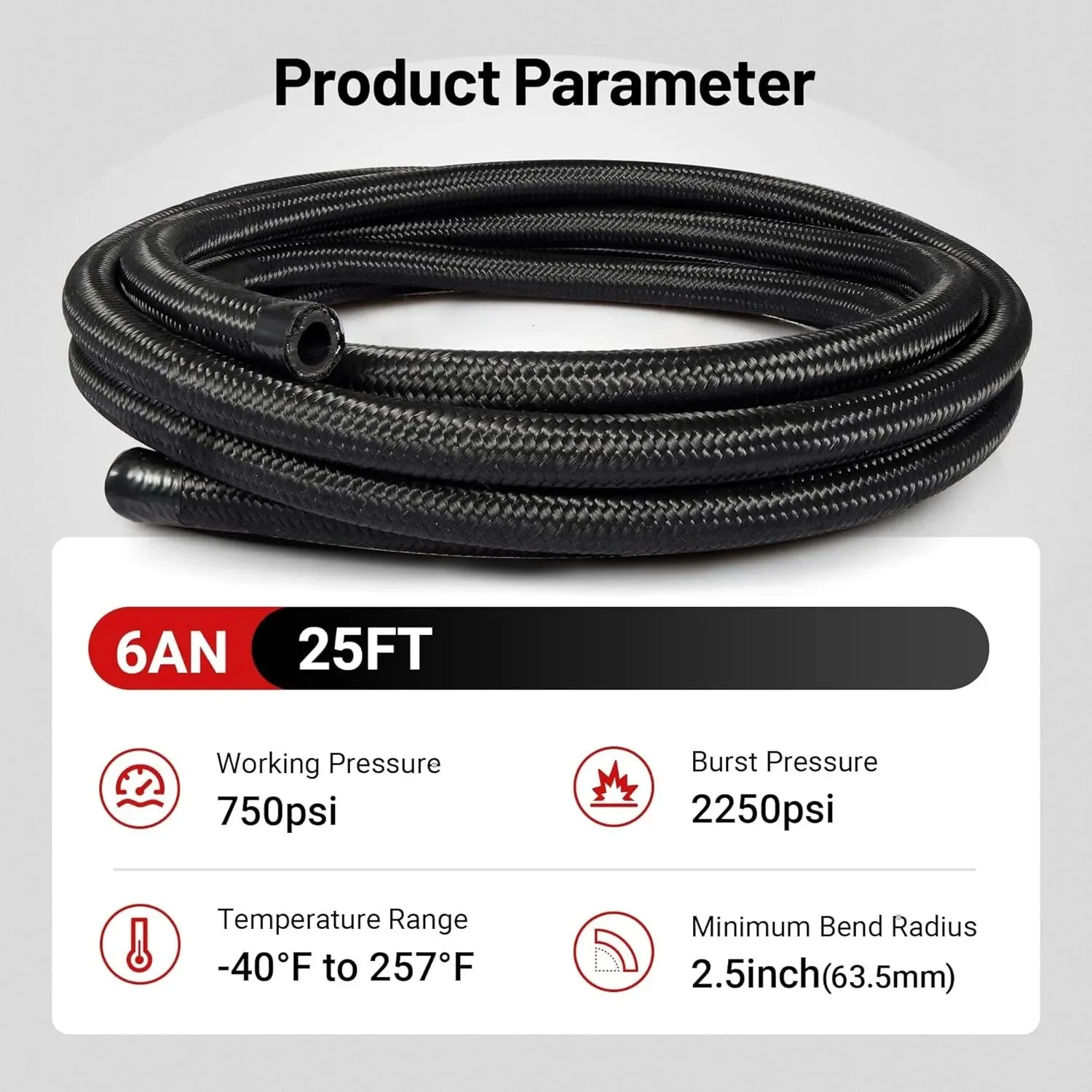

CPE Fuel Line Kits

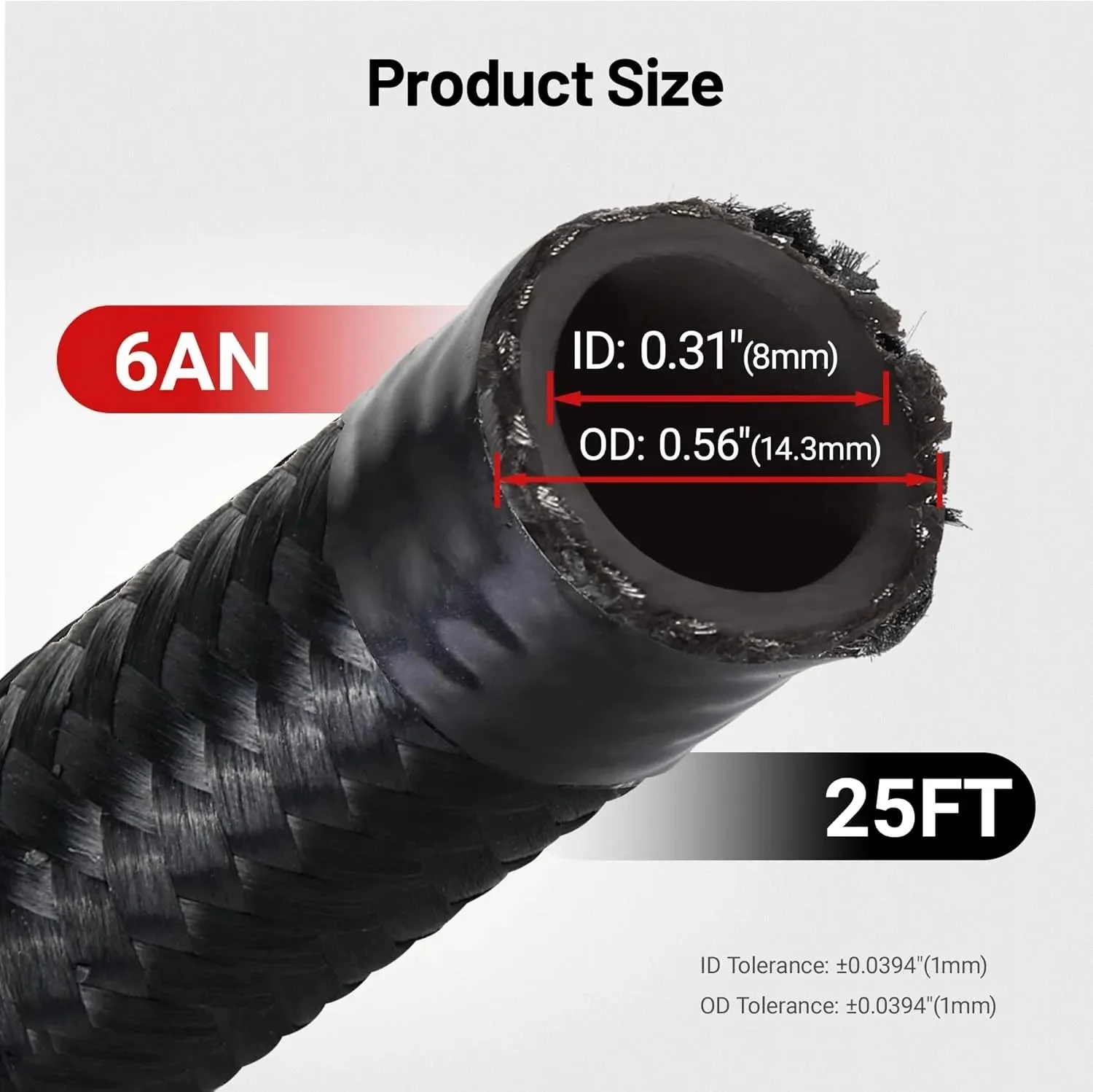

SIZE	6AN
Length	25FT
Hose ID	0.343-inch(8.71mm)
Hose OD	0.543-inch(13.79mm)
Min Bending Radius	2.5"(63.5mm)
Package Include	1×25FT CPE fuel line 4×swivel hose end straight 2×swivel hose end 45 degree 2×swivel hose end 90 degree 2×swivel hose end 180 degree 2×hose separator clamp

---!@!start!@!---Description---!@!end!@!---

Complete Thermal Management for High-Heat V8 Applications

Performance engines generate heat fast — especially during towing, aggressive driving, off-road use, racing, or hot weather operation. Factory cooling systems often struggle to maintain stable temperatures once horsepower, load, or ambient temperatures increase.

The EVIL ENERGY Cooling System Kit is designed to upgrade the three most critical parts of your thermal system:

• Engine coolant temperature control
• Engine/transmission oil cooling
• High-pressure fluid transfer and routing

At the center of the system is a high-capacity 4-row 60mm aluminum radiator engineered for improved heat dissipation and coolant flow. Paired with a 30-row oil cooler and high-strength CPE braided AN hose kit, this setup helps reduce heat soak, stabilize operating temperatures, and improve engine protection under load.

Performance Features & System Advantages

Heavy-Duty 4-Row 60MM Aluminum Radiator

The EVIL ENERGY 4-row aluminum radiator is built for significantly improved cooling performance compared to factory-style radiators.

Constructed from lightweight aluminum with a thick 60mm core, it increases cooling surface area and coolant capacity for better thermal efficiency during high-load operation.

Key Benefits:

• 4-row high-capacity core design
• 60mm thick aluminum construction
• Improved heat dissipation efficiency
• Helps reduce overheating during heavy use
• Supports high-horsepower and modified V8 engines
• Durable welded aluminum structure for long-term reliability

Perfect for performance builds where factory cooling systems are no longer enough.

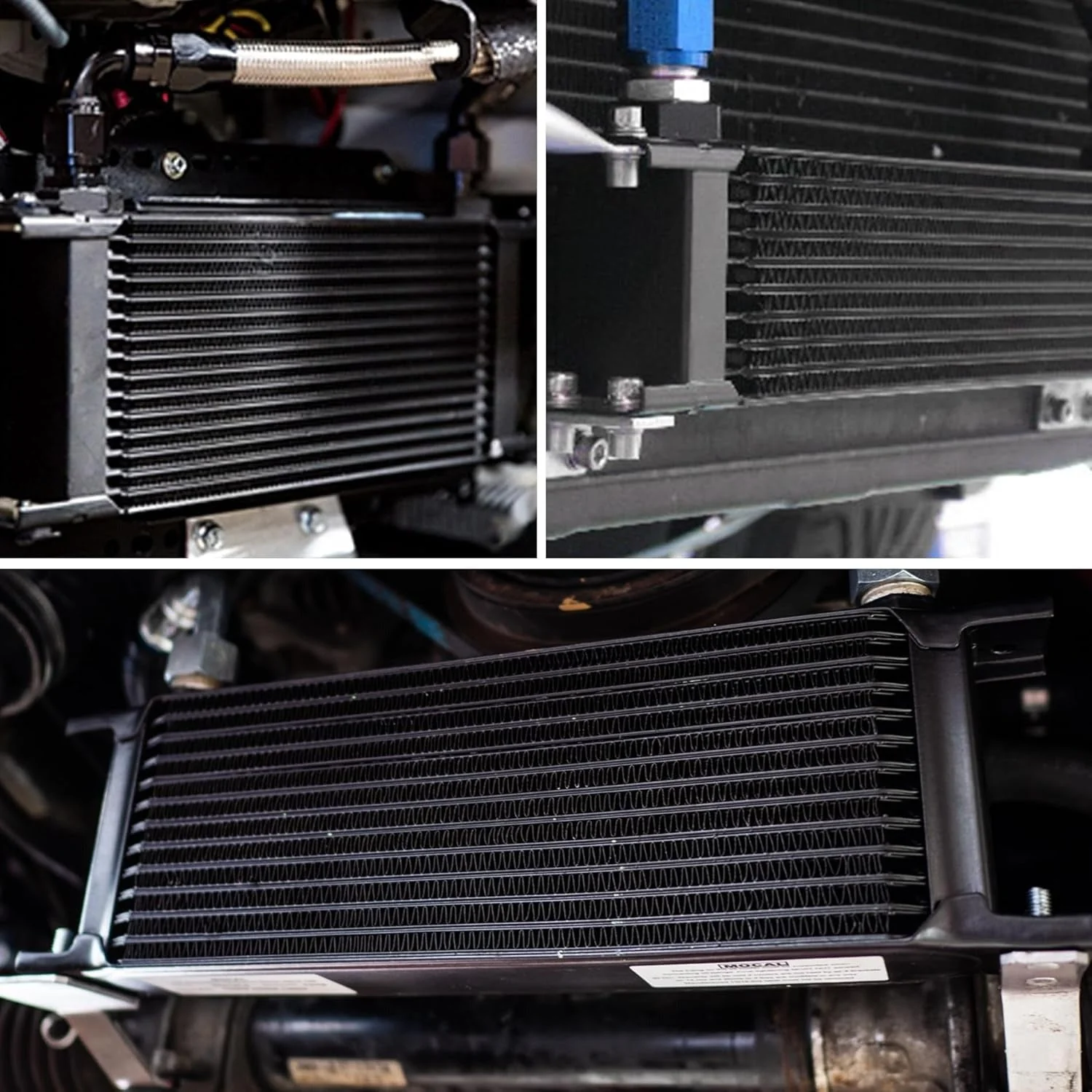

30-Row Stacked Plate Oil Cooler

Oil temperature plays a major role in engine protection and lubrication efficiency. The included 30-row stacked plate oil cooler is engineered to increase cooling surface area and maintain stable oil temperatures during:

• Off-road driving
• Towing
• High-RPM performance driving
• Hot climate operation

The stacked plate design provides higher cooling efficiency than traditional tube-and-fin coolers, while the aluminum alloy construction offers lightweight durability and corrosion resistance.

High-Pressure CPE Braided AN Hose System

A cooling system is only as reliable as the plumbing behind it.

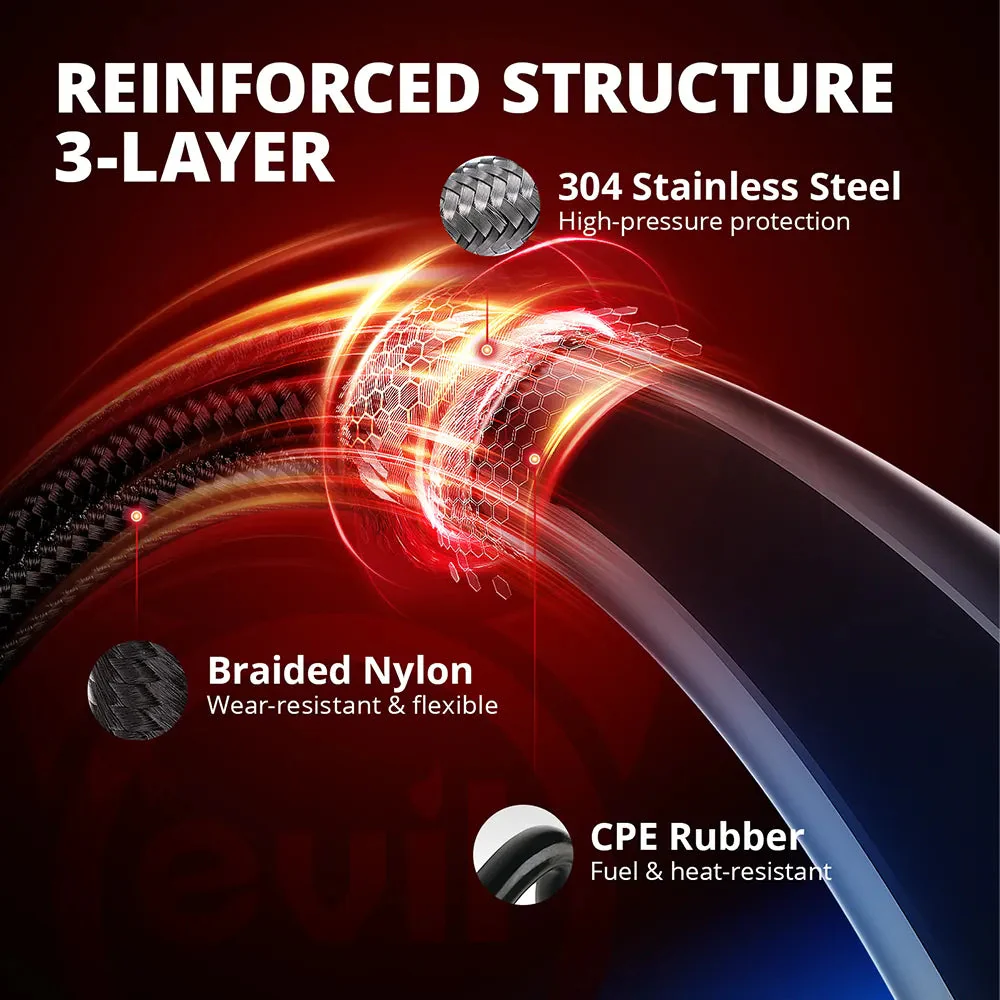

This kit includes a 20FT EVIL ENERGY CPE nylon braided fuel/oil line system built with:

• CPE inner core
• 304 stainless steel reinforcement
• Nylon braided outer layer

Designed to withstand high temperatures, pressure, vibration, and abrasion commonly found in off-road and performance engine bays.
