Name: EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line
Brand: EVIL ENERGY
SKU: antistatic-ptfe-fuel-hose-line
Availability: InStock

🚚 Free Worldwide Shipping on All Orders!Shop Now

Account

Home Store

EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line

Select Size

Select Length

From $14.49

Original: $41.39

-65%

EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line—

$41.39

$14.49

Select Size

Select Length

From $14.49

Original: $41.39

-65%

EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line—

$41.39

$14.49

The Story

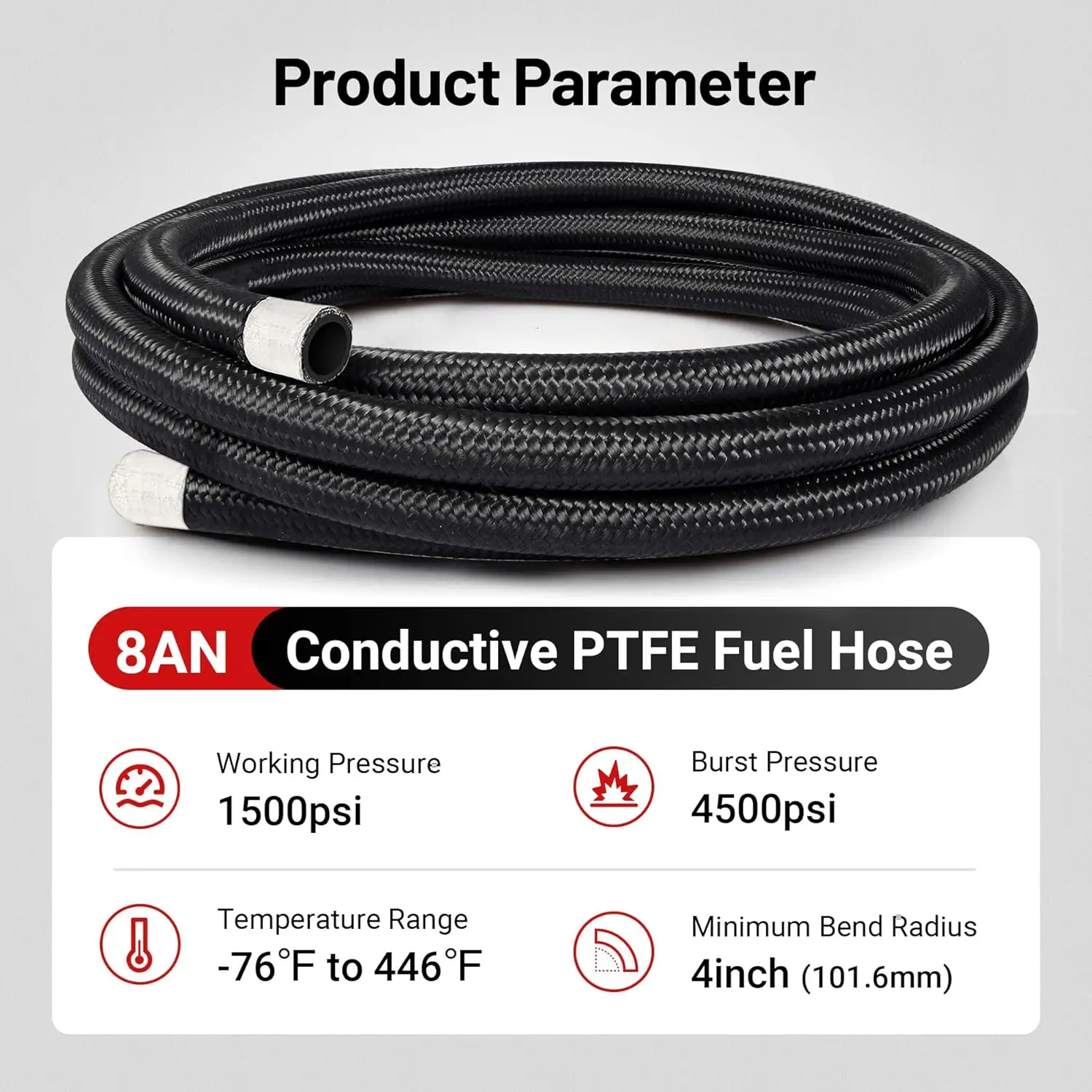

---!@!start!@!---Specifications---!@!end!@!---

Brand	EVIL ENERGY
Type	Conductive PTFE Fuel Hose
Length	10/20FT
Size	6/8/10AN

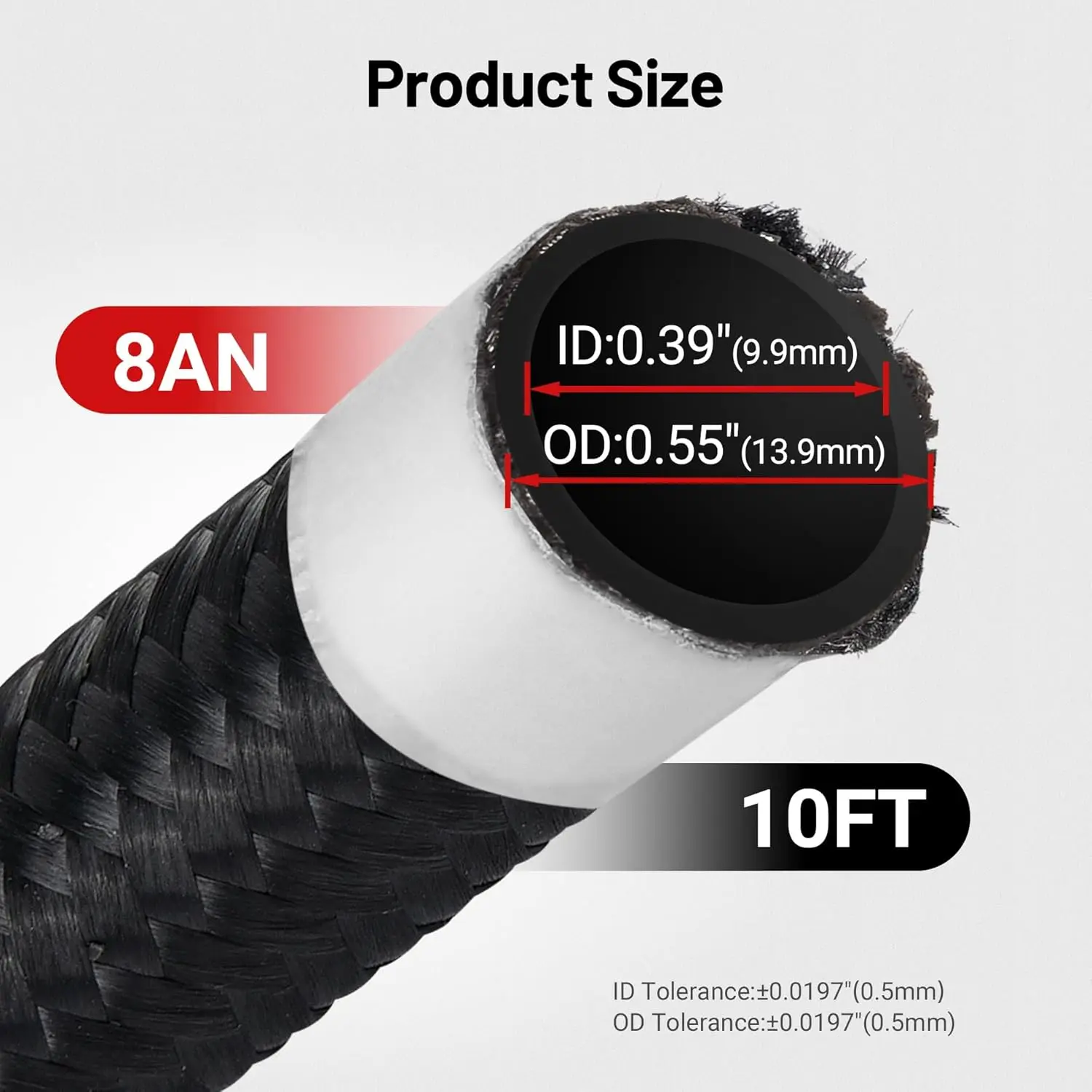

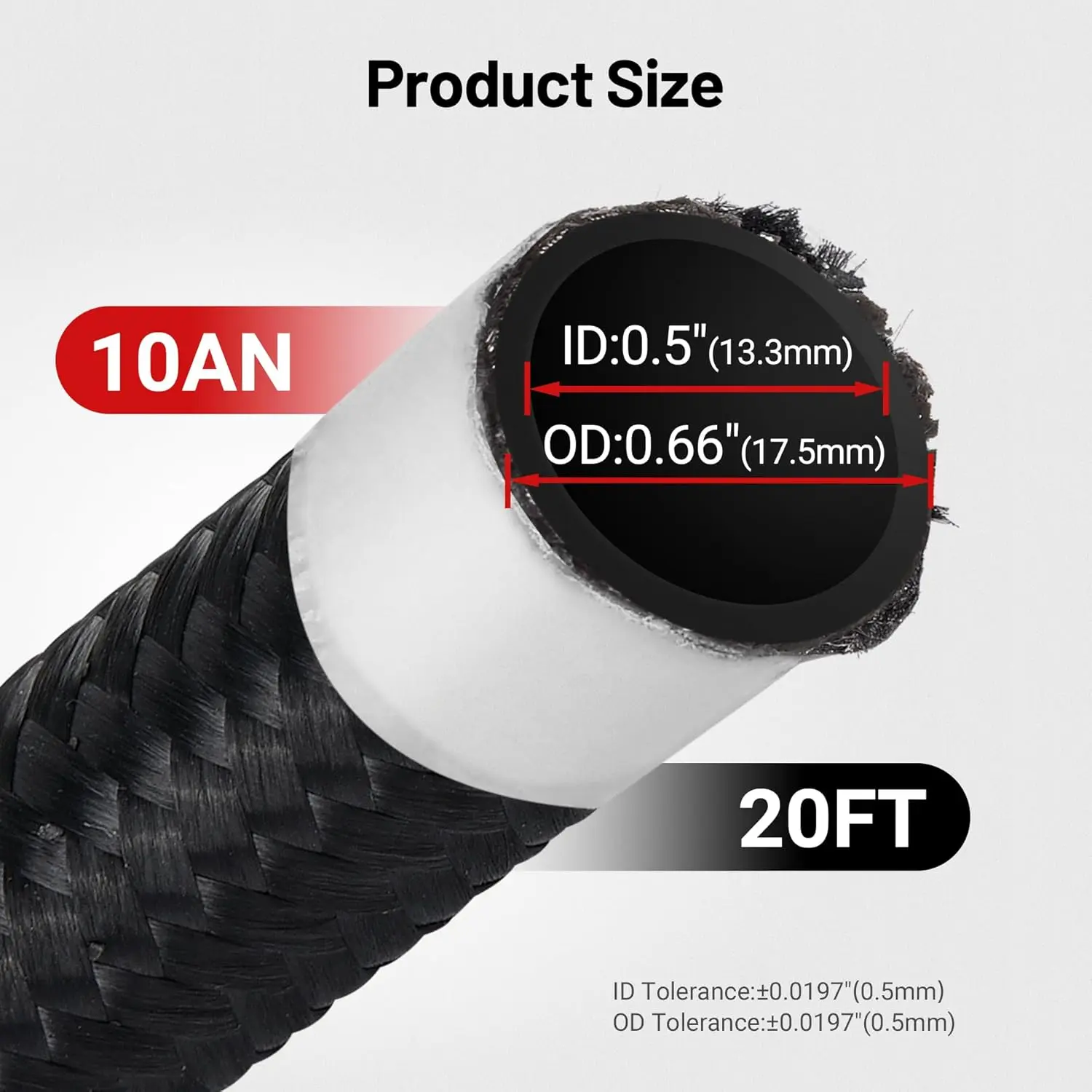

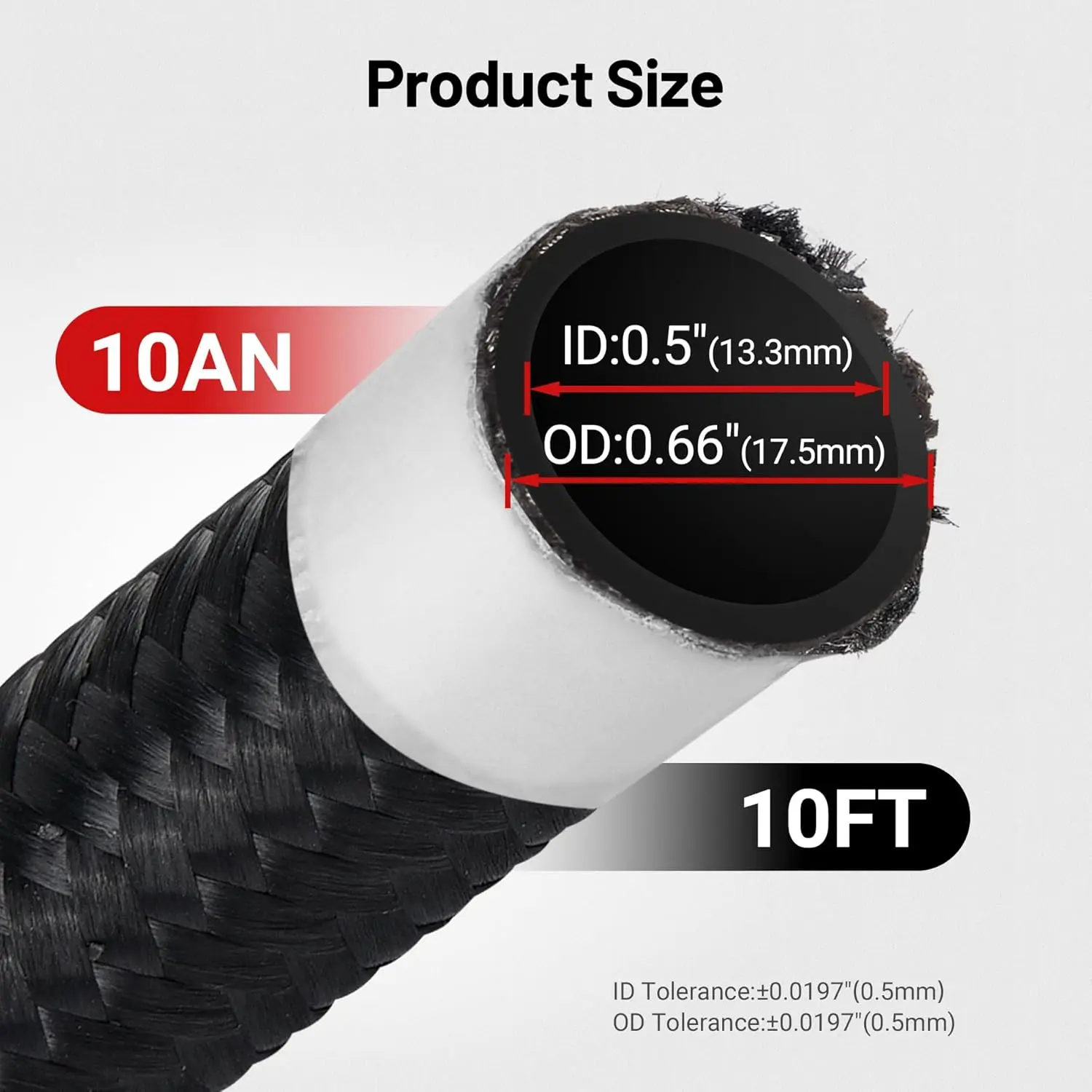

hose ID/OD	6AN:0.3 inch(8mm)/0.47 inch(11.8mm) 8AN:0.39 inch(9.9mm)/0.55 inch(13.9mm) 10AN:0.5 inch(13.3mm)/0.66 inch(17.5mm)
working temperature range	-76℉ to 446℉ (-60℃ to 230℃)
Max working pressure	6/8AN:1500 psi 10AN:1250 psi
Bursting pressure	6/8AN:4500 psi 10AN:3750 psi
Minimum bend radius	6AN:88.9mm(3.5inch) 8AN:101.6mm(4inch) 10AN:114.3mm(4.5inch)

Product Compare

SIZE

4AN

6AN

8AN

10AN

Length

10/20FT

5/10/20/25FT

5/10/20FT

Hose ID

0.197"(5mm)

0.315"(8mm)

0.394"(10mm)

0.511"(12.97mm)

Hose OD-Black

0.346"(8.78mm)

0.465"(11.81mm)

0.543"(13.79mm)

0.681"(17.29mm)

Hose OD-Silver

0.315"(8mm)

0.433"(10.99mm)

0.512"(13mm)

0.641"(16.28mm)

Min Bending Radius

2.5"(63.5mm)

3.5"(88.9mm)

4.0"(101.6mm)

4.5"(114.3mm)

Max Working Pressure

1500PSI

1250PSI

Bursting Pressure

4500PSI

3750PSI

---!@!start!@!---Description---!@!end!@!---

🔥 Upgrade to EVILENERGY Conductive PTFE Fuel Hose – The Smarter, Safer Choice!

Tired of risking engine fires from static buildup? Our carbon-lined conductive PTFE hose eliminates dangerous spark discharge, while delivering superior fuel resistance against ethanol, methanol, and race fuels. Reinforced for smooth bends and built to last, it outperforms rubber and standard PTFE—without the crazy cost. Don’t gamble with cheap hoses; secure your setup with EVILENERGY. Performance. Safety. Value.

Product Details

[Size and Installation] Installation instructions are included. Please measure before purchase!
[Temperature and Pressure Range]: 6/8/10AN fuel line working temperature range: -76℉ to 446℉ (-60℃ to 230℃).

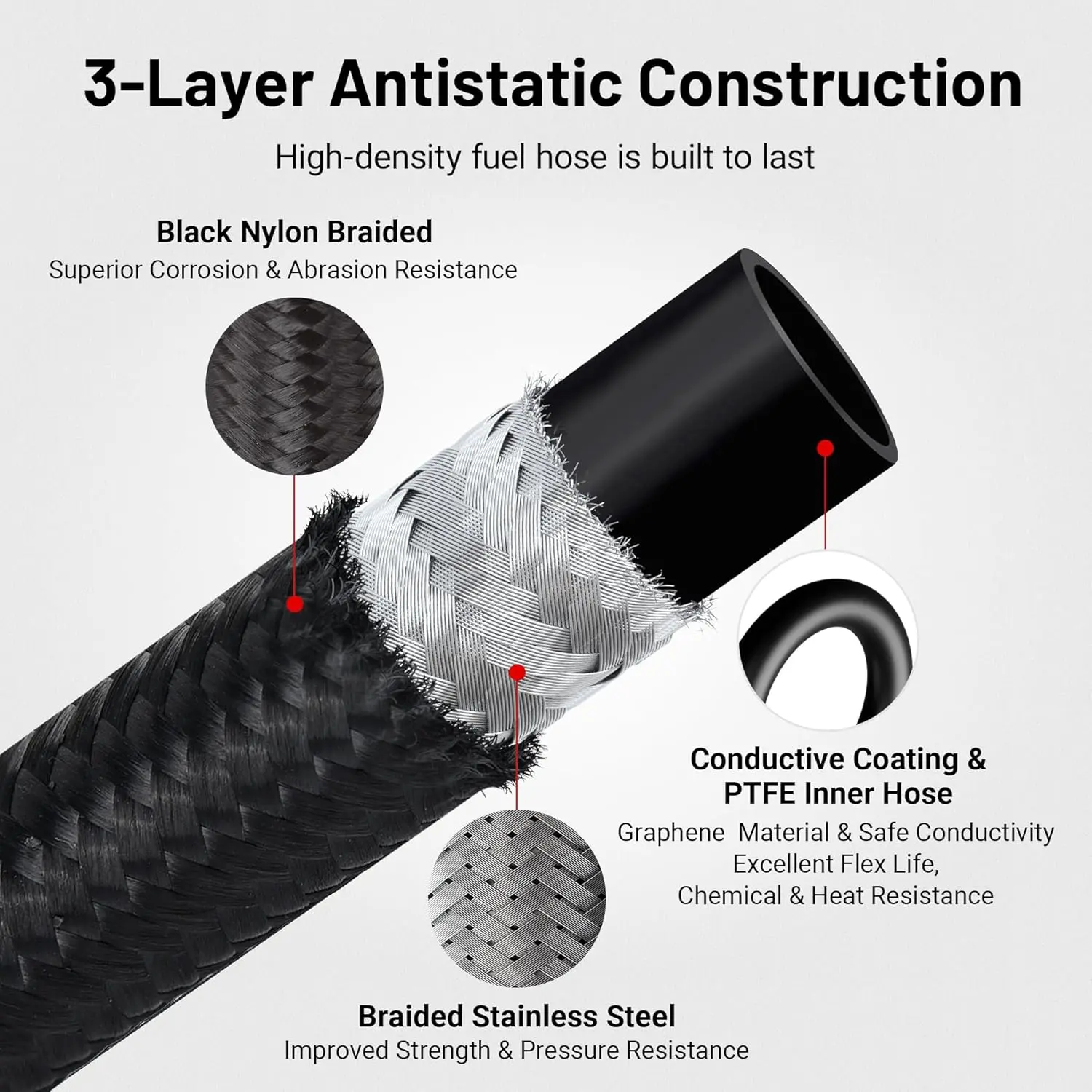

[Static-Safe Design] The fuel line incorporates a graphene-blended PTFE inner layer to help reduce static accumulation and minimize spark potential. This design enhances safety performance for use in flammable environments.
[Universal Compatibility]: This conductive PTFE braided fuel hose is compatible with transmission fluid, diesel, biodiesel, engine oil, E85 gasoline, methanol, water, diesel, and fuel. For flammable or explosive environments, we recommend using conductive PTFE fuel lines (anti-static, spark-proof for safety).
[Suitable for Widely Usage]: The PTFE hose can be used as fuel injection hose, boost line,carb fuel line, ls engine swap fuel line, fuel return line, vapor return line,vacuum line, fuel supply line, etc. braided fuel hose relatively hard, it can't be bend and folding in half. Professional installation is highly recommended.For optimal performance, we recommend using Evil Energy's PTFE fittings.
