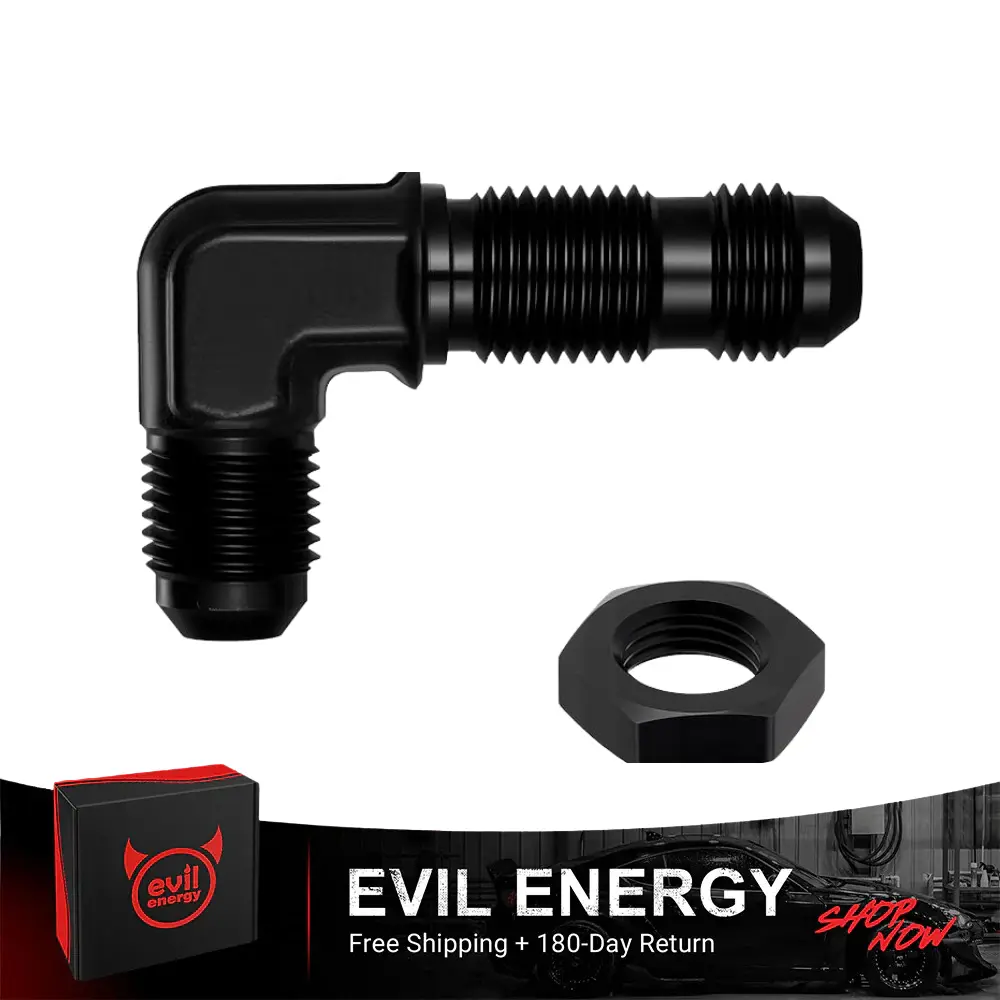

EVIL ENERGY AN Bulkhead Fitting Adapter Straight 45 90 Degree Aluminum Black

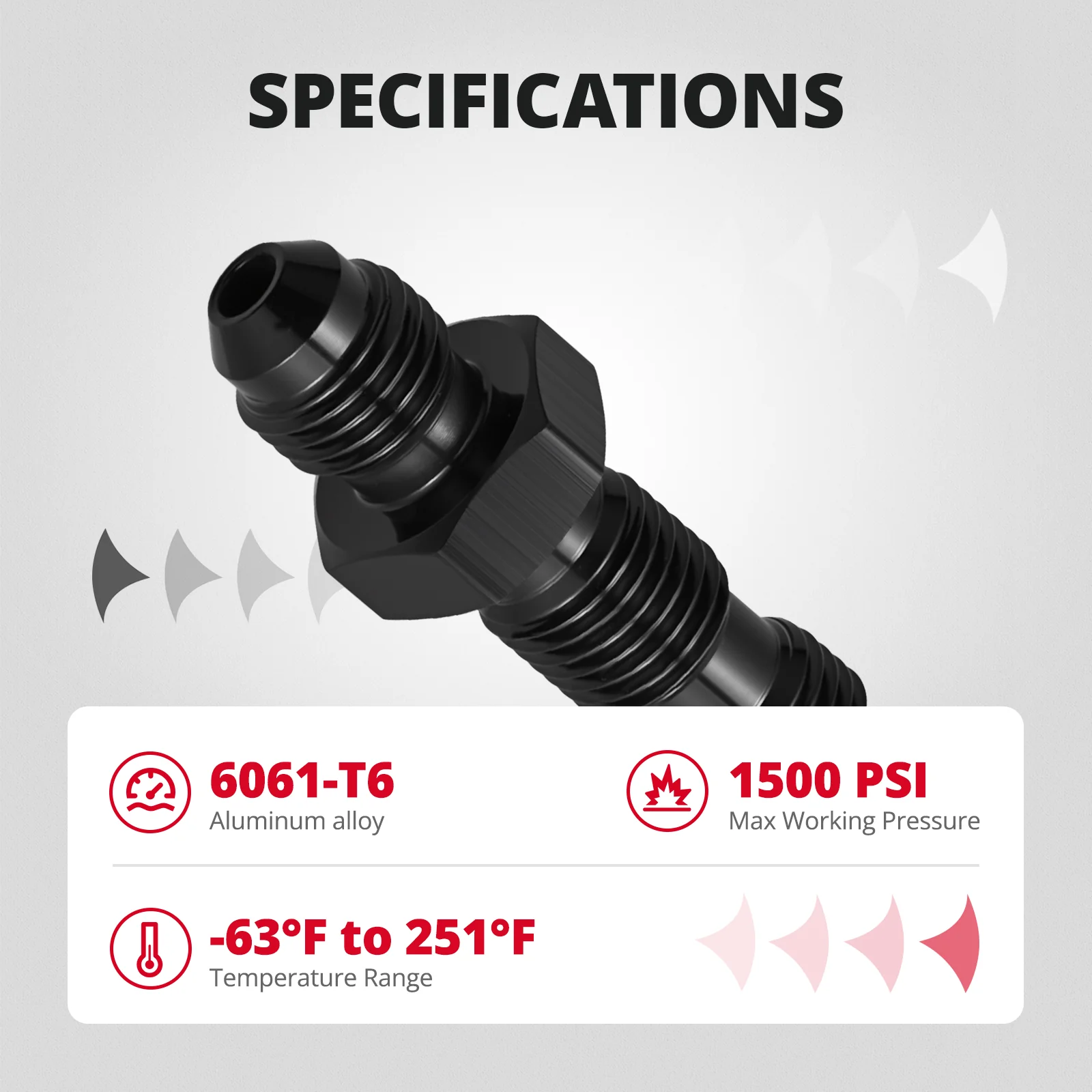

---!@!start!@!---Specifications---!@!end!@!---

Brand	EVIL ENERGY
Material	6061-T6 Aluminum Alloy
Color	Black Anodized
Available Sizes	3AN 4AN 6AN 8AN 10AN 12AN 16AN
Thread Size	3AN 3/8-24 UNF, 4AN 7/16-20 UNF, 6AN 9/16-18 UNF, 8AN 3/4-16 UNF, 10AN 7/8-14 UNF, 12AN 1 1/16-12 UNF, 16AN 1 5/16-12 UNF
Angle Options	Straight 45 Degree 90 Degree
Max Working Pressure	1500 PSI
Working Temperature	-63°F to 252°F
Seal Type	37 Degree AN Flare
Fitting Type	Bulkhead Fitting with AN Nut
Application	Fuel System Fuel Cell Return Line Firewall Pass Through

---!@!start!@!---Description---!@!end!@!---

Clean and Professional Bulkhead Installation
Designed for performance builds, this bulkhead fitting allows secure line routing through firewalls panels and fuel cells, creating a cleaner and safer system layout.

Flexible Routing with Multiple Angles
Available in straight 45 and 90 degree configurations, helping solve tight space challenges and reducing hose stress during installation.

High Strength and Durability
Constructed from 6061 T6 aluminum with anodized finish, delivering excellent resistance to corrosion vibration and long term wear in harsh engine environments.

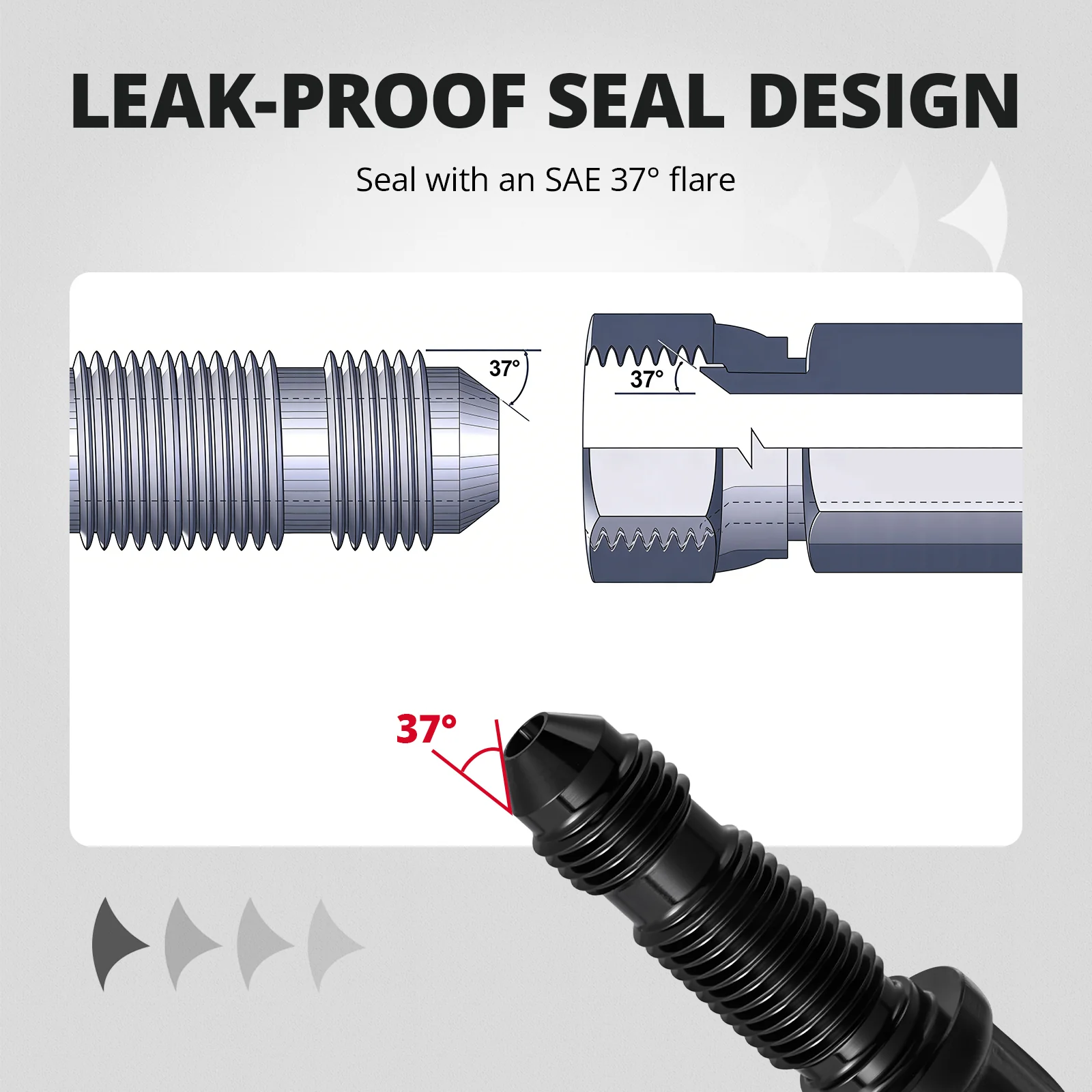

Leak Free Sealing Performance
Precision machined 37 degree AN flare connection ensures a tight metal to metal seal, reducing the risk of leaks under pressure.

Built for High Pressure Fuel Systems
With a 1500 PSI working pressure rating, this fitting is ideal for fuel delivery systems return lines and custom performance applications.
