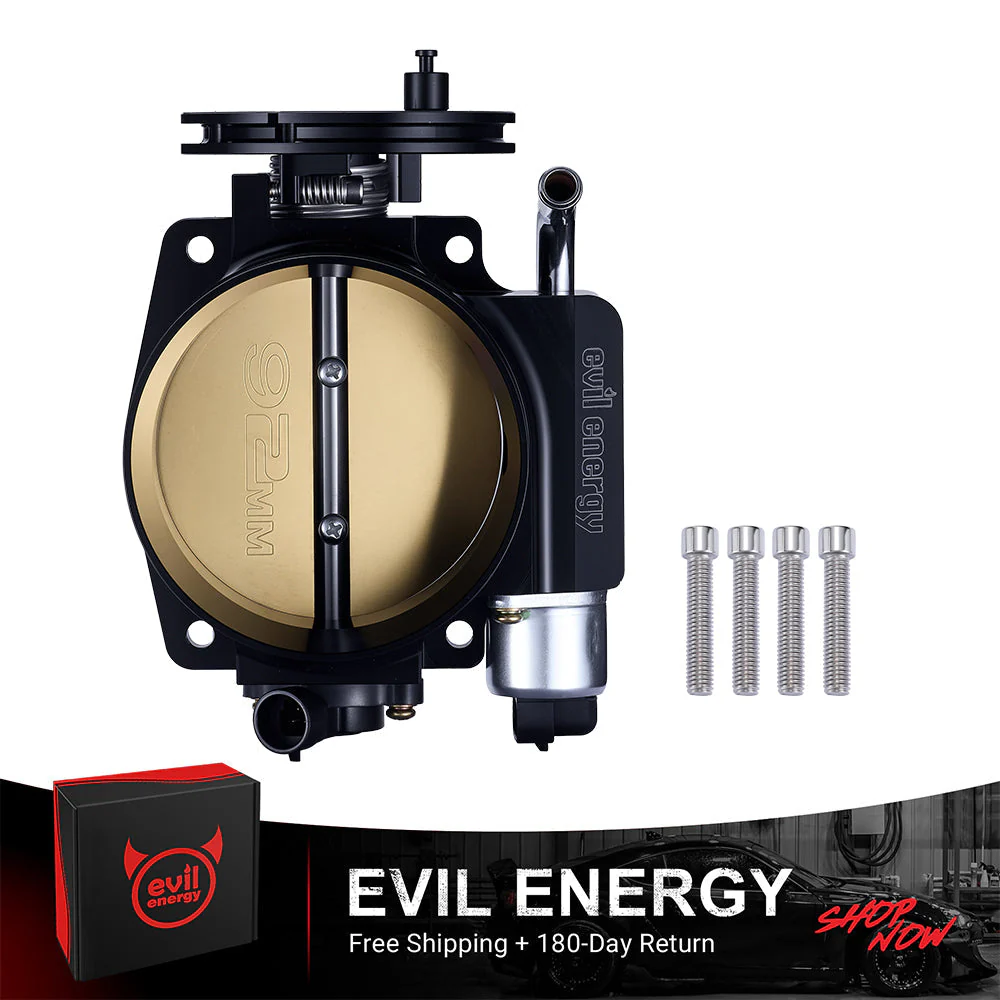

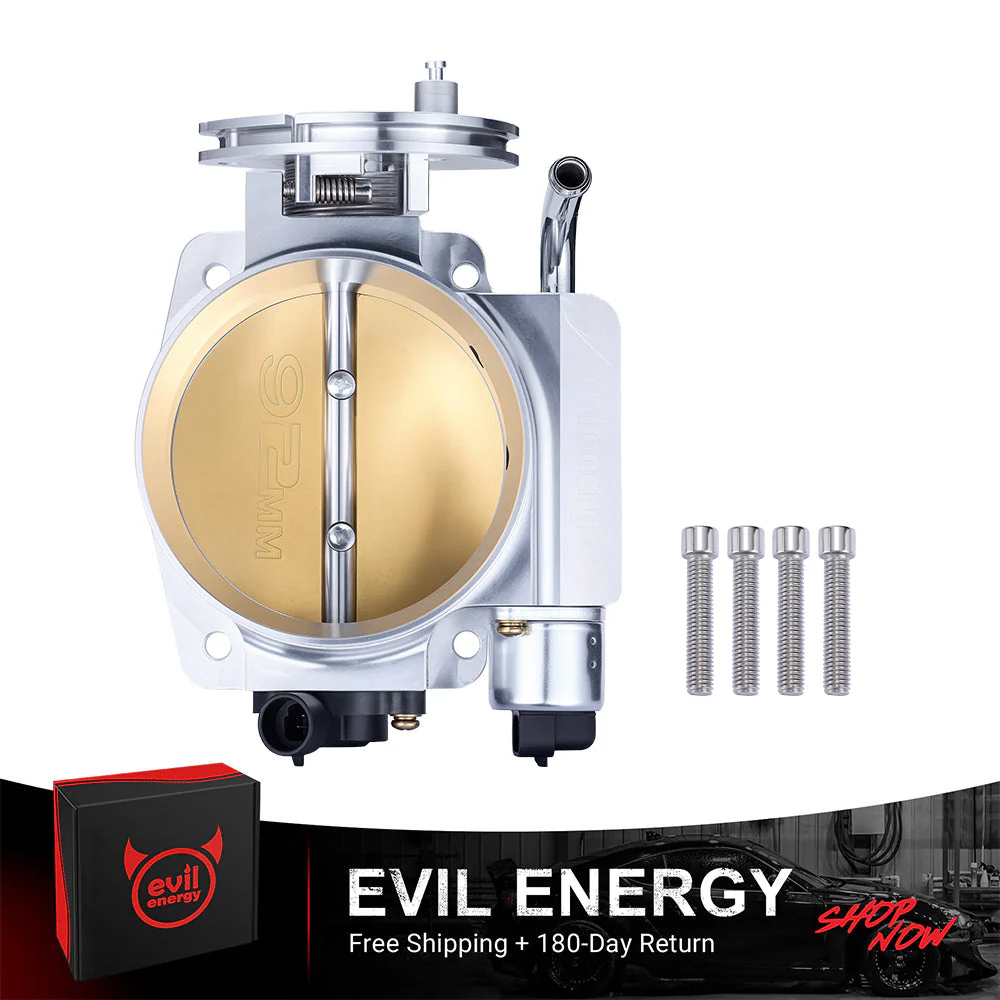

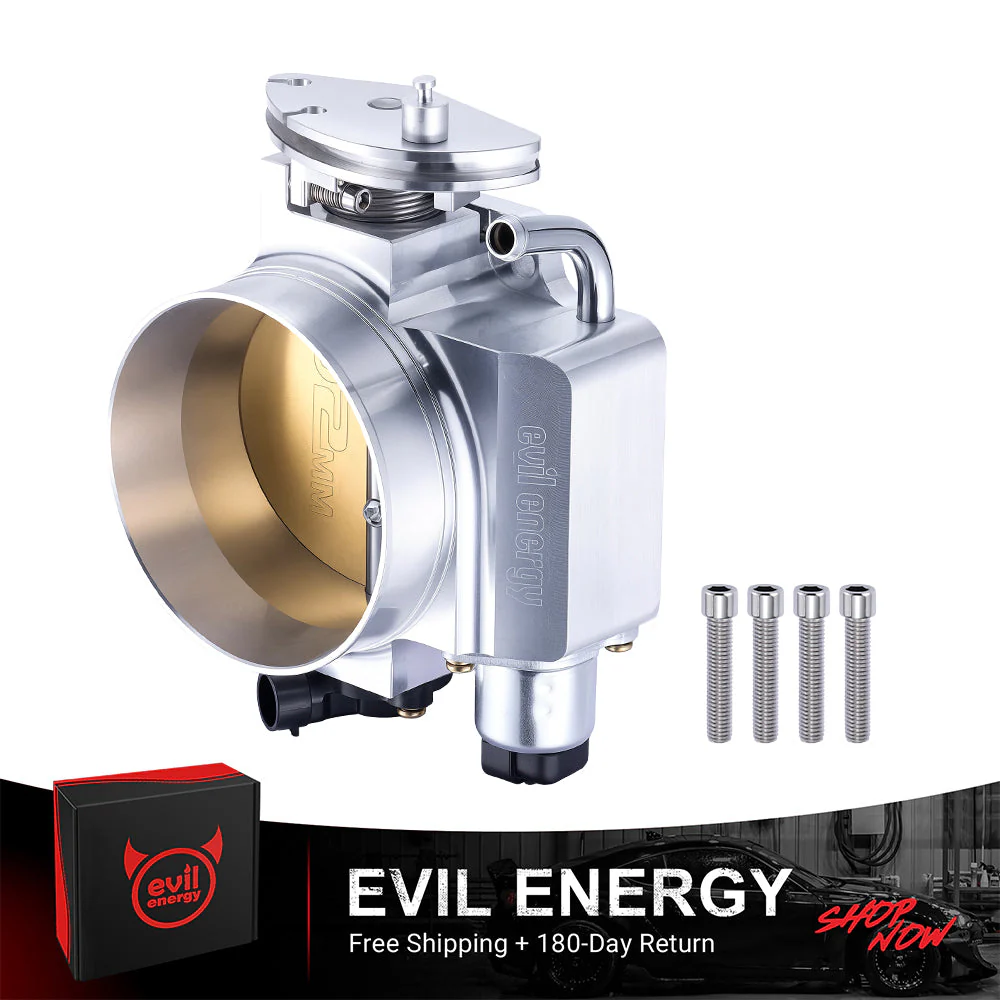

EVIL ENERGY 92MM Mechanical Throttle Body for LSX LS1 LS2 LS3 LS6 LS7 for GM Gen III with IAC 4 Bolt

---!@!start!@!---Specifications---!@!end!@!---

Brand	EVIL ENERGY
Billet Color	Black
Type	Mechanical throttle body
Engine	LSX LS1 LS2 LS3 LS6 LS7 for GM Gen III

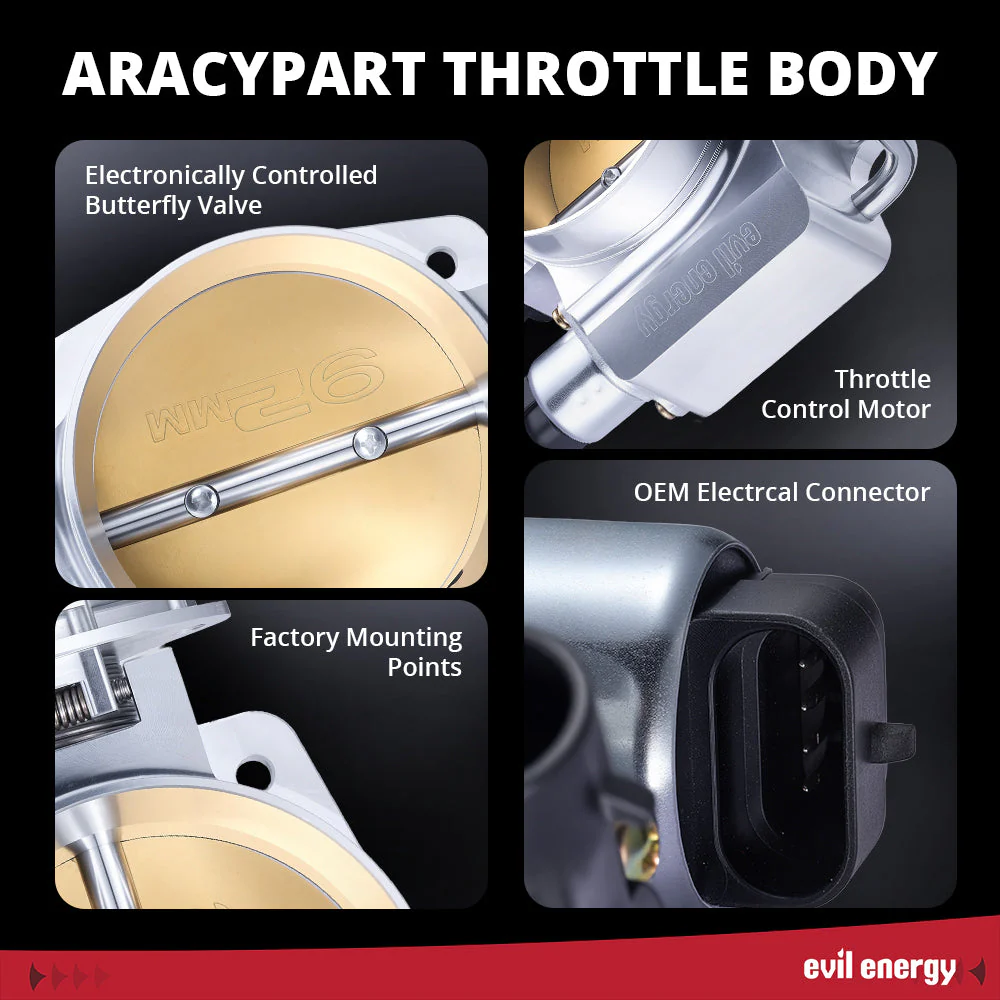

OEM Electrical Connector	4-Pin Connector (1×4 Layout)& 3-Pin Connector(3 Layout)
Idle Air Control Motor Included	Yes
TPS Included	No
Material	Aluminum alloy material
Throttle Bore	104.5MM
Throttle Diameter (mm)	92mm
TPS hardware specs	No
Warranty	1-Year



Idle Air Control Motor（IAC）Specification

Type	IAC
Leakage Rate	Less than 15 KPA at - 60 KPA pressure
Performance Parameter	At 12V and 10N load, displacement is 0.0417±0.0158 MM
Inductance	33.5±6 MH
Resistance	53Ω±6Ω
Current	≤230 mA
Operating Temperature	- 40°C to +125°C
Maximum Travel	Accurate to ±0.04 MM, max 8.5 MM (204 steps)

---!@!start!@!---Description---!@!end!@!---

• Compatibility: The EVIL ENERGY 92mm throttle body with IAC (Idle Air Control Motor) fits GM Gen III LSX, LS1, LS2, LS3, LS6, and LS7 engines, making it a high-performance GM LS throttle body upgrade for street or racing applications.

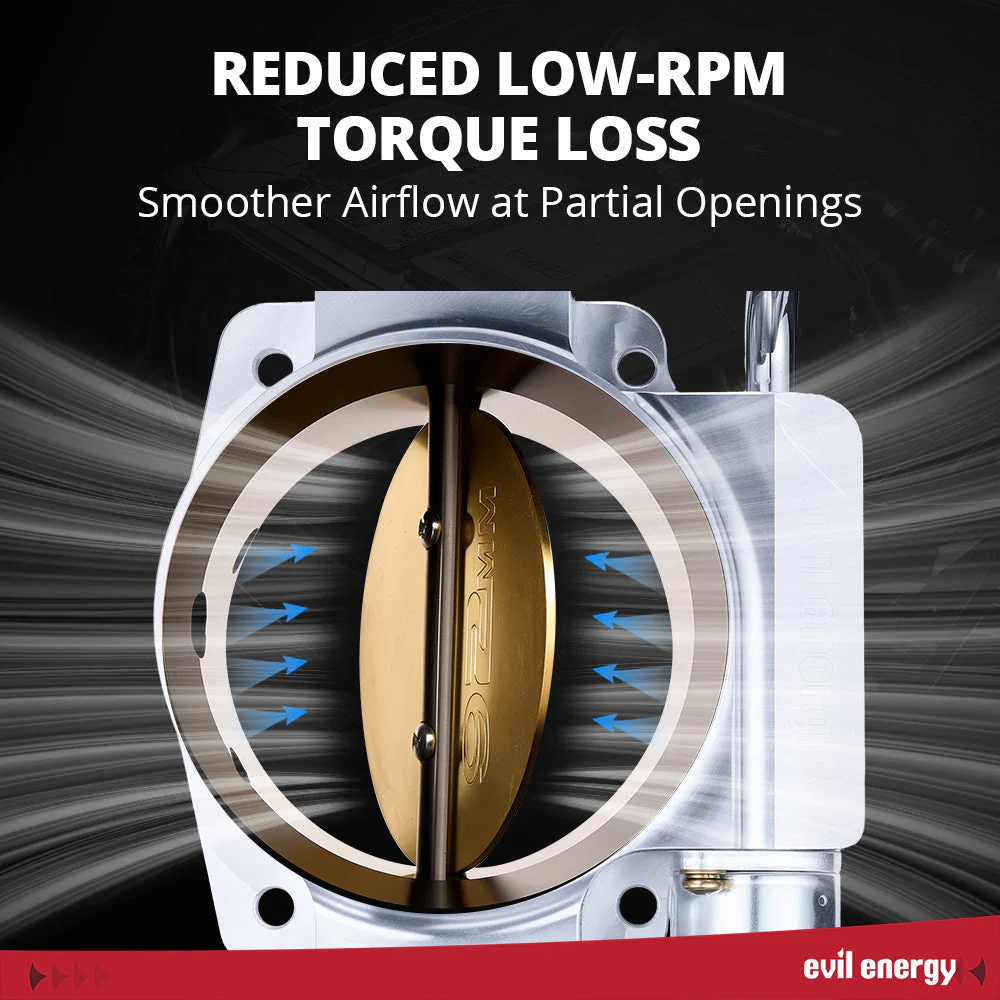

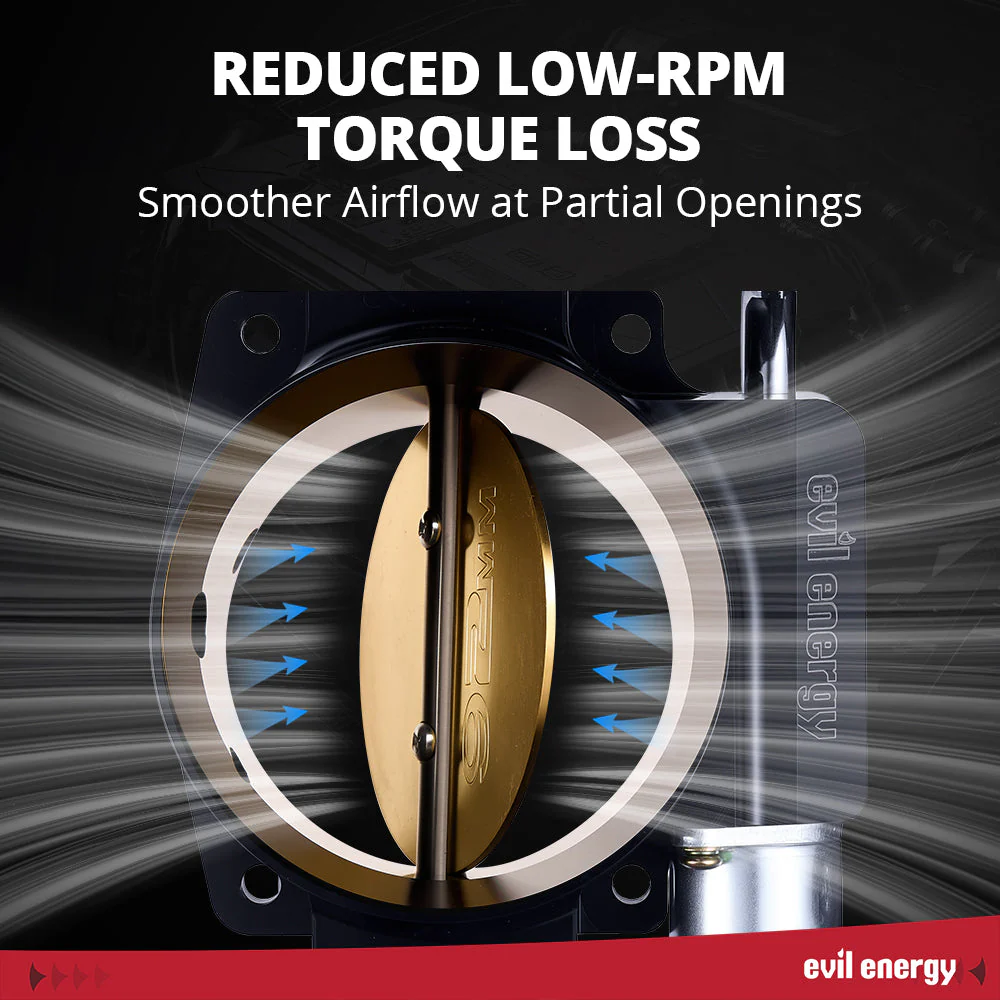

• Optimized Valve Shape: Our EVIL ENERGY 92mm throttle body features an optimized valve shape to reduce potential torque losses at low RPMs.

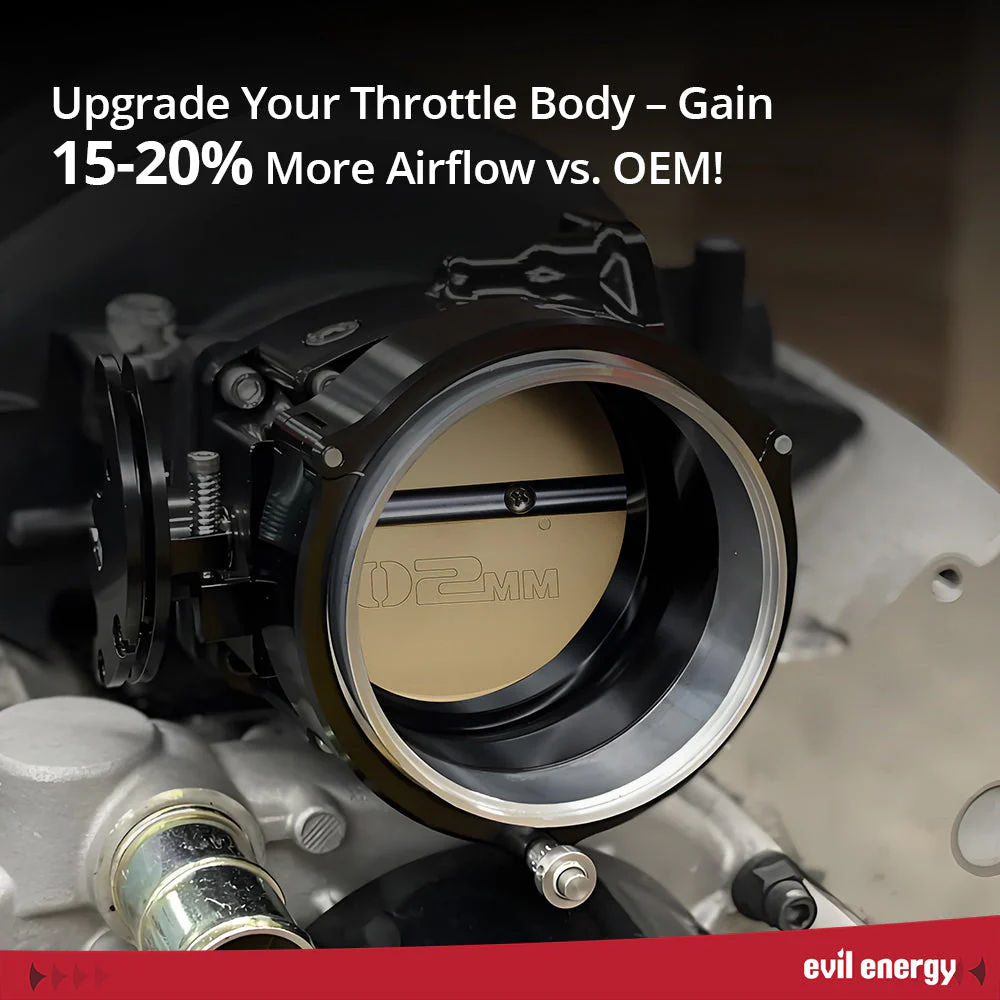

• Actual Flow Increase: Taking 92mm to 102mm throttle body upgrade as example –For naturally - aspirated engines, due to manifold negative pressure limitations, the actual intake air volume can be increased by approximately 15% - 20%. For example, in a Toyota 3.5L V6 engine, the measured flow increase is 18%. For turbocharged engines, under high-boost conditions (pressure > 1.5Bar), it can approach the theoretical value of 23% as the forced induction by the turbocharger weakens the negative pressure constraint. Ideal for GM LS throttle body upgrades on LS1, LS2, LS3, LS6, and LS7 engines.
• Response Speed: The EVIL ENERGY 92mm throttle body has a response speed of about 200ms when accelerating (opening wider) and also about 200ms when decelerating (closing down). The 92mm throttle body is intended for a huge horsepower increase along with improved throttle response, and to make the engine more flexible. Manufactured to strict OE standards, this performance throttle body ensures reliable performance for GM LS throttle body upgrades on LS1, LS2, LS3, LS6, and LS7 engines.
• Well - Designed: The throttle body is well - designed with careful consideration of every detail, ensuring optimal performance and reliability.

FAQs

1. What is a 92mm throttle body?

A 92mm throttle body is a high-flow performance throttle body designed to regulate airflow into the engine, improving horsepower and throttle response for GM LS throttle body upgrades on LS1, LS2, LS3, LS6, and LS7 engines.

2. Which engines are compatible with this throttle body?

The EVIL ENERGY 92mm throttle body fits GM Gen III LSX, LS1, LS2, LS3, LS6, and LS7 engines, making it an ideal upgrade for street, racing, or performance builds.

3. What performance gains can I expect?

Upgrading from 92mm to 102mm throttle body can increase airflow by 15–20% for naturally aspirated engines and up to 23% under high-boost turbo conditions, improving horsepower, throttle response, and engine flexibility.

4. How fast is the throttle body response?

This performance throttle body has a response speed of about 200ms during acceleration and deceleration, providing immediate throttle feedback and improved engine control.

5. Is this throttle body reliable and durable?

Yes. The EVIL ENERGY 92mm throttle body is manufactured and tested to strict OE standards, ensuring long-term reliability and consistent performance for GM LS throttle body upgrades.
