EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

---!@!start!@!---Specifications---!@!end!@!---

Brand	EVIL ENERGY
Product Type	90° Swivel AN Male to NPT Pipe Adapter
Material	6061-T6 Aluminum Alloy
Finish	Black Anodized
Angle	90 Degree Elbow (Swivel Design)
AN Side Sealing	37° Flare (Metal-to-Metal Seal)
NPT Side Sealing	60° Tapered Pipe Thread (Sealant or PTFE Tape Recommended)
Max Working Pressure	1500 PSI
Working Temperature Range	-40℉ to 250℉

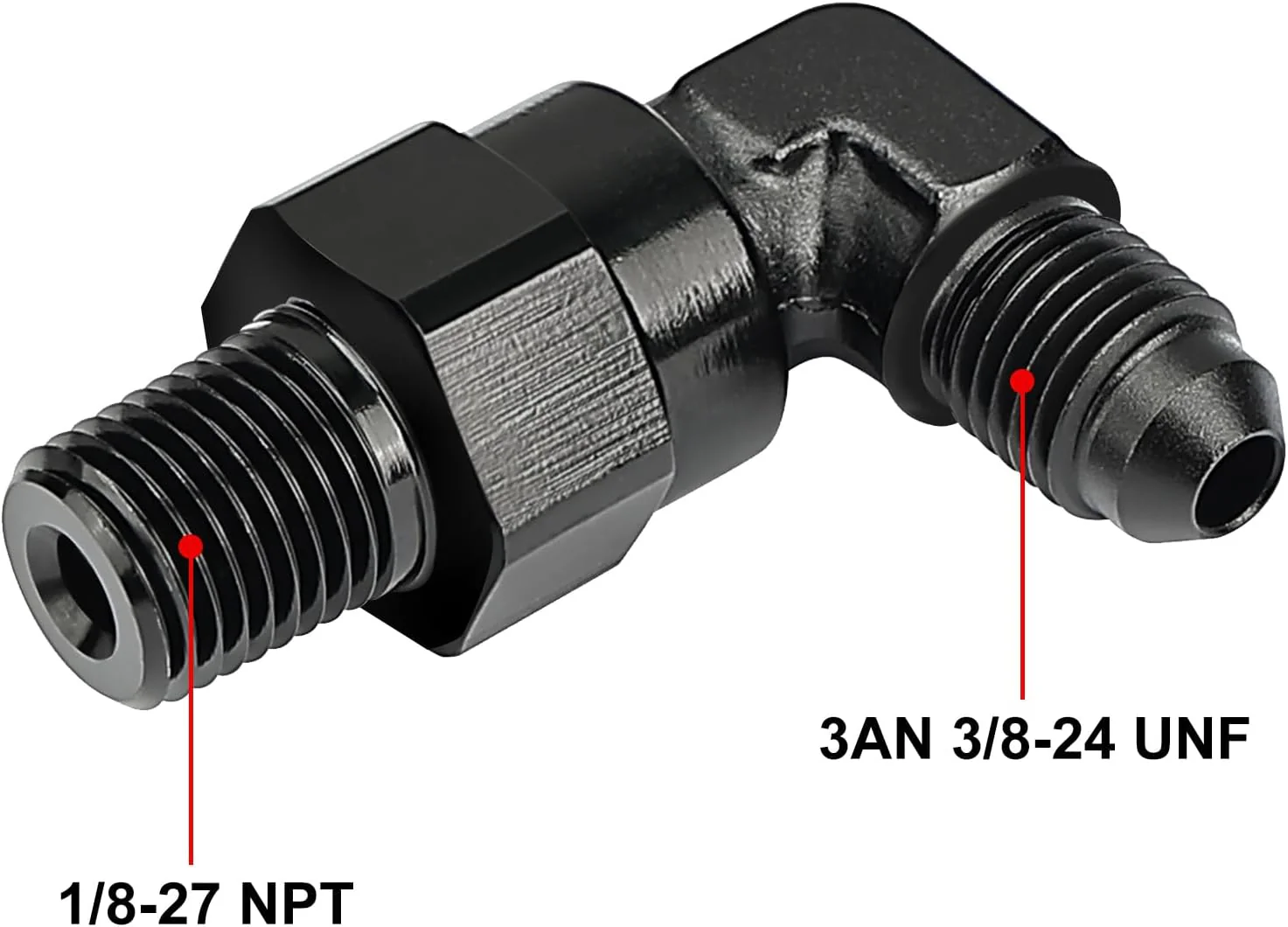

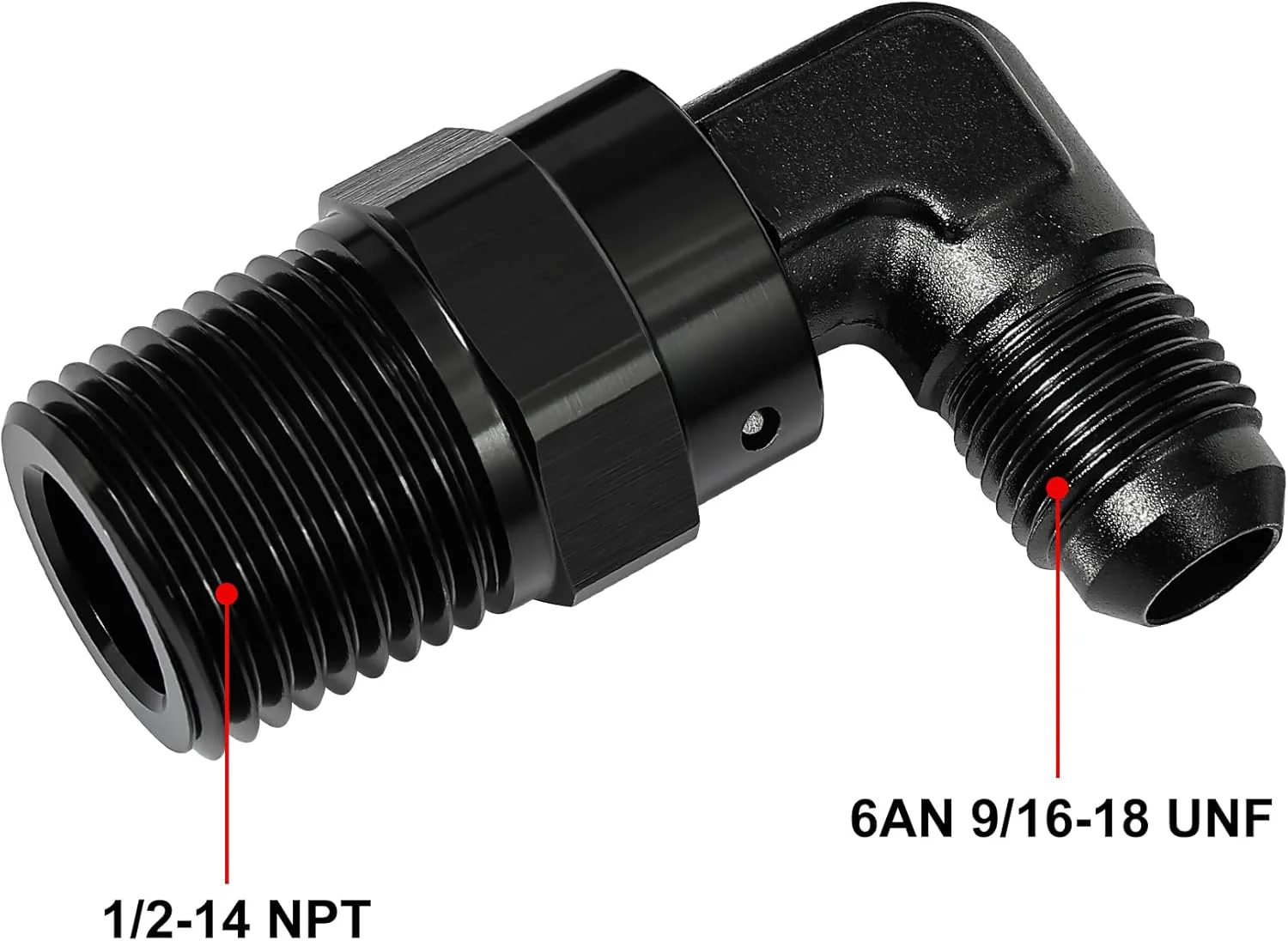

Available Size Options	3AN (3/8-24 UNF) to 1/8-27 NPT 4AN (7/16-20 UNF) to 1/8-27 NPT, 1/4-18 NPT 6AN (9/16-18 UNF) to 1/8-27 NPT, 1/4-18 NPT, 3/8-18 NPT, 1/2-14 NPT 8AN (3/4-16 UNF) to 3/8-18 NPT, 1/2-14 NPT 10AN (7/8-14 UNF) to 3/8-18 NPT, 1/2-14 NPT

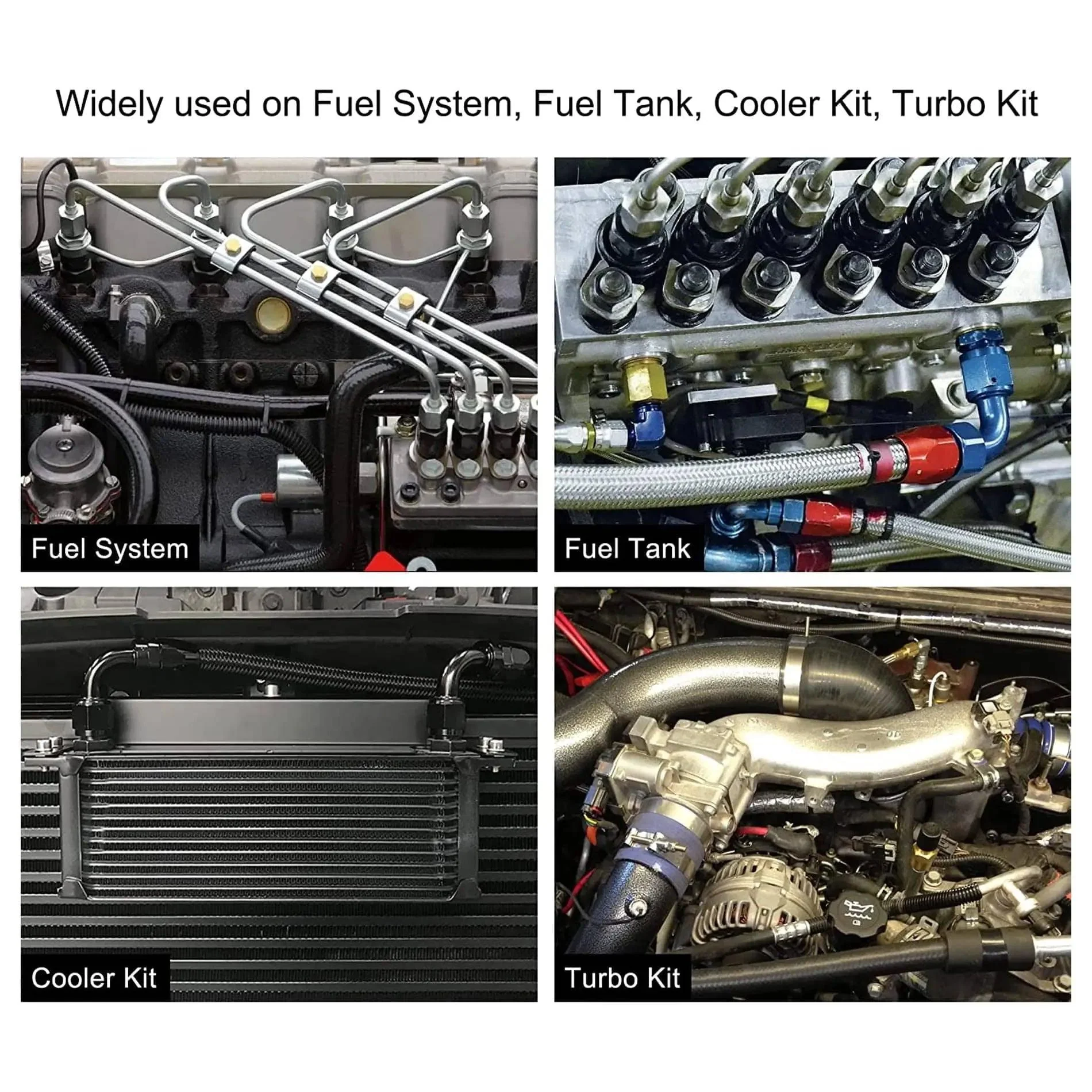

Applications	Fuel pumps, fuel pressure regulators, vacuum reservoirs, fuel supply lines, oil and cooling systems

---!@!start!@!---Description---!@!end!@!---

Swivel Design Solves Real-World Installation Problems

Traditional fixed 90° fittings often require multiple adjustments to achieve proper alignment. This swivel AN to NPT adapter allows precise orientation after thread engagement, reducing hose twist, stress, and the risk of leaks.

Dual-Seal Engineering for High Reliability

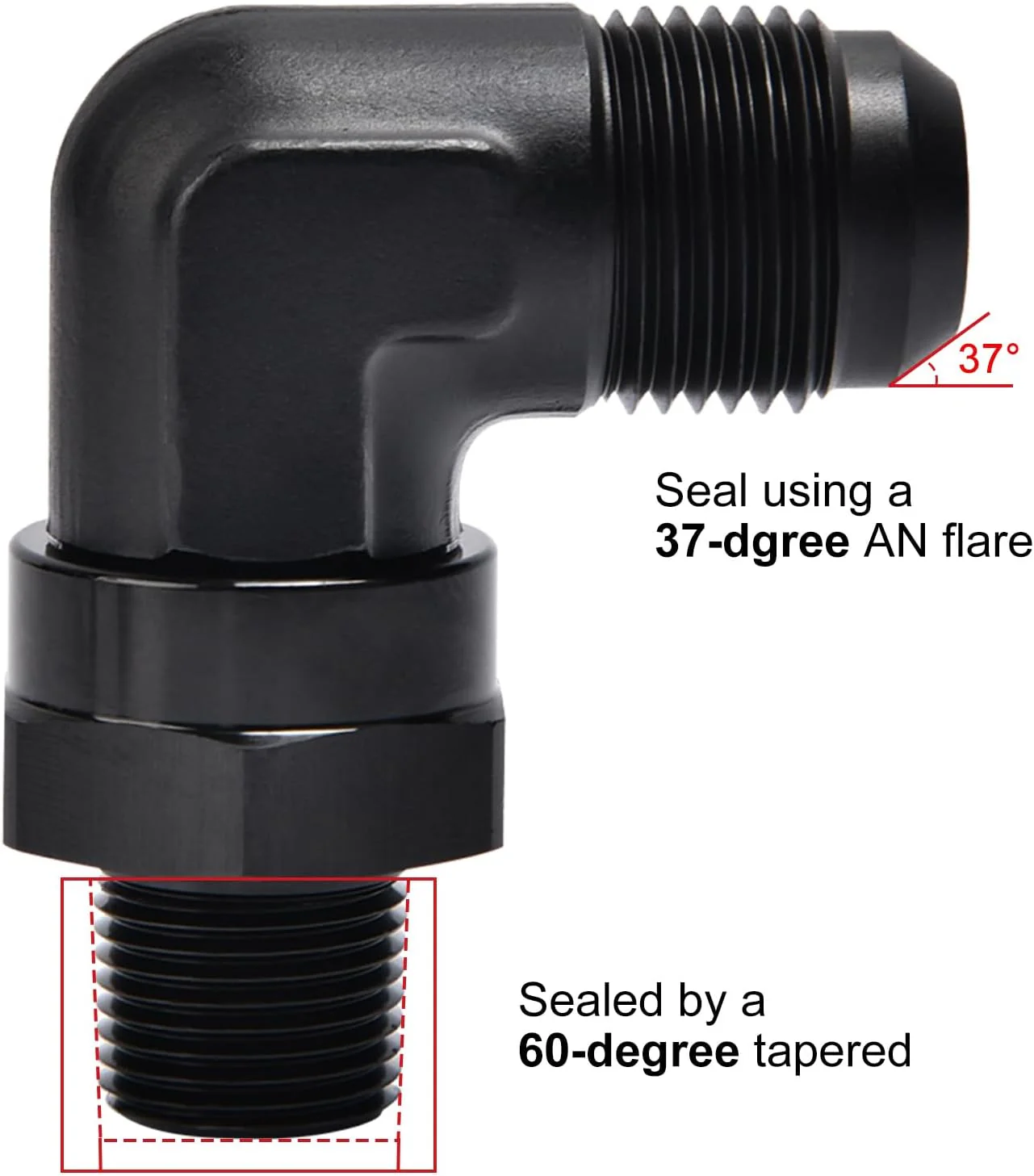

The AN side uses a precision-machined 37° flare for secure metal-to-metal sealing. The NPT side features tapered 60° pipe threads that create a tight mechanical seal under torque. For optimal performance, thread sealant or PTFE tape is recommended on the NPT side.

Built for High-Pressure Performance Systems

Rated up to 1500 PSI and operating between -40℉ and 250℉, this fitting supports demanding fuel injection systems, hard-wired fuel pumps, turbo oil feeds, and aftermarket regulator setups.

Bridges AN Hose Systems to Pipe Ports

Many pumps, regulators, and reservoirs use NPT ports, while performance fuel lines use AN fittings. This adapter provides a clean and secure transition between the two standards, simplifying custom builds and upgrades.

Lightweight Strength with Corrosion Resistance

Manufactured from 6061-T6 aluminum alloy, offering excellent strength-to-weight ratio. The black anodized coating enhances corrosion resistance while maintaining a clean, aggressive look for street or track builds.
