EVIL ENERGY 750 CFM 4-Barrel Carburetor Complete Kit, Manual Choke Air Valve Secondary for GM Ford Chrysler V8

---!@!start!@!---Specifications---!@!end!@!---

Brand	EVIL ENERGY
Core Material	6061-T6 Aluminum Alloy (Carburetor/Regulator/Pump); Aluminum Housing+Stainless Steel Filter Element (Filter)
Carburetor Finish	Satin
Carburetor Barrels	4
CFM Rating	750
Carburetor Flange	Square bore
Choke Type	Manual Control
Secondary Throttle Type	Air Valve-Controlled Secondary
Carburetor Fuel Inlet	Single
Carburetor Calibration	Main Jets:#113 Secondary Jets:#107 Accelerator Pump Nozzle:0.031 inch Metering Rods:0.071" x 0.047" Power Valve:Metering rod system
Venturi Diameter	1.44 inch
Throttle Bore Diameter	Primary/Secondary: 1.69 inch (both)
Carburetor Height	3.25 inch
Fuel Pump Type	External Gear-type Electric Fuel Pump
Pump Inlet/Outlet	3/8-inch (both)
Pump Voltage	12V-13.5V
Pump Closed Pressure	14PSI
Pump Flow Rate	91.1-97.8GPH/345-370LPH(10-11PSI&5.6-6.0A);
Pump Max Power/Temp Range	88W; -68°-194°F
Fuel Pressure Regulator	5-12PSI Adjustable (Set Screw); 1/8" NPT Gauge Port + 2×AN6ORB to AN6 Ports
Filter Filtration Grade	40 Micron + 100 Micron (Dual Filter Kit)
Filter Adapter Sizes	1/2-inch, 3/8-inch, 5/16-inch Barb Fittings Included
Fuel Compatibility	Gasoline, Diesel
Universal Compatibility	GM/Ford/Chrysler AT Shift Linkage; Chevy 350(SBC) & Most Moderately Modified V8 Engines; All Carburetor Systems
Remanufactured	No (100% Brand New Components)
Complete Kit Package	750CFM 4-Barrel Carburetor*1 20FT×5/16" Rubber Fuel Line*1 40 Micron Fuel Filter With Brackets/Barb Fittings 100 Micron Fuel Filter With Brackets/Barb Fittings AN6-5/8-20UNF Short Adapter*1 5-12PSI Fuel Pessure Regulator*1 Electric Fuel Pump*1 0° 6AN-5/16" Adapter*2 90° 6AN-5/16" Adapter*2 Installation Hardware (Studs/Clamps/Gaskets/Springs)

---!@!start!@!---Description---!@!end!@!---

Master Your Fuel System

• Installation: Step-by-Step: How to Install an EVIL ENERGY Carburetor
• Tech Talk: How Does a Carburetor Actually Boost Performance?
• Troubleshooting: Eliminate Cold Start Problems with Manual Choke Tuning
• Expert Review: Watch the Full 750 CFM Technical Teardown

Core Features & Performance Design

At the heart of this kit is the EVIL ENERGY Carburetor, crafted from brand-new, non-remanufactured satin-finish aluminum for long-term durability.

• All-In-One Solution: Carburetor + fuel pump + regulator + dual filters + full adapters/hardware—no additional parts needed
• Plug-and-Play Calibration: Factory-set for street performance, minimal fine-tuning required for most V8 engines
• Precision Performance: Manual choke for tactile cold-start control; air valve secondaries for smooth, progressive acceleration
• Durable Construction: 6061-T6 aluminum components; stainless steel filter elements; leak-proof O-ring seals
• Universal Fitment: Compatible with GM/Ford/Chrysler AT linkages and most moderately modified V8s (Chevy 350 SBC, etc.)
• High-Capacity Fuel Delivery: 97.8GPH max pump flow + adjustable regulator ensures no fuel starvation under load

Introducing the EVIL ENERGY 750 CFM Carburetor Complete Upgrade Kit—engineered for performance enthusiasts seeking precise control and enhanced airflow for moderately modified V8 engines. This all-in-one kit pairs a high-flow 750 CFM 4-barrel carburetor with premium fuel system accessories, eliminating the need to source individual components. It ensures a streamlined, reliable upgrade for muscle cars, hot rods, and custom street builds.

At EVIL ENERGY, we believe that a high-quality Aluminum 4-Barrel Carburetor shouldn't require paying a 'brand tax'. We are committed to providing feature-rich products that allow you to invest in performance rather than just a logo.

• Precision Control: Features a Manual Choke Carburetor design, perfect for performance-focused drivers who prefer hands-on cold-start adjustments.
• Smooth Acceleration: The Air Valve-Controlled Secondary system delivers progressive throttle response, making this 750 CFM 4-Barrel Carburetor ideal for both spirited cruising and street driving.
• Premium Internals: To ensure reliability, we use high-quality brass floats and a specialized metering rod system. The float bowl is secured with composite nylon-style screws for superior sealing and vibration resistance.

• Factory Calibrated: Optimized for street performance out of the box with #113 main jets, #107 secondary jets, and a 0.031-inch accelerator pump nozzle.

Audience & Application Scenarios

This 4-Barrel Carburetor is designed for DIY builders and professional tuners alike. It is particularly suited for:

• Classic V8 Restorations: A perfect fit for GM, Ford, and Chrysler automatic transmission shift linkage assemblies.
• Performance Upgrades: Ideal for enthusiasts upgrading from a smaller 750 CFM carburetor to gain better top-end power on moderately modified engines.
• Beginner Tuners: Includes a comprehensive manual with troubleshooting and step-by-step instructions, making it the best EVIL ENERGY Carburetor for those new to fuel system maintenance.

All-In-One Hardware Kit

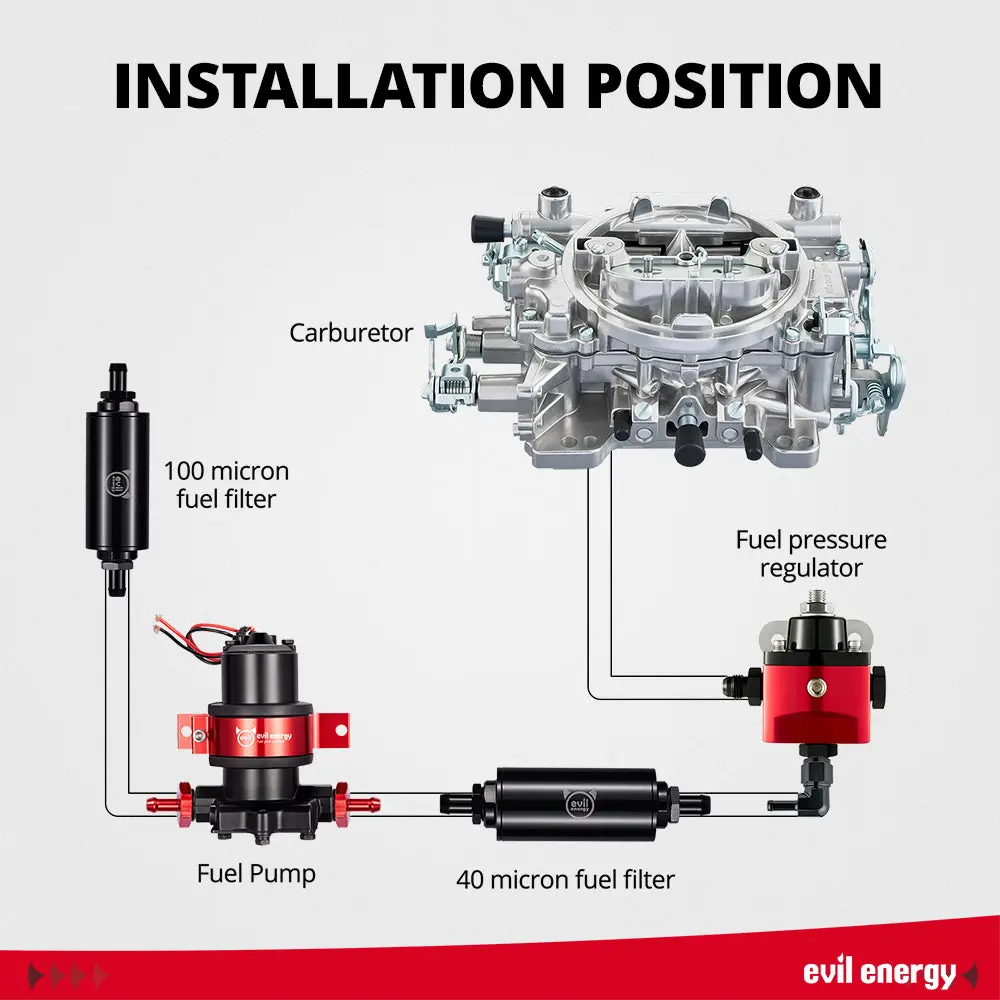

Stop searching for extra parts. This 750 CFM 4-Barrel Carburetor package includes everything needed for a plug-and-play upgrade:

• Installation Essentials: Air cleaner stud, fuel inlet fittings, and fuel line clamps.
• Sealing & Linkage: A full hardware bag with gaskets (including a quart gasket on the float bowl), throttle return springs, and a kickdown linkage spring.
• Reliable Flow: Includes a 110LPH fuel pump, dual filters, and an adjustable regulator to ensure consistent fuel delivery to your Aluminum 4-Barrel Carburetor.

Expert Validation: See our product in action with a full teardown by industry experts:

• Technical Teardown & Quality Inspection
• Performance Explanation & Setup Guide
