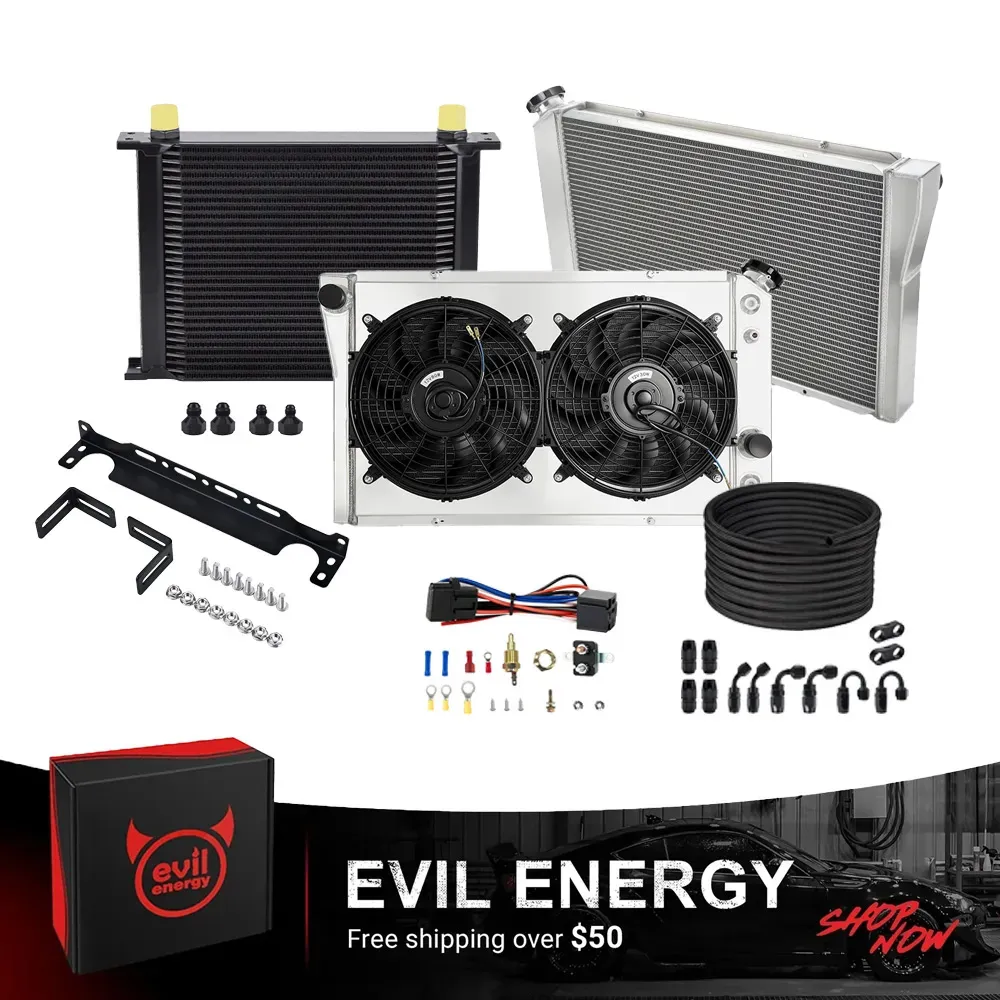

EVIL ENERGY 3-Row 56MM Aluminum Radiator Cooling System Kit for 1967-1970 Ford Mustang V8 w/ 30-Row Oil Cooler & CPE AN Hose Kit

---!@!start!@!---Specifications---!@!end!@!---

Radiator Parameters

Brand	EVIL ENERGY
ROW	4
Overall Size	20-1/4'(H) x 40-5/7 '(W) x 6‘(T)
Core Size	16-6/7’(H) x 34 '(W) x 2-3/8'(T)
Inlet/Outlet	1.26 inch/1.57 inch
Fluid Capacity (L)	7.13
Drain Plug Thread Size	NPT1/4
Material	Aluminum

Fan/Thermostatic Relay Parameters

Blade Material	reinforced nylon
Fan Diameter	14.05
Maximum Fan CFM	1300
Wattage	80
Thickness (in)	2-3/4‘(T)
Number of Blades	8 S-Type blades
Maximum Fan RPM	1800
Amp Draw	7.2 amps
turn-on temperature	180'F
turn-off temperature	165'F
Pressure sensor mounting interface	3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

30-Row Oil Cooler

Brand	EVIL ENERGY
Product Type	Stacked Plate Oil Cooler
Application	Most vehicles (engines, transmissions, rear differentials); may require additional accessories for specific setups
Cooler Styles (Row Options)	30 Row
Fittings Included	2×10AN to 8AN fittings, 2×10AN to 6AN fittings (for connecting 8AN/6AN braided fuel line hose ends)
Dimensions (L×W×H)	30 Row: 12.91-inch × 10.04-inch × 1.97-inch
Oil Capacity	30 Row : 0.74L
Pressure Ratings	Test pressure: 116psi; Burst pressure: 232psi
Material	Aluminum alloy (lightweight, corrosion-resistant)
Installation Note	Install in a location with good airflow; installation instruction included; ensure sufficient space for your chosen row size
Package Include	1×30Row Transmission/Engine Oil Cooler 2×10AN to 8AN fittings 2×10AN to 6AN fittings 1×Installation Instruction 1×Mounting Bracket Kit

CPE Fuel Line Kits

SIZE	6AN
Length	25FT
Hose ID	0.343"(8.71mm)
Hose OD	0.543"(13.79mm)
Min Bending Radius	2.5"(63.5mm)
Package Include	1×25FT CPE fuel line 4×swivel hose end straight 2×swivel hose end 45 degree 2×swivel hose end 90 degree 2×swivel hose end 180 degree 2×hose separator clamp

---!@!start!@!---Description---!@!end!@!---

Complete Cooling Upgrade for V8 Swap & High-Performance Builds

Heat is one of the biggest challenges in LS swaps, towing applications, track driving, and older performance platforms. The EVIL ENERGY Cooling System Kit is engineered to address multiple heat sources simultaneously — coolant temperature, engine oil temperature, and fluid routing efficiency.

At the core of the system is a high-efficiency 3-row 56mm aluminum radiator designed specifically for 1982-2002 Chevy S10/S10 Blazer V8 conversions and 1984-1990 Chevrolet Corvette applications. Paired with a 30-row stacked plate oil cooler and reinforced 10AN CPE braided hose kit, this setup delivers improved heat dissipation, better lubrication protection, and more stable performance under load.

Whether you're building a street LS swap, weekend track truck, drift project, or towing setup, this complete thermal management package helps protect your engine from overheating, oil breakdown, and heat-related performance loss.

Performance Features & System Advantages

High-Efficiency 3-Row Aluminum Radiator

The included EVIL ENERGY radiator features a dense 56mm 3-row aluminum core engineered for increased cooling capacity and optimized airflow. Compared with factory-style radiators, the larger core and high-density fin design improve heat transfer efficiency during heavy-load driving, towing, racing, or stop-and-go summer traffic.

Key radiator advantages:

• 56mm high-capacity 3-row core design
• Lightweight aluminum construction
• Includes cooling fan, thermostatic relay, probe, and radiator cap
• Direct-fit design for S10 V8 conversions and C4 Corvette applications
• Improved cooling stability during high RPM or extended driving conditions

The included electric fan system provides up to 950 CFM airflow with automatic thermostatic control for dependable cooling response.

30-Row Stacked Plate Oil Cooler

Oil temperature plays a major role in engine protection and lubrication efficiency. The included 30-row stacked plate oil cooler is engineered to increase cooling surface area and maintain stable oil temperatures during:

• Off-road driving
• Towing
• High-RPM performance driving
• Hot climate operation

The stacked plate design provides higher cooling efficiency than traditional tube-and-fin coolers, while the aluminum alloy construction offers lightweight durability and corrosion resistance.

High-Pressure CPE Braided AN Hose System

A cooling system is only as reliable as the plumbing behind it.

This kit includes a 20FT EVIL ENERGY CPE nylon braided fuel/oil line system built with:

• CPE inner core
• 304 stainless steel reinforcement
• Nylon braided outer layer

Designed to withstand high temperatures, pressure, vibration, and abrasion commonly found in off-road and performance engine bays.
