$143.50
Original: $409.99
-65%EVIL ENERGY 3ROW-44mm Aluminum Radiator 1966-1979 Ford Bronco & F-100/F-150/F-250/F-350 Series—
$409.99
$143.50The Story
---!@!start!@!---Specifications---!@!end!@!---

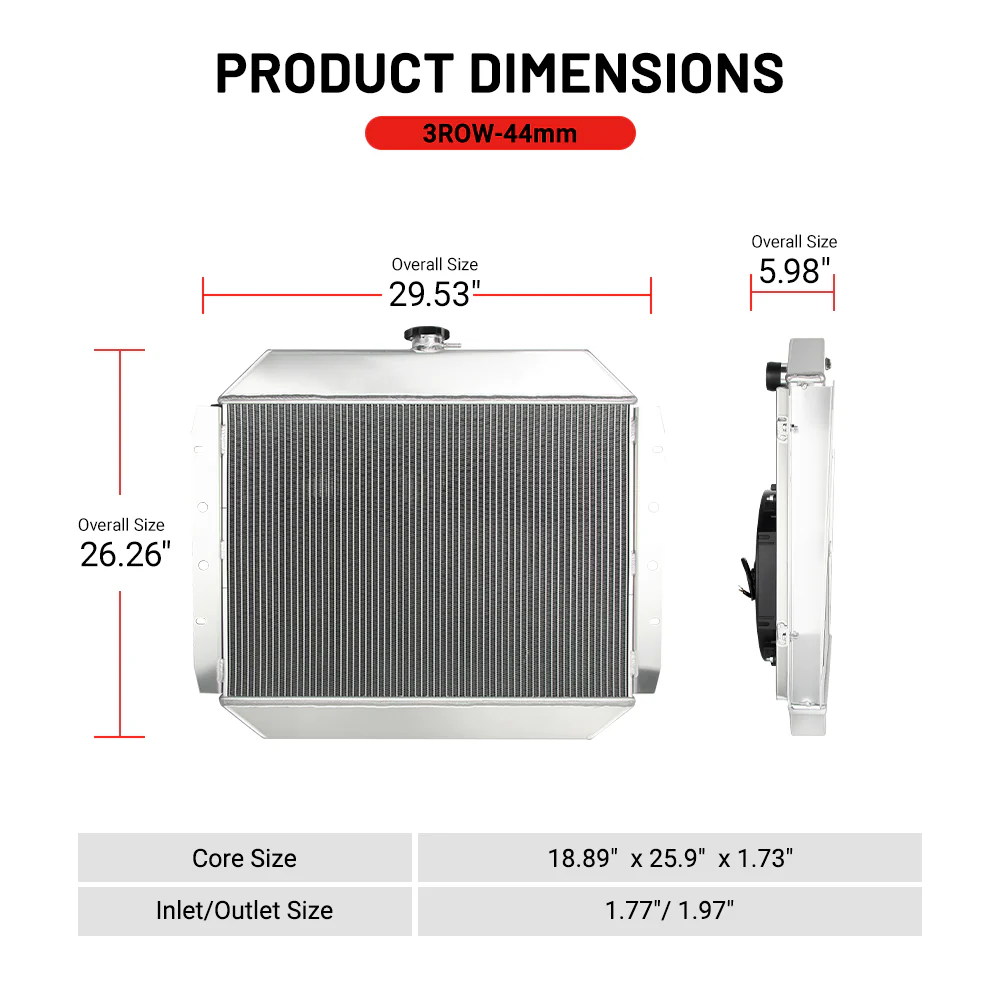

Radiator Parameters
| Brand | EVIL ENERGY |
| ROW | 3 |
| Overall Size | 26-1/4'(H) x 29-5/9 '(W) x 6‘(T) |
| Core Size | 25-8/9’(H) x 18-8/9 '(W) x 1-5/7'(T) |
| Inlet/Outlet | 1.77 inch/1.97 inch |
| Fluid Capacity (L) |
6.61 |
| Drain Plug Thread Size |
NPT1/4 |
| Material | Aluminum |
Fan/Thermostatic Relay Parameters
| Blade Material |
reinforced nylon |
| Fan Diameter |
11.2 |
| Maximum Fan CFM |
950 |
| Wattage |
80 |
| Thickness (in) |
2-3/8'(T) |
| Number of Blades |
10 S-Type blades |
| Maximum Fan RPM |
1800 |
| Amp Draw |
7 amps |
| turn-on temperature |
180'F |
| turn-off temperature |
165'F |
| Pressure sensor mounting interface |
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. |
---!@!start!@!---Description---!@!end!@!---
Key Features
-
High-Efficiency Cooling
Equipped with a 3-row, 44mm thick aluminium core, this car radiator delivers maximum heat dissipation—perfect for LS swap and high-performance engines. -
Direct Bolt-On Fit
Designed for easy installation with minimal modification. Fits into most stock mounts, ideal for LS engine radiator replacements and custom builds. -
Durable Aluminium Construction
Crafted from corrosion-resistant, high-strength aluminium radiators, ensuring long-lasting performance and reliability. -
Complete with Radiator Cap
Includes a high-quality radiator cap for a sealed, ready-to-use cooling system. -
Built for Performance
Ideal for racing, towing, or spirited driving—this performance radiator keeps engine temps stable in extreme conditions.
Radiator Usage and Maintenance Instructions
- Replacement Precautions: Coolant is hot and toxic. Allow the vehicle to cool down before handling. Do not ingest coolant. Keep coolant sealed at all times. Dispose of waste coolant at an authorized facility. Never disconnect the high - pressure A/C lines of the condenser.
- Installation Steps: Refer to the specific repair manual before service. First, drain the coolant from the old radiator, disconnect hoses and lines, and remove the radiator. Then, install the new radiator and reconnect lines and fittings with the specified torque. Next, flush the cooling system thoroughly. Finally, fill the cooling system with a 50/50 coolant/distilled water mixture.
- Regular Maintenance: Conduct annual cooling system maintenance. Test for electrolysis by checking the current on the radiator. Use test strips to measure coolant acidity to prevent corrosion. Do not mix different types of coolant.
- Repair Indicators: If you notice coolant leakage, engine overheating, deposits in the coolant, or a reducing coolant level, it's time for repair.
Fitment
- 1966-1972 Ford Bronco 2.8 l6 GAS
- 1973-1974 Ford Bronco 3.3 l6 GAS
- 1966-1967 Ford Bronco 3.9 l6 GAS
- 1966-1968 Ford Bronco 4.7 V8 GAS
- 1968-1977 Ford Bronco 5.0 V8 GAS
- 1978 1979 Ford Bronco 5.8 6.6 V8 GAS
- 1966-1974 Ford F-100 F-250 F-350 3.9 l6 GAS
- 1966-1972 Ford F-100 4.7 V8 GAS
- 1966-1979 Ford F-100 F-250 F-350 4.9 l6 GAS
- 1969-1979 Ford F-100 5.0 V8 GAS
- 1966 1967 1977-1979 Ford F-100 F-250 F-350 5.8 V8 GAS
- 1966 1968-1976 Ford F-100 F-250 F-350 5.9 V8 GAS
- 1968-1976 Ford F-100 F-250 F-350 6.4 V8 GAS
- 1977-1979 Ford F-100 F-250 F-350 6.6 V8 GAS
- 1973 1974 1979 Ford F-100 7.5 V8 GAS
- 1975-1979 Ford F-150 4.9 l6 GAS
- 1975-1979 Ford F-150 5.0 7.5 V8 GAS
- 1977-1979 Ford F-150 5.8 6.6 V8 GAS
- 1975 1976 Ford F-150 5.9 6.4 V8 GAS
- 1969-1978 Ford F-250 5.0 V8 GAS
- 1973-1979 Ford F-250 F-350 7.5 V8 GAS
- 1966-1979 Ford F-350 5.0 V8 GAS
Key Features:
-
High Cooling Efficiency: The 3-row design with a 44mm core ensures maximum heat dissipation, keeping your engine running smoothly even under heavy loads.
-
Direct Fitment: This radiator is a direct fit for your vehicle, making installation straightforward and hassle-free.
-
Durable Construction: Made from high-quality aluminum, it offers superior durability and resistance to corrosion.
-
Includes Radiator Cap: Comes with a radiator cap for complete installation.
-
Enhanced Performance: Ideal for performance driving, ensuring your engine stays cool even in extreme conditions.
Additional Information:
-
Size and Dimensions: The radiator is designed to fit within the stock mounting area, though minor modifications may be required for optimal fit.
-
Fan Shroud Compatibility: Some listings include a fan shroud for enhanced cooling performance.
-
Warranty: Some sellers offer a warranty against defects, providing peace of mind for your purchase.
Why Choose This Radiator?
-
Upgraded Cooling: Replaces the factory radiator with a more efficient aluminum unit, significantly reducing operating temperatures.
-
Performance Upgrade: Perfect for those looking to upgrade their cooling system for better performance and reliability.
-
Cost-Effective: While offering superior performance, this radiator is also a cost-effective solution compared to other option.
Why Choose Evil Energy?
Elevate your vehicle's performance with our top-tier fuel system components, including fuel lines, fittings, adapters, filters, fuel pumps, pressure regulators, and catch cans.
Specifically engineered for Cadillac, Chevrolet, GMC, Hummer, and Pontiac LS V8 engines (2007-2015), our products ensure seamless integration and hassle-free installation.
We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common fuel system challenges faced by car enthusiasts.
- Enhanced Performance: Our products boost efficiency and power for your modified engine.
- Professional Grade: Ideal for serious modifiers seeking reliable and high-performance upgrades.
- Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
- Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
- Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.
For additional information, please contact us at [email protected].
