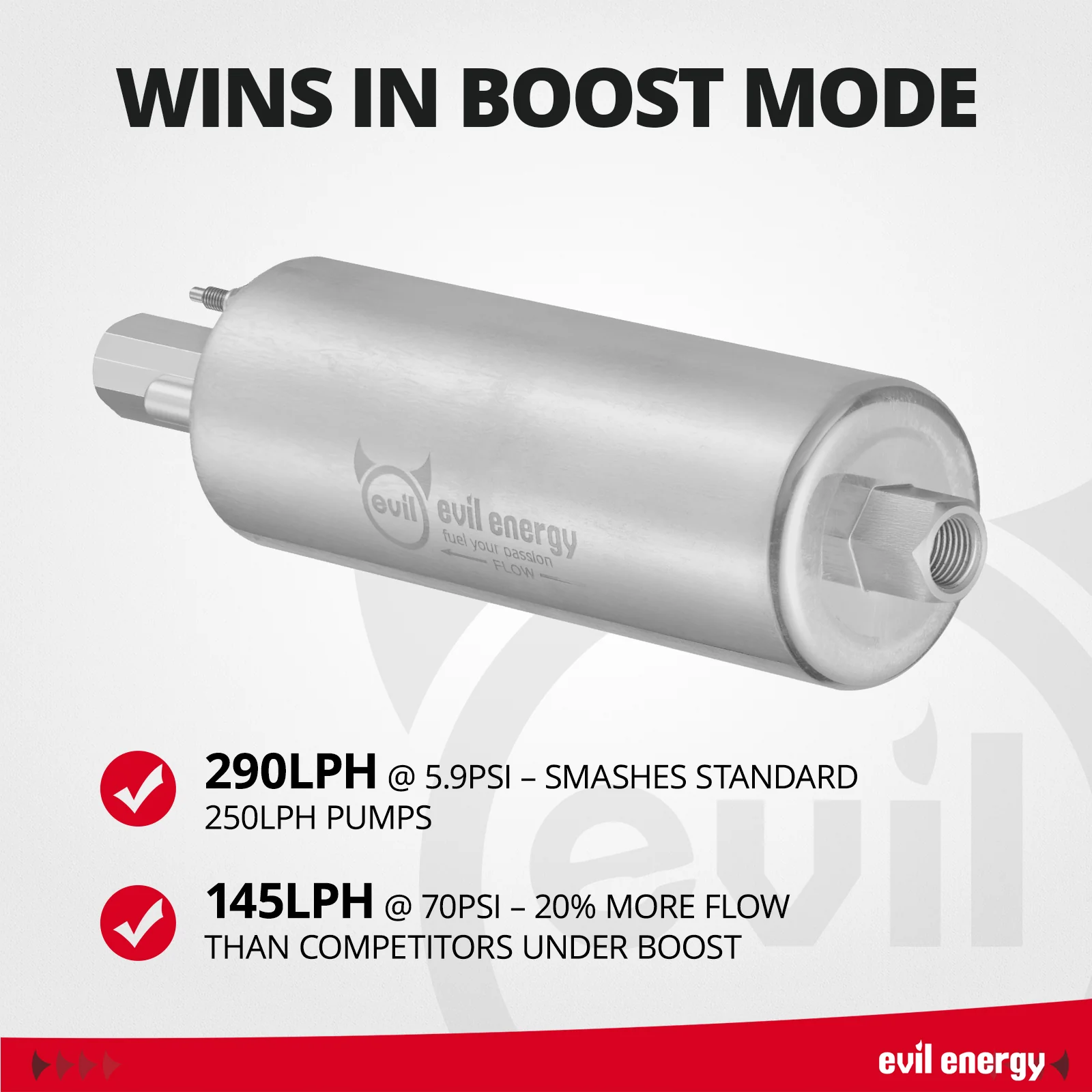

EVIL ENERGY 290LPH High Pressure External Electric Fuel Injection Pump 12V-13.5V - Reliable High-Performance for EFI Tuned/Modified Cars (AN Adapter Optional)

---!@!start!@!---Specifications---!@!end!@!---

Inlet	3/8-inch
Outlet	3/8-inch
Installation Location	External fuel pump
Structural Category	Electric fuel pump
Structural Sub-Category	Gear-type electric fuel pump
Voltage	12V-13.5V
Max Flow Rate	290LPH
Closed Pressure	100PSI
Flow Rate	275-290LPH(5.9-6.0PSI&8.0-8.9A) 185-217LPH(42PSI&11-11.3A) 115-145LPH(70PSI&12.5-13.5A) 30-95LPH(87-80PSI&14-14.5A)
Temperature Range	-68°-194°F
Max Power	188W
Application	for 12-13.5V DC EFI system only
Material	Aluminum
Gross Weight	0.75kg
Packaging Dimensions	20*20*5.3cm
Compatible Media	gasoline and diesel (oil-gas separation needed)
Applicable Vehicle Models	Suitable for EFI systems
Package Details	1*Electric fuel pump 2*Protective cover 2*Insulated terminals 2*Nuts 2*Washers 2*Silver Washers 2*3/8-inch Barb Fitting/AN6 Fitting 2*fuel pump brackets 2*dust plug

---!@!start!@!---Description---!@!end!@!---

Unleash consistent and reliable fuel flow for your high-performance vehicle with the EVIL ENERGY 290 LPH EFI Electric Fuel Pump. Engineered for enthusiasts who demand precision and power, this external fuel pump is the heart of a robust fuel system, ensuring your engine gets the fuel it needs when it needs it most.

This high-output 12V electric fuel pump is the ideal choice for a wide range of applications, from daily drivers to modified street cars. Whether you're completing an LS swap or simply upgrading your stock fuel system, the EVIL ENERGY 290 LPH pump delivers exceptional performance and value.

Key Features

• Exclusively for 12-13.5V DC EFI systems, ensuring compatible power & precise fuel control.
• External gear-type electric fuel pump with 2 black brackets; no in-tank installation, easy to set up.
• Performance: Max flow 290 LPH; Test flow ranges include 275-290 LPH (5.9-6.0PSI & 8.0-8.9A), 185-217 LPH (42PSI & 11-11.3A), 115-145 LPH (70PSI & 12.5-13.5A), 30-95 LPH (80-87PSI & 14-14.5A); Closed pressure 100PSI; Power 188W.
• Aluminum construction; -68°F to 194°F temperature resistance, stable in various climates.
• Compatible with gasoline; not for E85/diesel (shortens life); pre-filter needed if using diesel. 3/8-inch inlet & 3/8-inch outlet, comes with 2 silver 3/8-inch Barb adapters/AN6 Fittings– direct rubber hose connection, no extra fittings, low leakage risk & space-saving.

Versatile Fuel Compatibility & Simplified Installation

This EVIL ENERGY 290 LPH EFI Electric Fuel Pump works best with gasoline for a long life and top performance. It is not recommended for E85 or diesel, but a pre-filter is required if used with diesel. For an easy setup, this all-in-one 12V Electric Fuel Pump kit includes 3/8-inch fittings for a direct hose connection with no extra parts needed.

The Importance of Proper Filtration

Want to make your EVIL ENERGY 290 LPH EFI Electric Fuel Pump more durable? The key step is to install a 100-micron pre-filter between the fuel tank and the pump.

This simple step effectively protects this powerful 12V Electric Fuel Pump from damage caused by contaminants. Please refer to the diagram below for the correct installation method to ensure your EVIL ENERGY Fuel Pump has a long and stable service life.

FAQs - EVIL ENERGY 290 LPH EFI Electric Fuel Pump

Here we answer the most common questions about this high-performance EVIL ENERGY fuel pump to help you make an informed purchasing decision.

Q1: What type of fuel is the EVIL ENERGY 290 LPH fuel pump primarily designed for?

A1: This electric fuel pump is primarily designed and optimized for gasoline. All of its performance metrics and longevity tests are based on standard gasoline. To ensure the best performance and longest lifespan, we strongly recommend using it with gasoline. While it can be used with diesel, please be aware that this will negatively impact the pump's service life.

Q2: Is this an in-tank or external electric fuel pump? Is the installation difficult?

A2: This is an external (out-of-tank) electric fuel pump, which does not need to be installed inside the fuel tank. The installation process is relatively simple. The product includes two black mounting brackets to conveniently secure it to your vehicle's frame or another suitable location. The external design also makes future inspections and maintenance much more convenient.

Q3: Will I need to buy extra fittings or adapters for this fuel pump?

A3: No, you will not. This EVIL ENERGY fuel pump kit already includes the essential fittings you need. It features a 3/8-inch inlet and outlet and comes with two silver 3/8" barb adapters / AN6 fittings, allowing for a direct connection to rubber fuel hoses. This saves you the cost and time of purchasing extra parts.

Q4: Is this 12V EFI fuel pump compatible with all vehicle models?

A4: It is specifically designed for vehicles that use a 12-13.5V DC Electronic Fuel Injection (EFI) system. This ensures perfect compatibility with the power systems of modern EFI vehicles and provides precise fuel pressure control. It is not suitable for older carbureted systems or vehicles with different voltage requirements.

Q5: Should I install a fuel filter when using this pump?

A5: Yes, we highly recommend that you always use a fuel filter. Installing a 100-micron pre-filter before the pump's inlet will effectively protect the internal gears of this EVIL ENERGY Fuel Pump from contaminants. This will significantly extend its lifespan and ensure stable performance.

Q6: What kind of performance can I expect from this fuel pump? What horsepower levels can it support?

A6: This is a high-performance fuel pump with a maximum flow rate of 290 LPH (Liters Per Hour). It can provide ample fuel supply for most modified and high-performance engines. The specific horsepower it can support depends on your engine type, fuel pressure settings, and injector size. For example, it still delivers 185-217 LPH at 42 PSI, which is sufficient for a wide range of high-horsepower, naturally aspirated or moderately boosted engines.
