EVIL ENERGY 5/10/15/20 Gallon Fuel Cell Gas Tank Aluminum with Level Sender 6AN 12FT/16FT PTFE Fuel Line Kit Black/silver

Select Capacity

Select Tank Color

Select Line Length

From $50.40

Original: $143.99

-65%

EVIL ENERGY 5/10/15/20 Gallon Fuel Cell Gas Tank Aluminum with Level Sender 6AN 12FT/16FT PTFE Fuel Line Kit Black/silver—

$143.99

$50.40

Select Capacity

Select Tank Color

Select Line Length

From $50.40

Original: $143.99

-65%

EVIL ENERGY 5/10/15/20 Gallon Fuel Cell Gas Tank Aluminum with Level Sender 6AN 12FT/16FT PTFE Fuel Line Kit Black/silver—

$143.99

$50.40

The Story

---!@!start!@!---Specifications---!@!end!@!---

Component	Specifications
Fuel Cell Capacity	5 Gal, 10 Gal, 15 Gal, 20 Gal (options)
Fuel Cell Material	1060-H24 aerospace-grade aluminum (tank); durable plastic (lid)
Fuel Cell Size (L×W×H)	5 Gal: 12-inch×12-inch×8-inch 10 Gal: 9.05-inch×16.53-inch×16.53-inch 15 Gal: 19.88-inch×17.91-inch×10.03-inch 20 Gal: 24-inch×20-inch×10-inch (±5mm tolerance)
PTFE Fuel Line Length	12FT;16FT
Size	6AN
Inlet/Outlet Fitting (Both)	Universal 10AN (compatible with 10AN to 6AN Reducer Adapter)
Compatibility	ethanol, methanol, gasoline, and modern fuel blends.

Product Compare

Capacity

5 Gallon

10 Gallon

15 Gallon

20 Gallon

Outlets

AN10

Size(L*W*H)

12-inchx 12-inchx 8-inch

9.05-inchx 16.53-inchx 16.53-inch

19.88-inchx 17.91-inchx 10.03-inch

24-inch×20-inch×10-inch

Mounting tab

3.64-inch

Tank Contents

Level Sensors (3-90Ω) & Anti-Slosh Foam

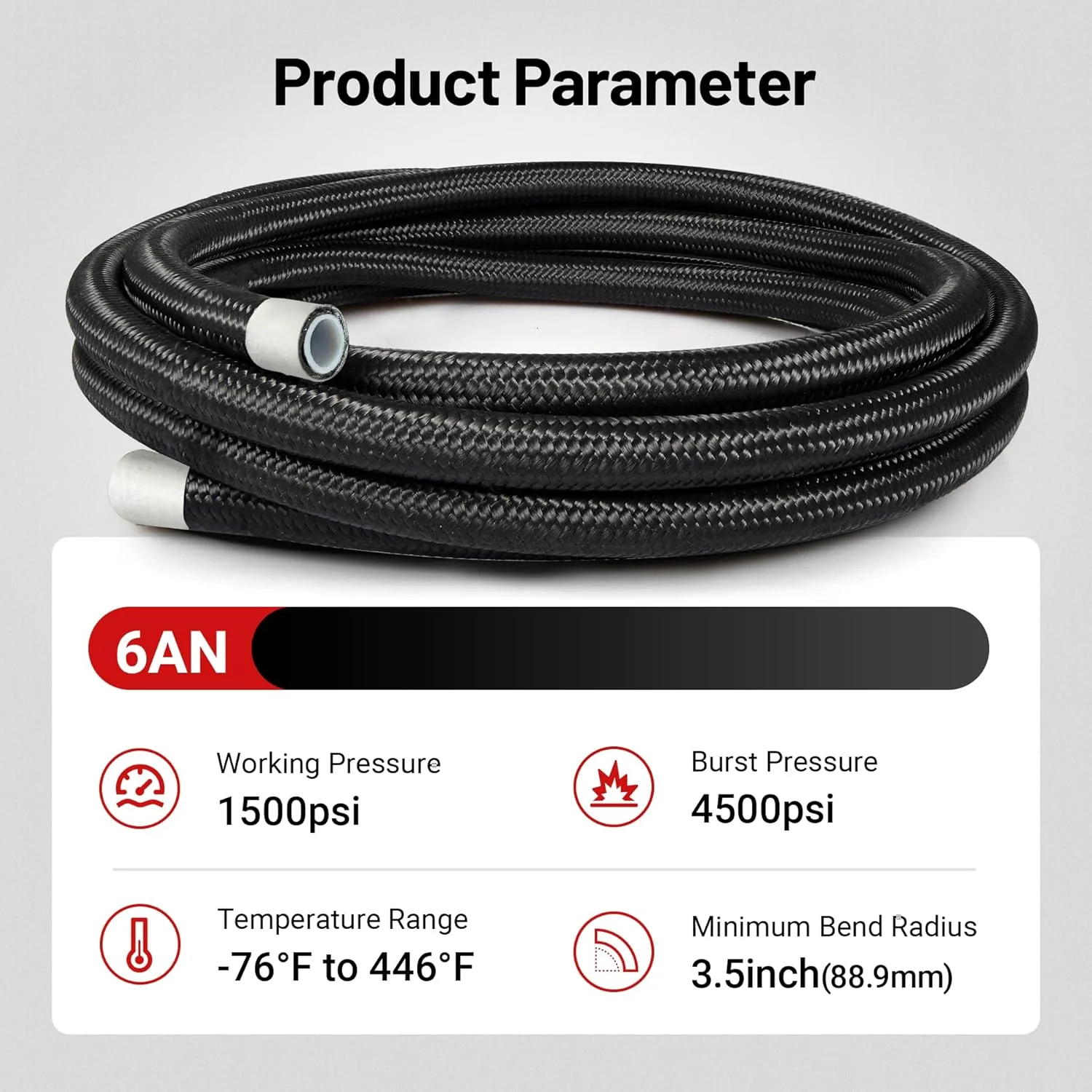

PTFE Fuel Line Detail

SIZE	6AN
Length	5/10/20/25FT
Hose ID	0.315-inch(8mm)
Hose OD-Black	0.465-inch(11.81mm)
Hose OD-Silver	0.433-inch(10.99mm)
Min Bending Radius	3.5-inch(88.9mm)
Max Working Pressure	1500PSI
Bursting Pressure	4500PSI

Tips for taking the cap off:

---!@!start!@!---Description---!@!end!@!--- EVIL ENERGY 20 gallon fuel cell gas tank – automotive fuel cell made with 1060-H24 aluminum

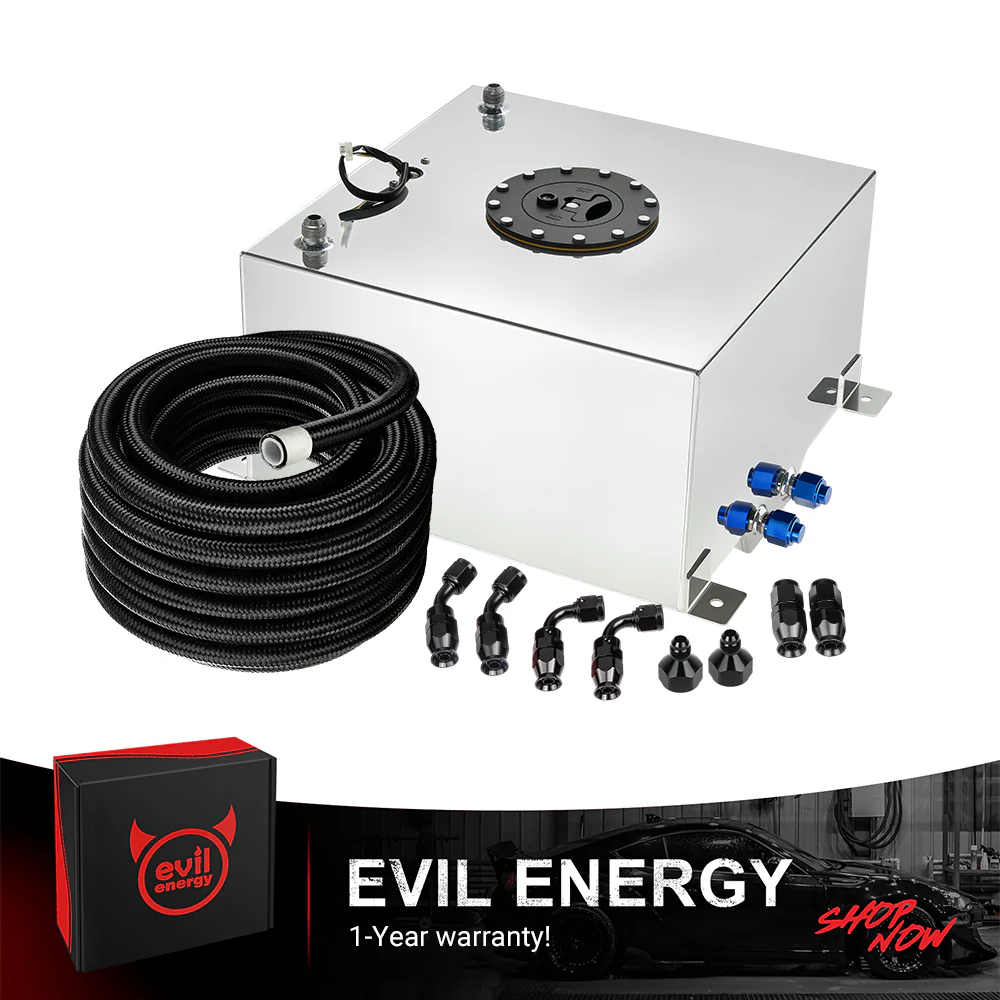

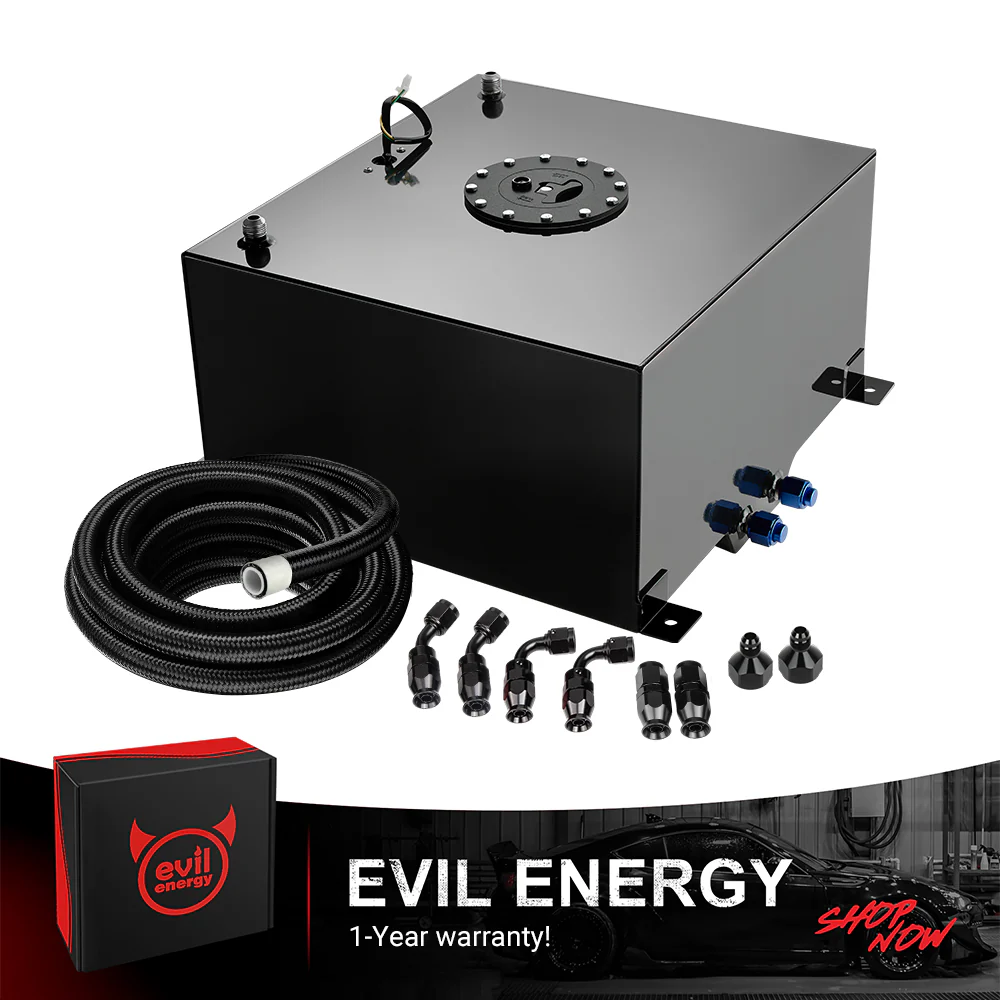

EVIL ENERGY offers an all-in-one racing fuel solution. The core of this kit is a 20-gallon fuel cell (also available in 15-gallon fuel cell and other sizes), featuring a lightweight and durable Aluminum fuel cell construction with a built-in level sender and anti-slosh foam. Unlike a standalone tank, this kit includes a complete 6AN PTFE Fuel Line kit. The PTFE Fuel Line makes it perfectly compatible with E85, ethanol, and gasoline, making it the ideal choice for drift, drag, or off-road builds.

The EVIL ENERGY fuel cell is built for drivers who demand performance, durability, and flexibility. Whether you're replacing your stock car fuel tank or designing a fully custom automotive fuel cell layout, this system delivers.

Tired of piecing together your custom fuel system? EVIL ENERGY combines the two most critical components—a race-spec fuel cell and high-performance plumbing—into one complete kit. This not only solves compatibility issues but gives you an out-of-the-box solution perfect for your drift, drag racing, or off-road project.

Fuel level sender with 0-90 ohm range shown monitoring fuel levels inside EVIL ENERGY fuel cell gas tank

The Core Component: Pro-Grade Aluminum Fuel Cell

This fuel tank is purpose-built for harsh environments and high-performance demands.

Lightweight & Robust: Constructed from high-grade Aluminum fuel cell material, offering superior durability and impact resistance while saving weight.
Large 20-Gallon Capacity: This 20 gallon fuel cell meets the demands of long race sessions or high-horsepower engines. (We also offer a 15-gallon fuel cell and other sizes to fit various chassis).
Prevents Fuel Starvation: Built-in anti-slosh foam minimizes fuel sloshing during aggressive driving (drifting, cornering), ensuring the pickup is always submerged and preventing fuel cut.
Integrated Level Sender: Includes a 0-90 Ohm fuel level sender, allowing you to monitor your fuel level from the cockpit—a rare feature on many race cells.
Professional Finish: Available in a black or silver anodized coating, which not only resists corrosion but gives your build a professional, clean look.

EVIL ENERGY fuel cell gas tank with removable cap and visible anti-slosh foam for car fuel tank maintenance and fuel cell replacement EVIL ENERGY 20 gallon automotive fuel cell tank with anti-slosh foam and open cap, ideal car fuel tank replacement

The Key Advantage: Complete 6AN PTFE Fuel Line Kit Included

This isn't just a tank; it's a complete fuel system. The biggest advantage of this EVIL ENERGY fuel cell kit is the inclusion of a complete 6AN PTFE Fuel Line Kit, ensuring you have everything needed for a professional, leak-free, and high-performance installation.

1. Ultimate Fuel Compatibility & E85 Ready: The PTFE Fuel Line is the gold standard for corrosion resistance. This EVIL ENERGY PTFE Fuel Line features an inner layer that is perfectly compatible with all fuels, including gasoline, diesel, methanol, ethanol blends, and E85. It resists degradation and corrosion, meaning you'll never worry about fuel line failure when running modern or high-performance fuels.

2. Triple-Layer Durability & Performance: This PTFE Fuel Line is built for extreme conditions with a durable triple-layer design: a smooth PTFE core, a middle layer of stainless steel reinforcement, and a rugged nylon exterior for anti-abrasion and heat resistance. This construction allows for:

High Pressure Performance: A 1500 PSI working pressure and 4500 PSI burst pressure make it ideal for any demanding application, including high-pressure EFI, carburetor, or turbo oil feed lines.
Extreme Temp Resistance: A massive operating range of -76°F to 446°F (-60°C to 230°C) ensures stable flow during cold starts and in high engine bay heat.

3. A Complete, Easy-Upgrade Solution: This is a full 6AN PTFE Fuel Line kit. You receive 20FT of hose plus a complete set of reusable fittings (straight, 45°, 90°). This eliminates guesswork, replaces old worn-out lines, and boosts reliability for any build, especially EFI conversions, fuel return lines, or vapor lines. No mismatched parts, just a single, reliable solution.

Built for Performance and Custom Builds

This EVIL ENERGY fuel cell kit is the ideal choice for:

Drift Cars: The anti-slosh foam and reliable fuel delivery are critical for holding a slide.
Drag Racing: Ensures your high-horsepower engine is fed an uninterrupted supply of fuel on a full-throttle pass.
Off-Road & Baja: The durable aluminum construction can withstand the jumps and bumps of rugged terrain.
Classic Car / Hot Rod Builds: Replace your old, rusty factory tank and upgrade to an E85-compatible system in one step.
