EVIL ENERGY 405LPH High Flow High Pressure External Electric Fuel Injection Pump 12V-13.5V - Racing-Grade for EFI Modified Cars

---!@!start!@!---Specifications---!@!end!@!---

Inlet	M18*1.5
Outlet	M12*1.5
Installation Location	External fuel pump
Structural Category	Electric fuel pump
Structural Sub-Category	Gear-type electric fuel pump
Voltage	12V-13.5V
Max Flow Rate	405LPH
Closed Pressure	170PSI
Flow Rate	368-405LPH(10-11PSI&9.6-10.2A) 317-365LPH(43-41PSI&13-16A) 280-320LPH(71-70PSI&15-16.7A) 215-260LPH(114-115PSI&20-21A)
Temperature Range	-68°-194°F
Max Power	255W
Application	for 12-13.5V DC EFI system only
Material	Aluminum
Gross Weight	1KG
Packaging Dimensions	22*8*7.5cm
Compatible Media	For gasoline and diesel (oil-gas separation needed)
Applicable Vehicle Models	Suitable for EFI systems
Package Details	1*Electric fuel pump 2*Protective cover 2*Insulated terminals 2*Nuts 2*Washers 1*large Washers 1*M18*1.5 To AN10 Fitting 1*M12*1.5 To AN6 Fitting 1*fuel pump brackets

---!@!start!@!---Description---!@!end!@!---

The EVIL ENERGY 12V Electric Fuel Pump for EFI is a reliable Electric Fuel Pump built for high-performance EFI systems. With a maximum flow of 405LPH and a closed pressure of 170PSI, it provides stable and precise fuel delivery. Made from durable aluminum, it works in extreme temperatures from -68°F to 194°F, perfect for different driving conditions.

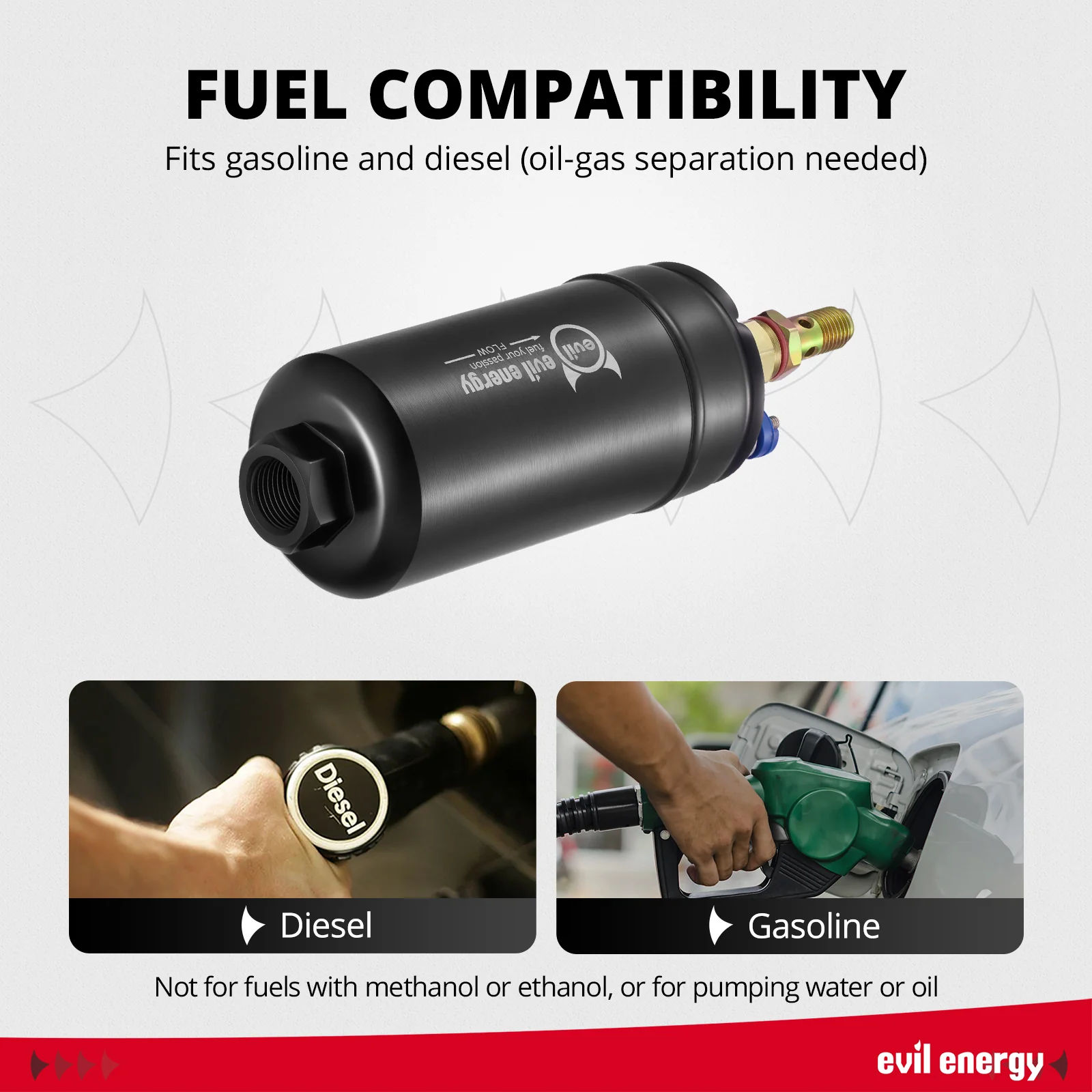

This EVIL ENERGY Fuel Pump features an M18*1.5 inlet and M12*1.5 outlet, with included AN adapter fittings for easy fuel line connection. It’s designed for 12–13.5V DC EFI systems and supports both gasoline and diesel (filter recommended for diesel).

• Exclusively for 12-13.5V DC EFI systems, ensuring compatible power & precise fuel control.

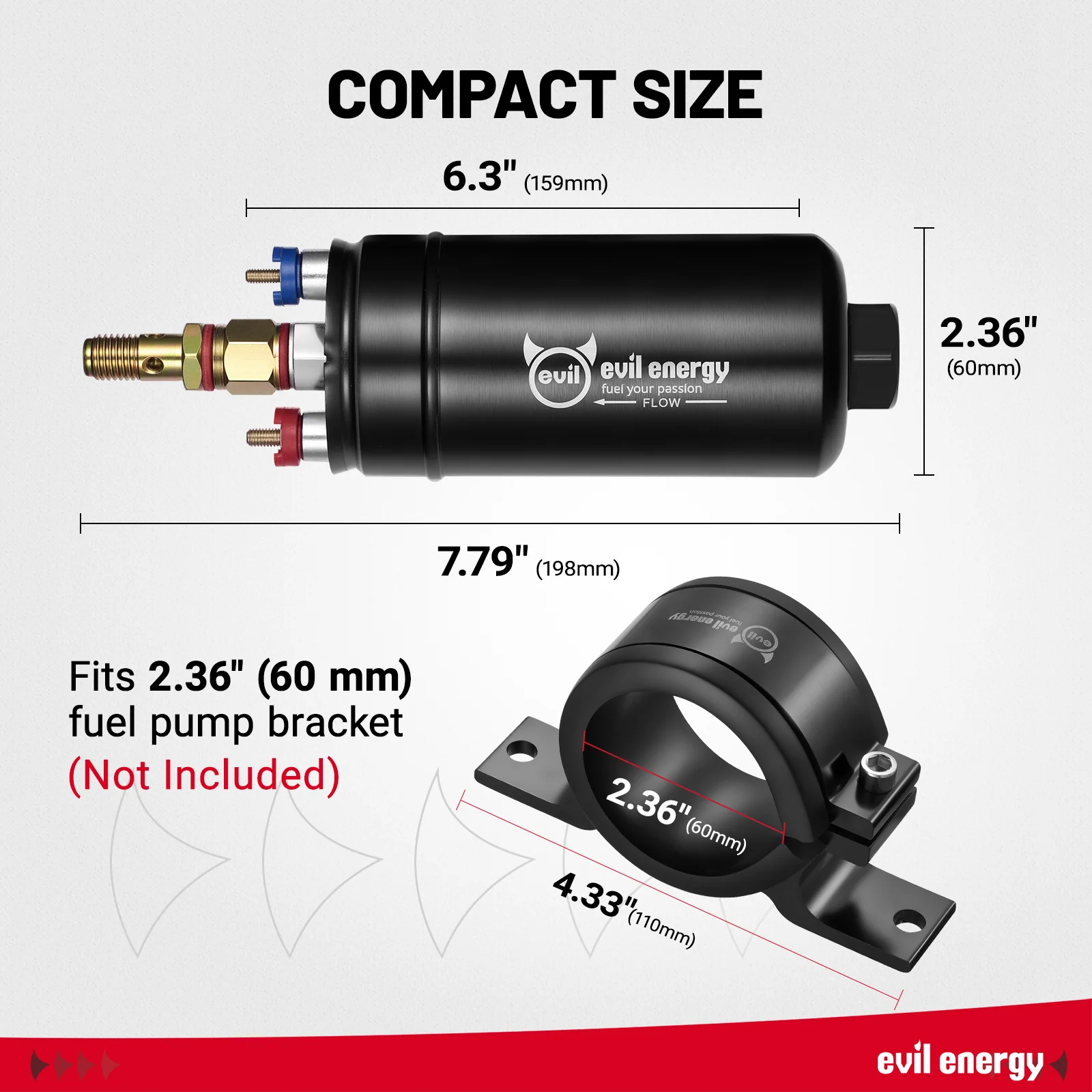

• External gear-type electric fuel pump with 60mm bracket; no in-tank installation, easy to set up.

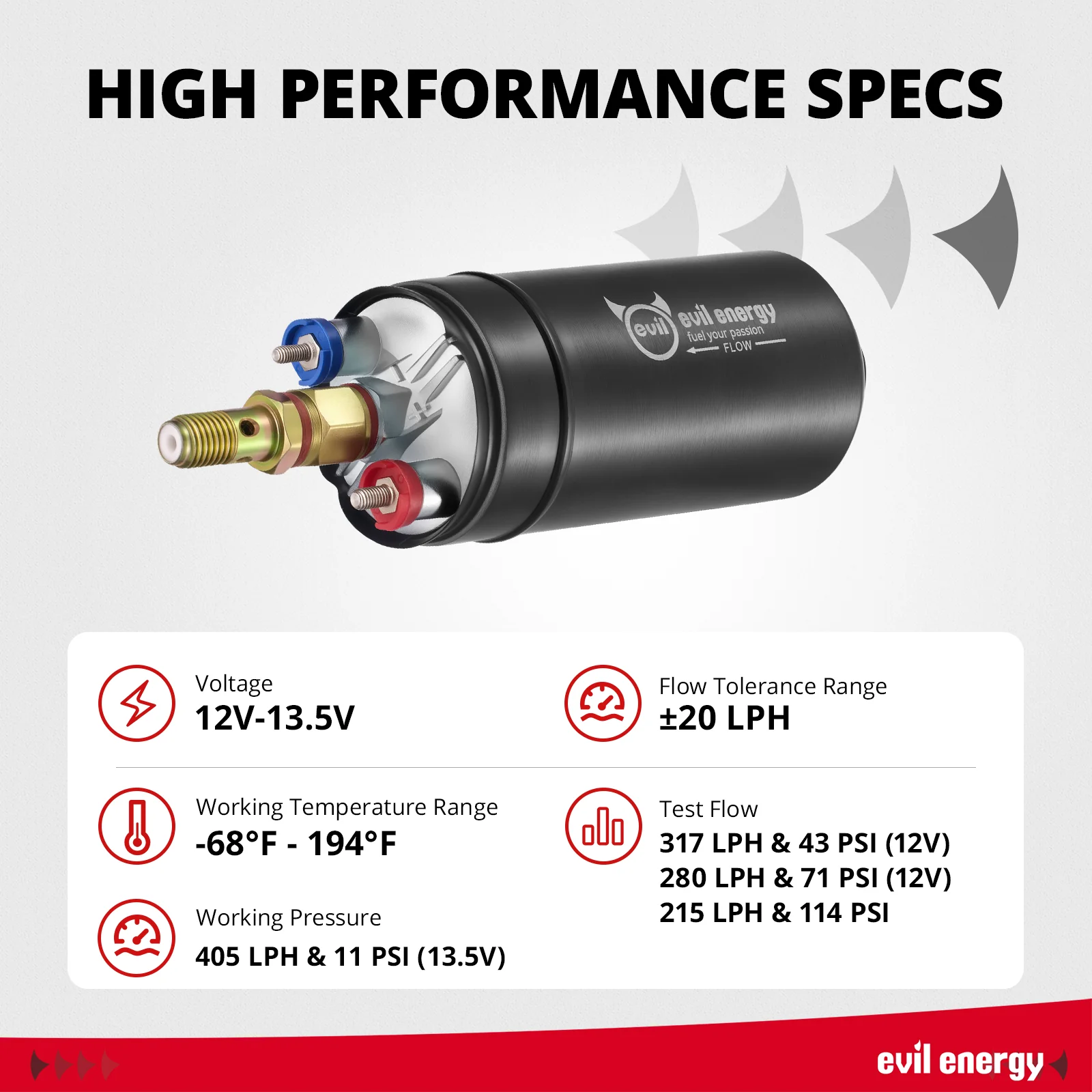

• Performance: Max flow 405 LPH; Test flow ranges include 368-405 LPH (10-11PSI & 9.6-10.2A), 317-365 LPH (41-43PSI & 13-16A), 280-320 LPH (70-71PSI & 15-16.7A), 215-260 LPH (114-115PSI & 20-21A); Closed pressure 170PSI; Power 255W.
• Aluminum construction; -68°F to 194°F temperature resistance, stable in various climates.
• Compatible with gasoline, Diesel (when using diesel, a filter is recommended.)

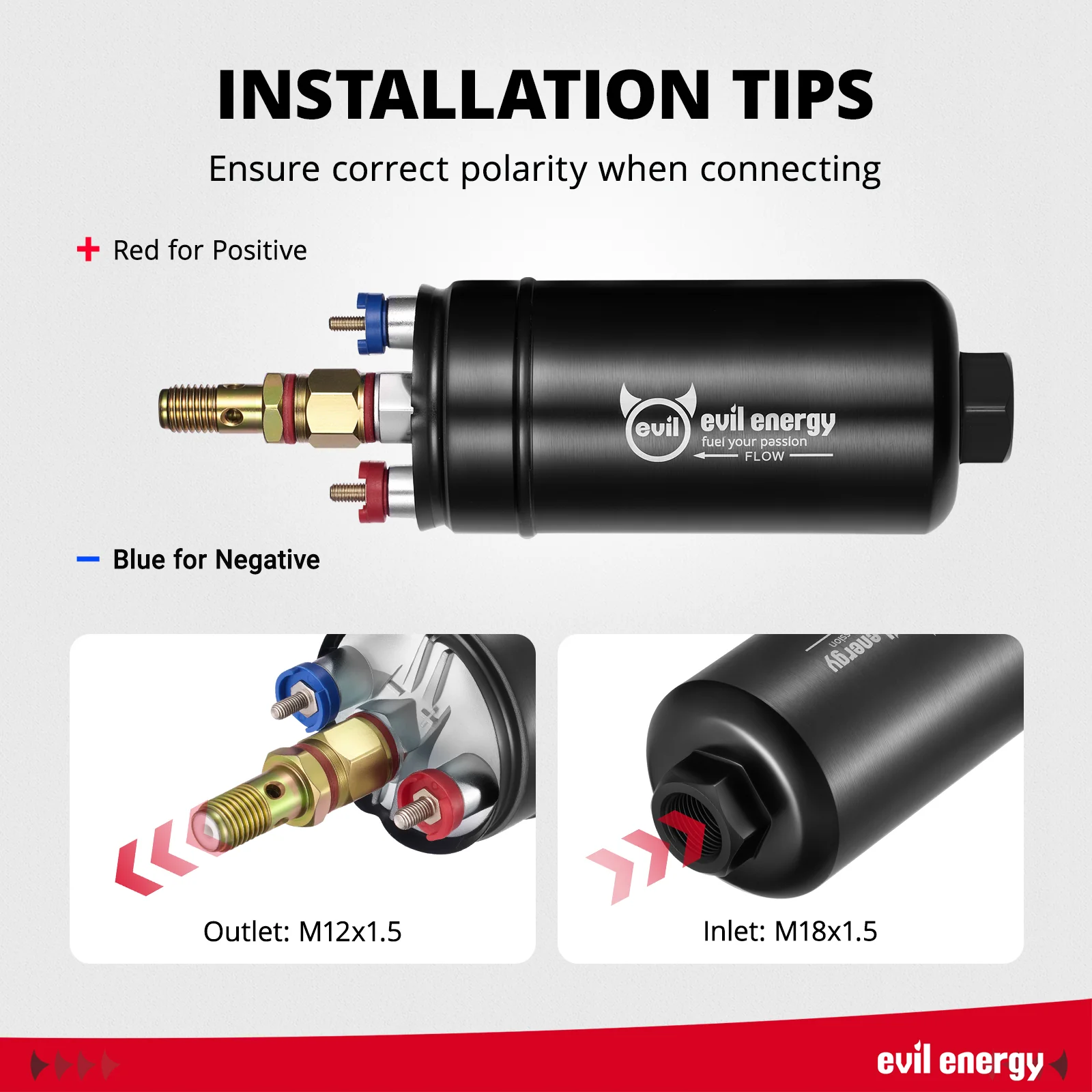

• M18*1.5 inlet & M12*1.5 outlet, comes with AN adapter fittings (M18*1.5 to AN10, M12*1.5 to AN6) – allows matching desired fuel line connectors based on personal needs.
• Package includes: high-flow black external fuel pump*1,  rubber covers*1,  insulated terminals*2, nuts*2, Washers*2, large Washers*1, M18*1.5 to AN10 adapter*1, M12*1.5 to AN6 adapter*1, 60mm pump bracket*1

Installation Tip

Stable Fuel Delivery Starts with Proper Positioning

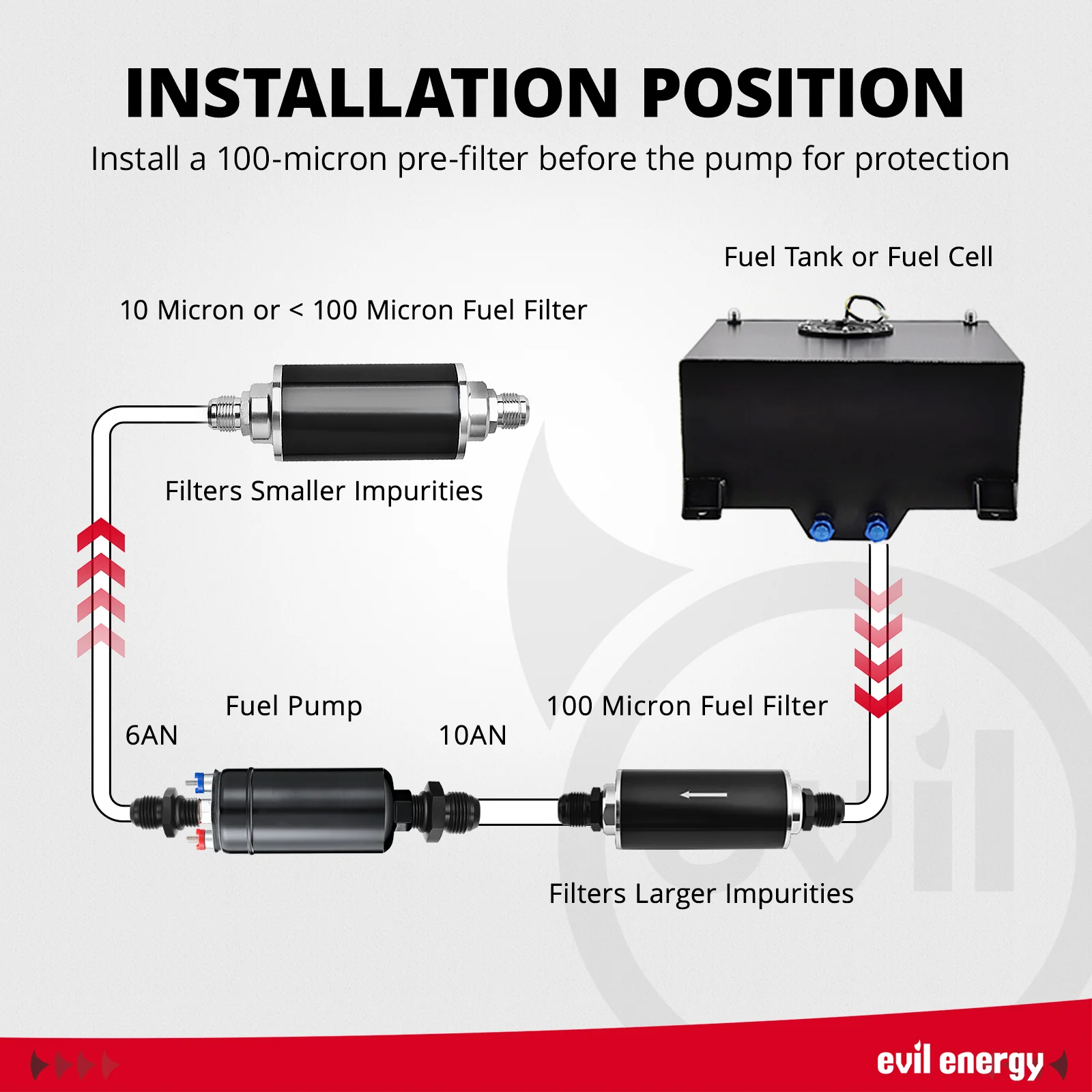

The EVIL ENERGY Electric Fuel Pump (405LPH Fuel Pump) is an external gear-type 12V Electric Fuel Pump for EFI. As a high-performance Electric Fuel Pump, it is recommended to mount the pump below the fuel tank for gravity-fed operation. This reduces cavitation, lowers noise, shortens suction distance, and extends pump life. The diagram below shows the correct external installation method for the EVIL ENERGY Fuel Pump.

Installation Position - EVIL ENERGY Fuel Pump

Protect Your Fuel Pump, Protect Performance

For optimal results, install the EVIL ENERGY 12V Electric Fuel Pump for EFI with a 100-micron pre-filter between the fuel tank and the pump. After the pump, use a 10-micron or 100-micron fuel filter to capture finer impurities. This setup ensures the EVIL ENERGY Electric Fuel Pump maintains stable flow, reduces cavitation and wear, and fully unleashes the power of the 405LPH Fuel Pump. Proper installation extends the life of your EVIL ENERGY Fuel Pump while guaranteeing reliable performance for any EFI system.

Designed for EFI Systems

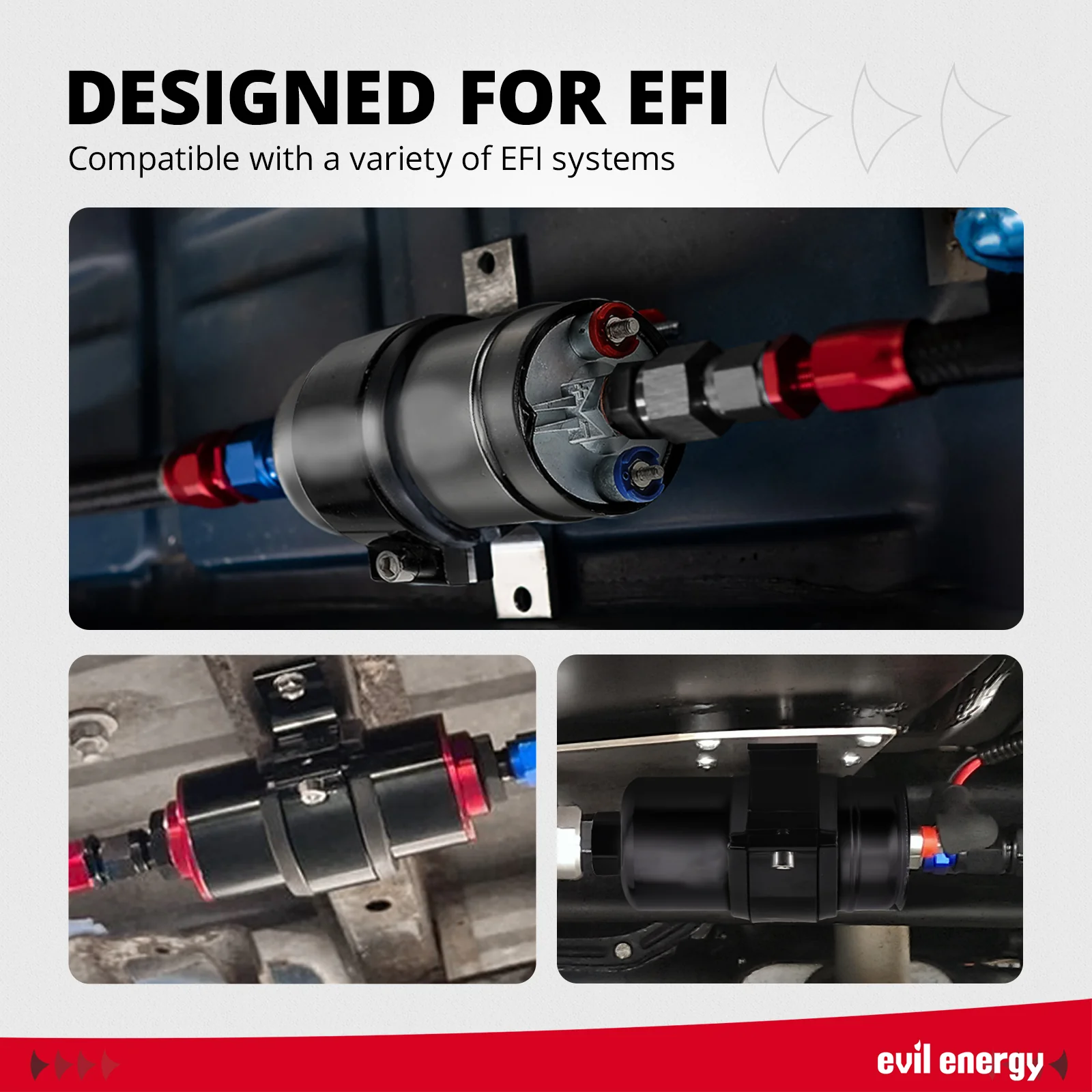

Built for modern injection, this 12V Electric Fuel Pump for EFI delivers stable, high-pressure flow for quick starts, smooth idle, and strong top-end power. The compact external Electric Fuel Pump mounts cleanly under the vehicle, and the images below show common EFI-friendly placements to help you plan a tidy, reliable install.

FAQs - EVIL ENERGY Fuel Pump for EFI

1. What vehicles can use the EVIL ENERGY 12V Electric Fuel Pump for EFI?

This Electric Fuel Pump is designed for EFI systems that operate on 12V–13.5V DC. It’s suitable for performance cars, modified builds, racing applications, and other EFI-equipped vehicles.

2. What is the maximum flow rate of the EVIL ENERGY Electric Fuel Pump?

The pump delivers up to 405LPH (liters per hour) at maximum capacity, making it a true 405LPH Fuel Pump ideal for high-performance fuel demands.

3. Can this EVIL ENERGY Fuel Pump be used with diesel?

Yes, the pump is compatible with both gasoline and diesel. However, when using diesel, it is recommended to install a fuel filter for protection and longer pump life.

4. Where should I install the Electric Fuel Pump?

For best results, mount the EVIL ENERGY Fuel Pump below the fuel tank. This gravity-fed setup reduces cavitation, lowers noise, and ensures stable fuel delivery.

5. Does the pump come with fittings and accessories?

Yes. Each package includes the electric fuel pump, protective covers, insulated terminals, nuts, washers, AN adapter fittings (M18*1.5 to AN10, M12*1.5 to AN6), and a 60mm bracket for easy external installation.

6. What is the operating pressure range?

The EVIL ENERGY Electric Fuel Pump provides reliable performance across multiple pressure levels with a closed pressure of 170PSI, ensuring a consistent supply for EFI systems.

7. What material is the pump made of?

It is constructed from durable aluminum, offering lightweight strength and excellent resistance to heat and corrosion.
