EVIL ENERGY 255LPH High Pressure External Electric Fuel Injection Pump 12V-13.5V - Stable Performance for EFI Vehicle Systems

---!@!start!@!---Specifications---!@!end!@!---

Inlet	5/16-inch
Outlet	3/8-inch
Installation Location	External fuel pump
Structural Category	Electric fuel pump
Structural Sub-Category	Gear-type electric fuel pump
Required Fittings/Tubing	Direct connection to 5/16-inch rubber tubing
Voltage	12V-13.5V
Max Flow Rate	255LPH
Closed Pressure	150PSI
Flow Rate	215-255LPH(3.9-4.1PSI&5.0-6.0A) 160-200LPH(42-43PSI&7.2-8.0A) 130-150LPH(75PSI&8.9-9.5A) 58-95LPH(115-114PSI&11.8-12.3A)
Temperature Range	-68°-194°F
Max Power	168W
Application	for 12-13.5V DC EFI system only
Material	Aluminum
Gross Weight	0.8kg
Packaging Dimensions	19*16*7cm
Compatible Media	For gasoline and diesel (oil-gas separation needed)

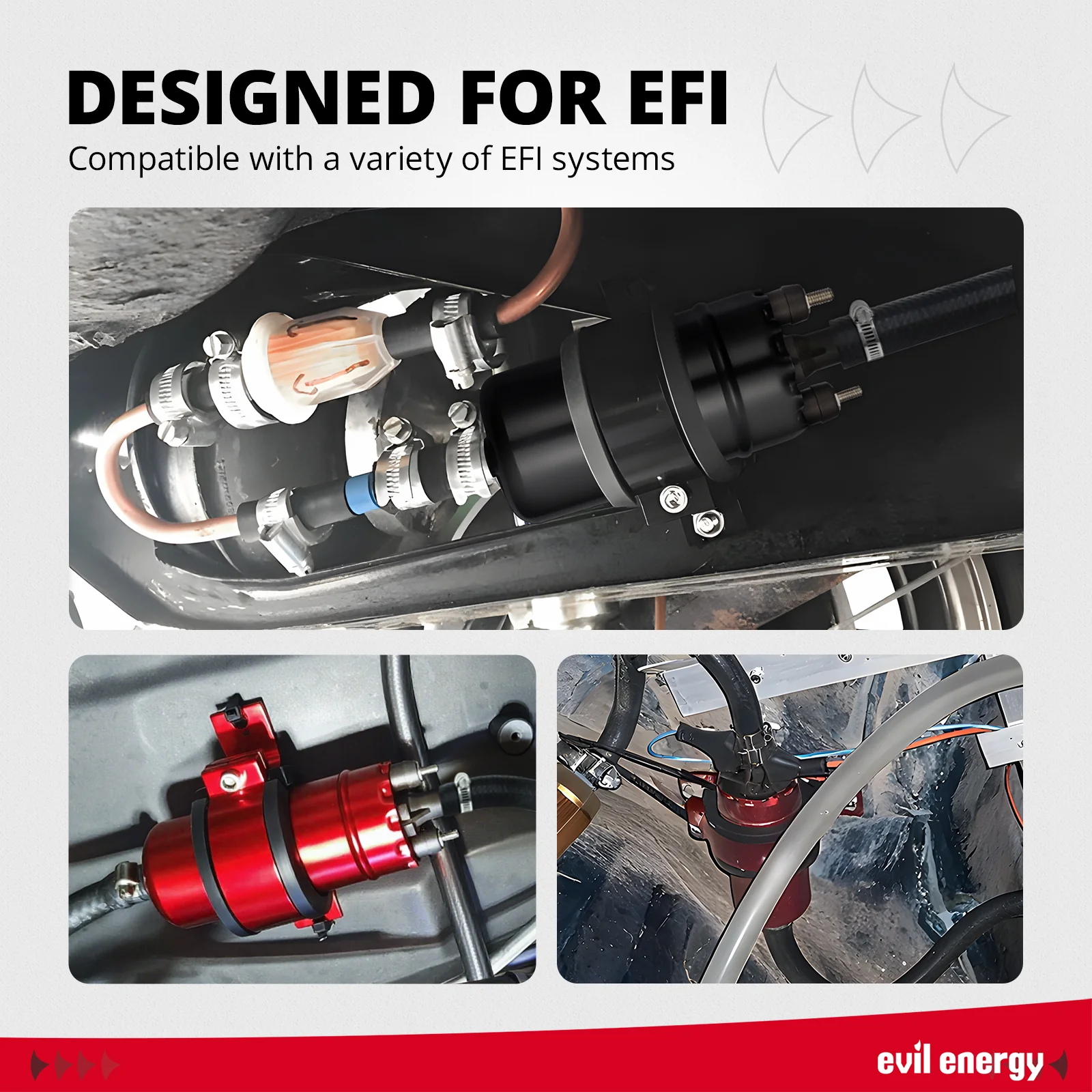

Applicable Vehicle Models	Suitable for EFI systems

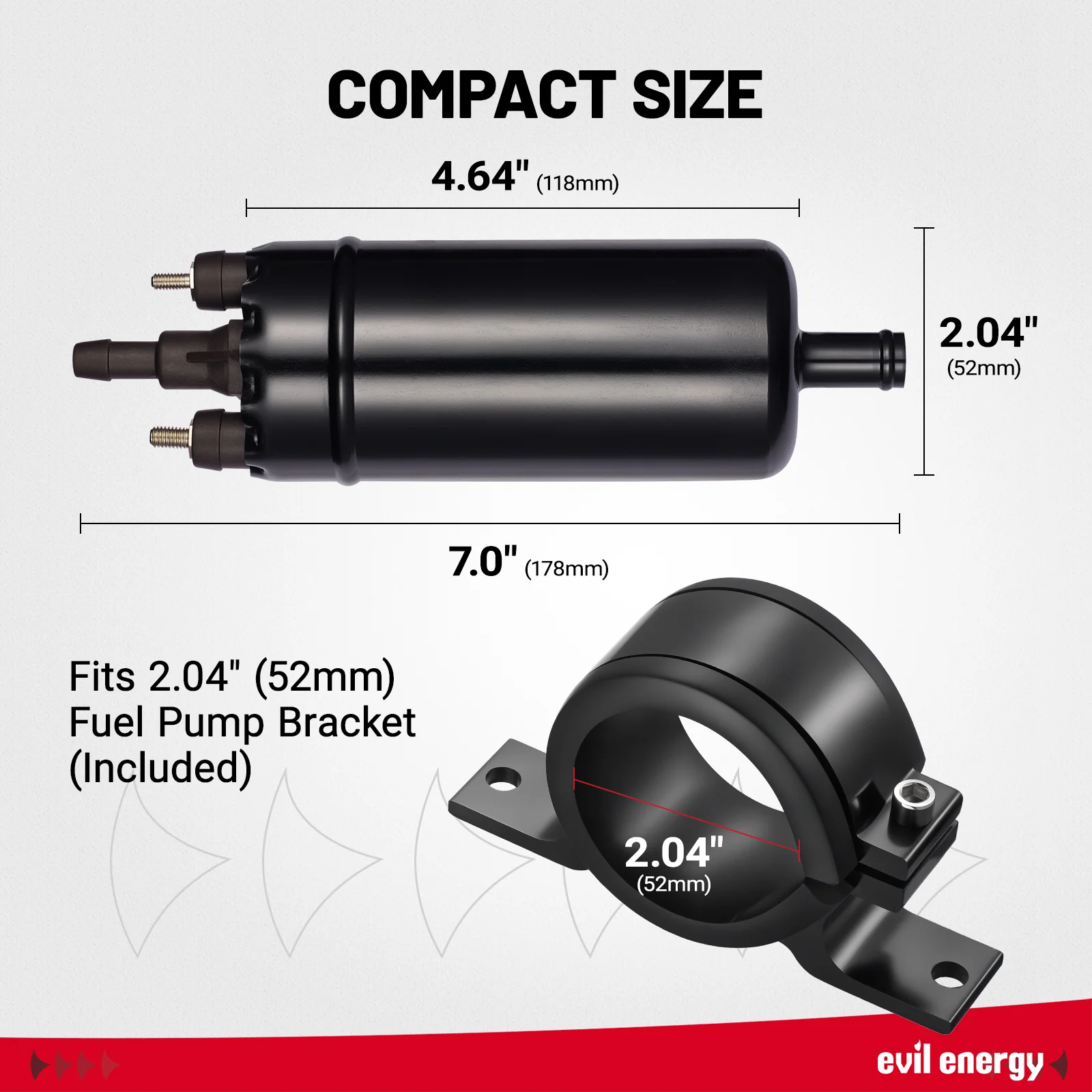

Package Details	1*external fuel pump 1*50mm red fuel pump bracket 2*Rubber connection caps 2*Insulated terminals 2*Nuts 2*Washers

---!@!start!@!---Description---!@!end!@!---

High-Performance 12V Electric Fuel Pump for EFI Systems

Upgrade your vehicle's performance with the EVIL ENERGY 12V electric fuel pump for EFI, a premium inline fuel pump engineered for those seeking a reliable 255 LPH fuel pump standard with a peak reach of 300 LPH. This external gear-type electric fuel pump is the ultimate solution for stable fuel delivery in high-demand environments.

As a high-efficiency electric fuel pump, it features a robust aluminum construction, ensuring durability across extreme temperatures from -68°F to 194°F. Whether you are performing an EFI upgrade or a custom engine modification, this Evil Energy fuel pump delivers the precise fuel control required for modern gasoline systems and diesel applications.

Designed as a universal EFI conversion fuel pump, it simplifies installation with a 5/16-inch inlet and 3/8-inch outlet. This direct hose connection fuel pump design eliminates the need for extra fittings, effectively minimizing leaks and saving space in tight engine bays. With a 150 PSI closed pressure rating, this 12V electric fuel pump ensures your engine never starves for fuel under load.

Technical Specifications & Performance

• Core Design: External gear-type electric fuel pump for easy mounting (no in-tank hassle).
• Flow Performance: Max flow 300 LPH (at 43 PSI & 13.5V); Standard flow 255 LPH (at 43 PSI & 12V).
• Pressure Rating: Supports up to 150 PSI closed pressure for high-pressure EFI consistency.
• Power Specs: Operates on 12–13.5V DC; Current 5.0-12.3A; Rated at 168W.
• Fluid Compatibility: Optimized for gasoline systems; also compatible with diesel (filter recommended).
• Built to Last: Corrosion-resistant aluminum construction for long-term reliable performance.
